Viewing Tab Position (Diesel Only)

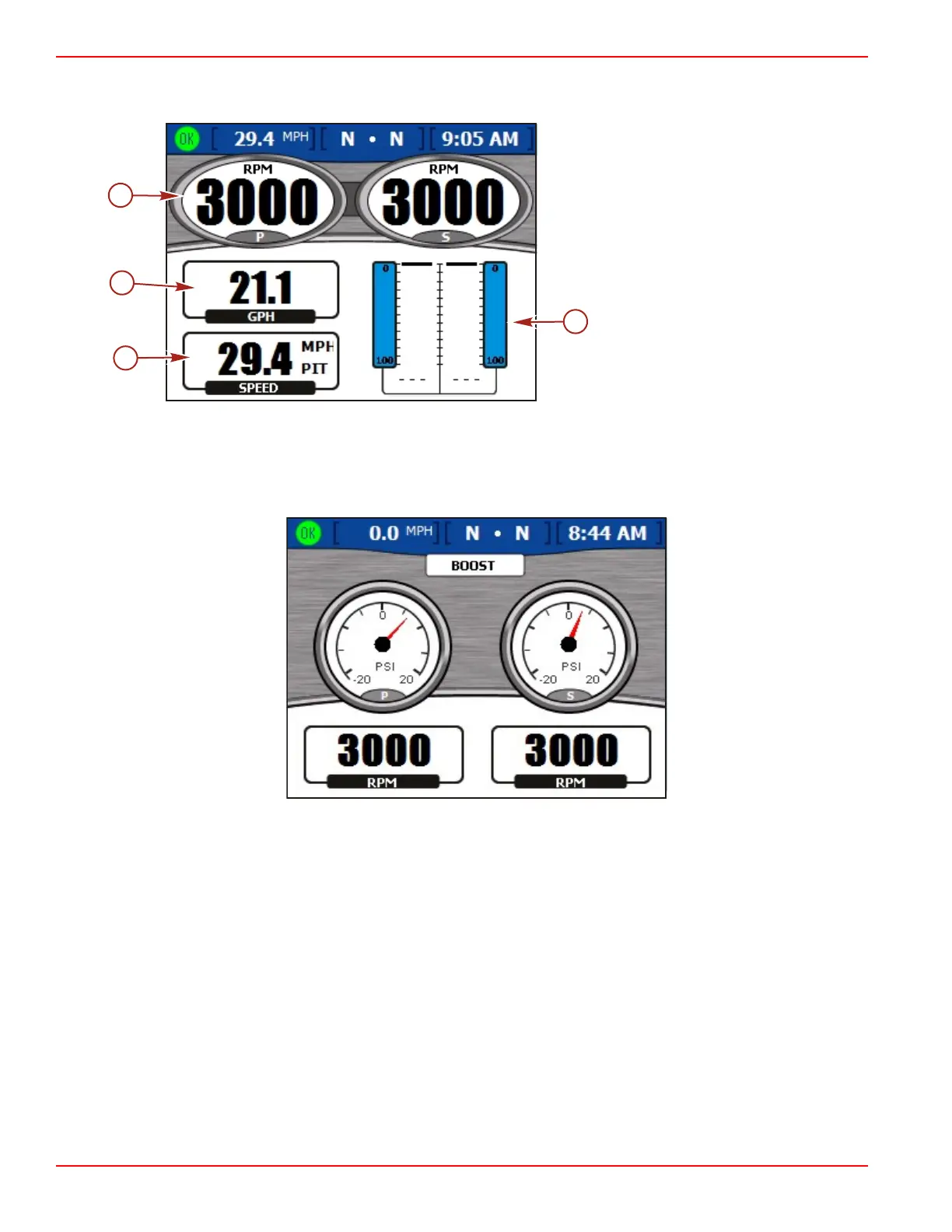

The tab screen displays the engines RPM, fuel consumption per hour, speed, and the position of the tabs.
a - Engine RPM
b - Fuel flow rate
c - Speed
d - Current tab position
• RPM is displayed for up to three gas engines or two diesel engines.
• The tab position is 0 when trimmed all the way up, and 100 when trimmed all the way down.
Viewing Boost Pressure (Optional)
The "BOOST" screen displays boost pressure and engine RPM.
27247
• RPM and boost is displayed for up to three gas engines or two diesel engines.
• On a single engine display, speed is displayed using pitot, paddle, or GPS sensor information.
34267
c
d
a
b
34330

Mercury VesselView Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Supply	12V DC
Waterproof Rating	IPX7
Connectivity	NMEA 2000, Bluetooth
GPS	Yes
Alarms	Yes
Resolution	800 x 480 pixels
Mounting Type	Flush mount
Data Displayed	Engine data, fuel usage, GPS
