Mercury VesselView User Manual

Section 3 - Screen Overview and Operation
Page 38 90-8M0070299 eng MAY 2012

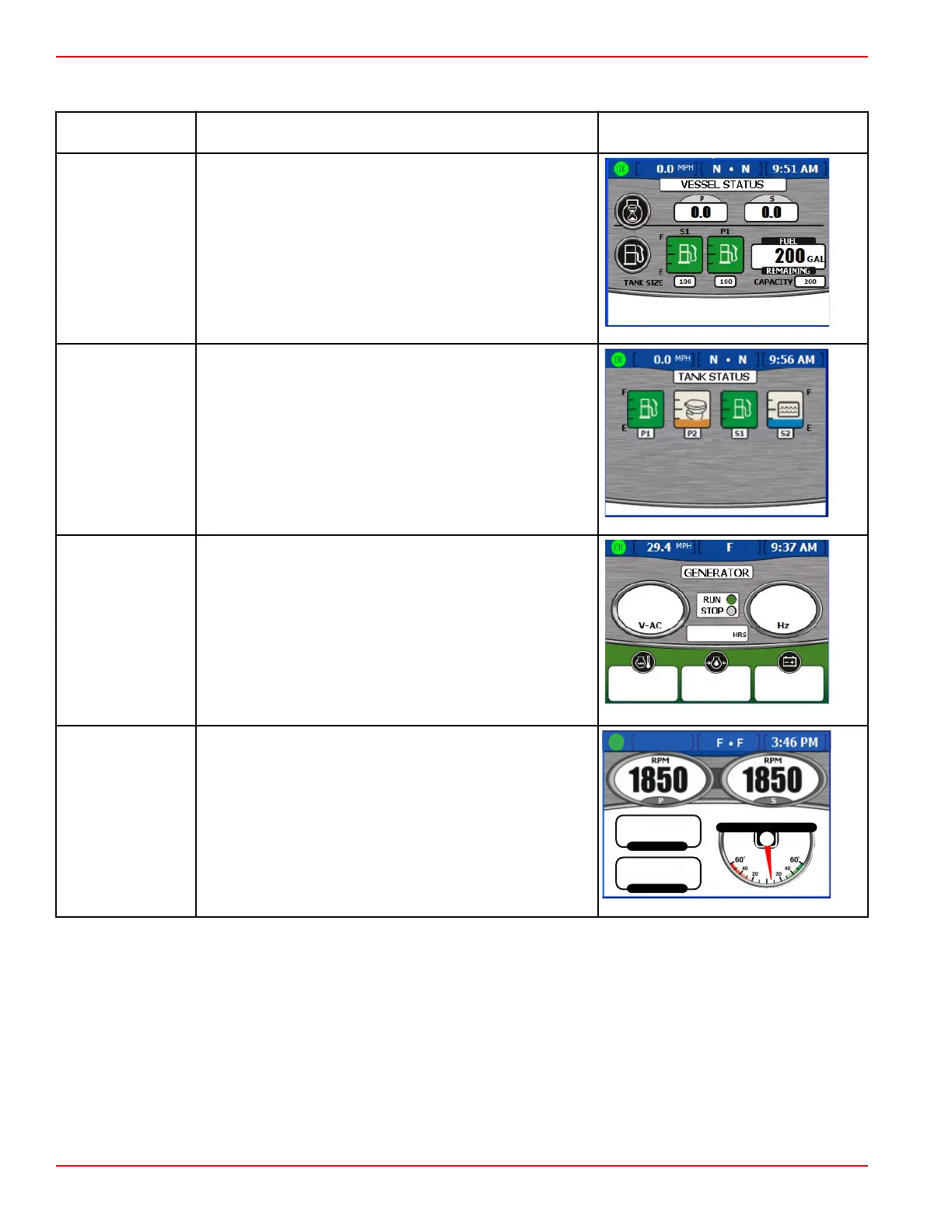

Vessel
Screen Display
Name
Description Screen
Vessel Status
Displays fuel tank levels with total fuel remaining.
27114
Tank Status
Displays all tank levels and location.
27113
Generator
Displays a group of various generator data.
NOTE: The generator must be capable of SmartCraft protocol
language for this display to function.
120
60
140
8.7
12.4
F PSI
V
o
27217
Steering Position
Displays steering position, gear position, speed over ground,
bearing to waypoint, water depth, and boat speed.
MPH
SOG
23.5
STEERING ANGLE
DEPTH
SPEED
22.9
MPH
GPS
10.4
45177
FT

Mercury VesselView Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Supply	12V DC
Waterproof Rating	IPX7
Connectivity	NMEA 2000, Bluetooth
GPS	Yes
Alarms	Yes
Resolution	800 x 480 pixels
Mounting Type	Flush mount
Data Displayed	Engine data, fuel usage, GPS
