Mercury VesselView User Manual

Section 4 - Main Menu
Page 64 90-8M0070299 eng MAY 2012
Units

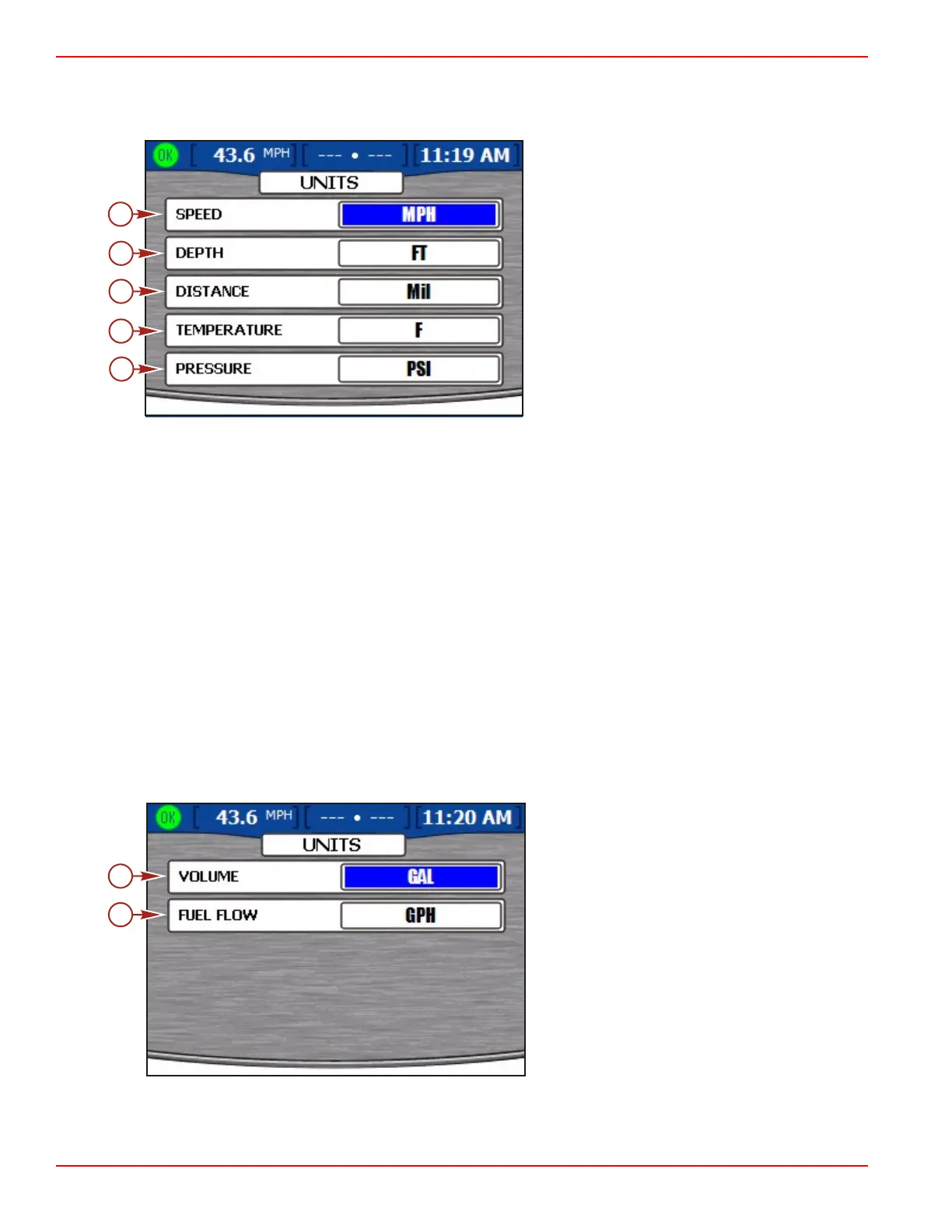

The "UNITS" screen enables you to set the units of measure for speed, depth, distance, temperature, and pressure. The menu
path is: "Main" > "Settings" > "Units." Press the check button to open the "UNITS" screen.
a - Speed
b - Depth
c - Distance
d - Temperature
e - Pressure
1. Upon entering the "UNITS" screen, the "SPEED" option will be highlighted in blue.
2. Press the left or right arrow on the arrow pad to select speed units of "MPH," "KMH," or "Knots."
3. Press the down arrow on the arrow pad to proceed to the "DEPTH" option.
4. Press the left or right arrow on the arrow pad to select depth units of "FT," "FTM," or "Met."
5. Press the down arrow on the arrow pad to proceed to the "DISTANCE" option.
6. Press the left or right arrow on the arrow pad to select distance units of "Mil," "KM," or "NM."
7. Press the down arrow on the arrow pad to proceed to the "TEMPERATURE" option.
8. Press the left or right arrow on the arrow pad to select temperature units of "F" or "C."
9. Press the down arrow on the arrow pad to proceed to the "PRESSURE" option.
10. Press the left or right arrow on the arrow pad to select pressure units of "PSI," "BAR," or "KPA."
11. Once you have finished selecting your units of measure, press the check button to save the session.
NOTE: After any change or customization to the VesselView configuration, a blue pop‑up message will appear as a reminder to
save the session. It is recommended that all session changes be saved before holding the " X " button while keying all engines
off. Refer to
Section 1 ‑ Saving the Settings .
Units 2
The "Units 2" menu option is a continuation of the "UNITS" screen. "Units 2" enables you to set units of measure for volume
and fuel flow. The menu path is: "Main" > "Settings" > "Units 2." Press the check button to open the "UNITS" screen.
a - Volume
b - Fuel Flow
1. Upon entering the "UNITS" screen, the "VOLUME" option will be highlighted in blue.
2. Press the left or right arrow on the arrow pad to select volume units of "GAL," "LIT," or "IGL."
a
b
c
d
e
27317
a
b
27319

Mercury VesselView Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Supply	12V DC
Waterproof Rating	IPX7
Connectivity	NMEA 2000, Bluetooth
GPS	Yes
Alarms	Yes
Resolution	800 x 480 pixels
Mounting Type	Flush mount
Data Displayed	Engine data, fuel usage, GPS
