Mercury VesselView User Manual

Section 3 - Screen Overview and Operation
90-8M0070299 eng MAY 2012 Page 47

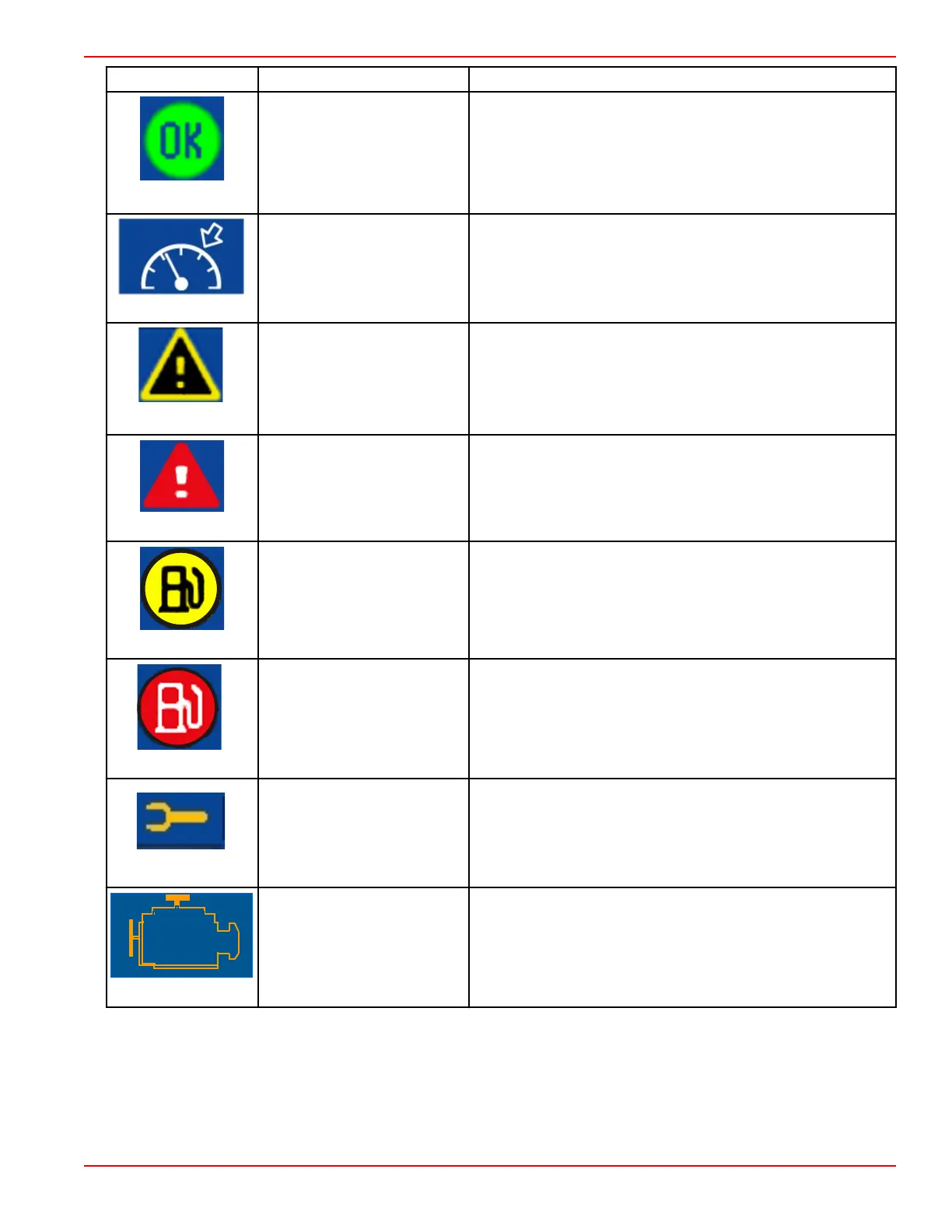

Icon or Message Icon Description Warning Description
26889
Blue "OK" inside a green circle. All systems are operating normally.
34278
A blue background with a white
speedometer and a white
arrow.
Cruise control is engaged.
26890
Yellow "!" on a black
background in a yellow triangle.
Warning ‑ A fault has occurred.
26891
White "!" inside a red triangle. Alarm ‑ A fault has occurred and has activated Engine Guardian.
26892
Black fuel pump on a yellow
background inside a black
circle.
Fuel Level Low
(The warning pop‑up will appear to acknowledge the critical fuel
level. The warning pop‑up can be turned off, but the status bar
icon and message will always appear.)
26893
White fuel pump on a red
background inside a black
circle.
Fuel Level Critical
(A warning horn will begin and the warning pop‑up will appear to
acknowledge the critical fuel level. The audible alarm and the
warning pop‑up can both be turned off, but the status bar icon and
message will always appear.)
47859
Icon of a wrench on a blue
background.
Maintenance Required
Power packages capable of determining the life of the engine oil
will have a maintenance screen. The maintenance screen displays
the percent of life that remains in the engine oil. The life of the oil is
estimated by the engine ECM/PCM. The RPM and load on the
engine will affect how quickly the engine oil life changes.
s
47879
Icon of an engine on a blue
background.
Emission Control Alarm
When a problem is detected with the emission control system, an
engine icon in the upper left‑hand corner will be displayed on the
screen and the audible alarm will be turned on. The center of the
engine icon will indicate the fault engine location.
Fuel Alarms
IMPORTANT: A fuel fault alarm will only occur if all the fuel tanks connected to VesselView are low with fuel. If only one fuel
tank is low, the system will not identify a fault. The system looks at all tanks defined as fuel and adds them all together into a
single sum. The alarms are based off of the sum of all fuel tanks.

Mercury VesselView Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Supply	12V DC
Waterproof Rating	IPX7
Connectivity	NMEA 2000, Bluetooth
GPS	Yes
Alarms	Yes
Resolution	800 x 480 pixels
Mounting Type	Flush mount
Data Displayed	Engine data, fuel usage, GPS
