Section 4 - Main Menu
90-8M0070299 eng MAY 2012 Page 69

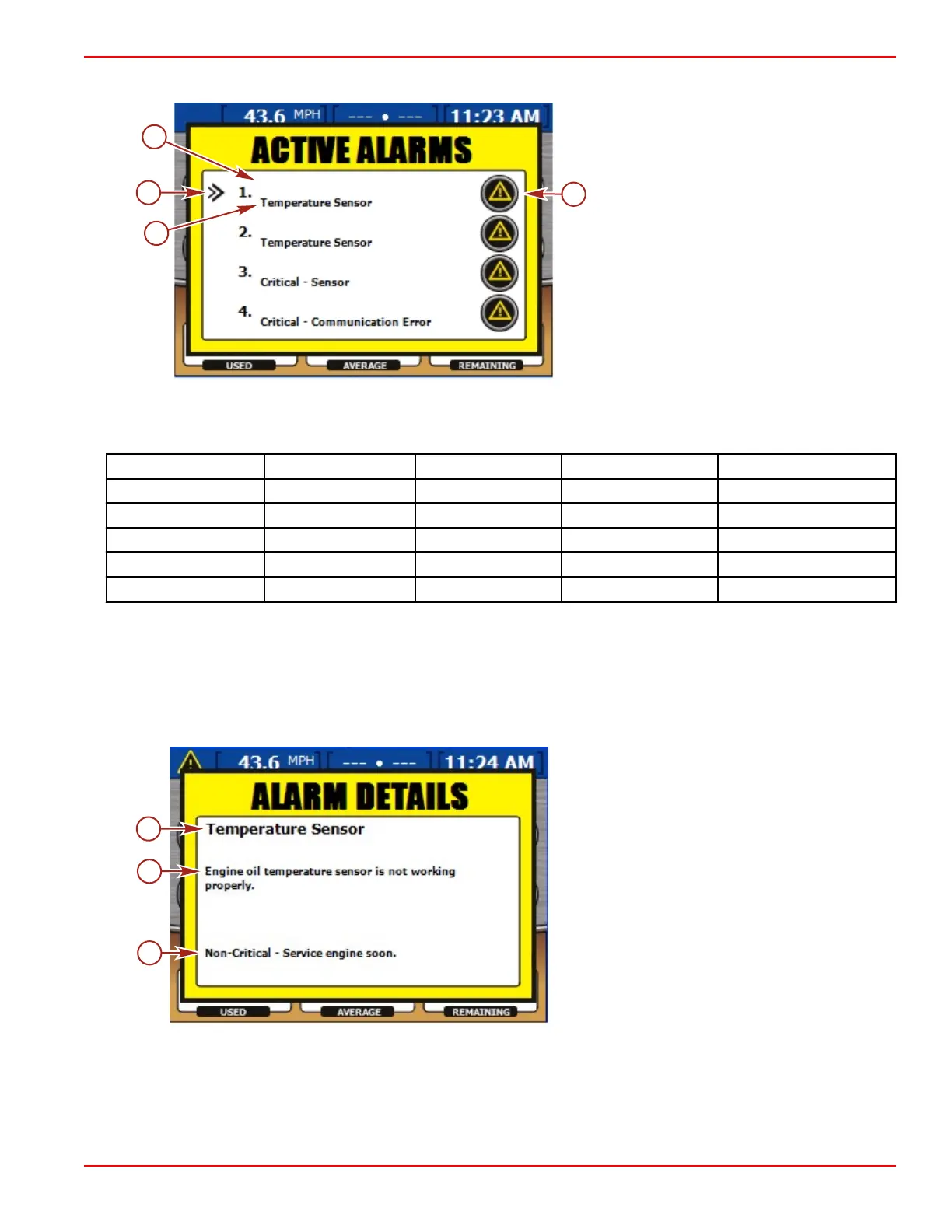

• Press the check button to open the "ACTIVE ALARMS" screen.
a - Engine identification
b - Arrow cursor
c - Fault short text
d - Fault icon
The "ACTIVE ALARMS" screen will display alarms for up to four engines. All alarms will be listed and numbered. Each
numbered alarm will list which engine is activating the fault. Each fault will be identified as "STBD," "PORT," "STBDCNTR," or
"PORTCNTR" depending on the number of engines. Follow the chart listed to identify the fault with the correct engine.
Single Engine
Dual Engines Triple Engines Quad Engines
"STBD"
Starboard Starboard Starboard Starboard
"PORT"
N/A Port Port Port
"CENTER"
N/A N/A Center N/A
"STBDCNTR"
N/A N/A N/A Starboard center
"PORTCNTR"
N/A N/A N/A Port center
Below the engine identification there will be short text to describe the fault. Details of the fault can be viewed in the "ALARM
DETAILS" screen.
Viewing Alarm Details
1. To the left of the first alarm listed in the "ALARM DETAILS" screen there will be an arrow cursor. Press the up or down
arrow on the arrow pad to highlight an alarm.
2. Press the check button to view the respective alarm history in the "ALARM DETAILS" screen.
a - Fault short text
b - Fault long text
c - Action text
The "ALARM DETAILS" screen will list the details of the alarm.
• The short text defining the alarm will be listed at the top of the screen.
• The long text, listed below the short text, further clarifies the alarm.
• The action text, listed at the bottom of the screen, instructs the operator on how to handle the alarm.
