Section 3 - Screen Overview and Operation
90-8M0070299 eng MAY 2012 Page 35
NOTE: Your owner's manual maintenance schedule should be followed regardless of what the gauge displays.
OK
STARBOARD ENGINE
OK
OK
Scheduled Maintenance
General Maintenance
50414

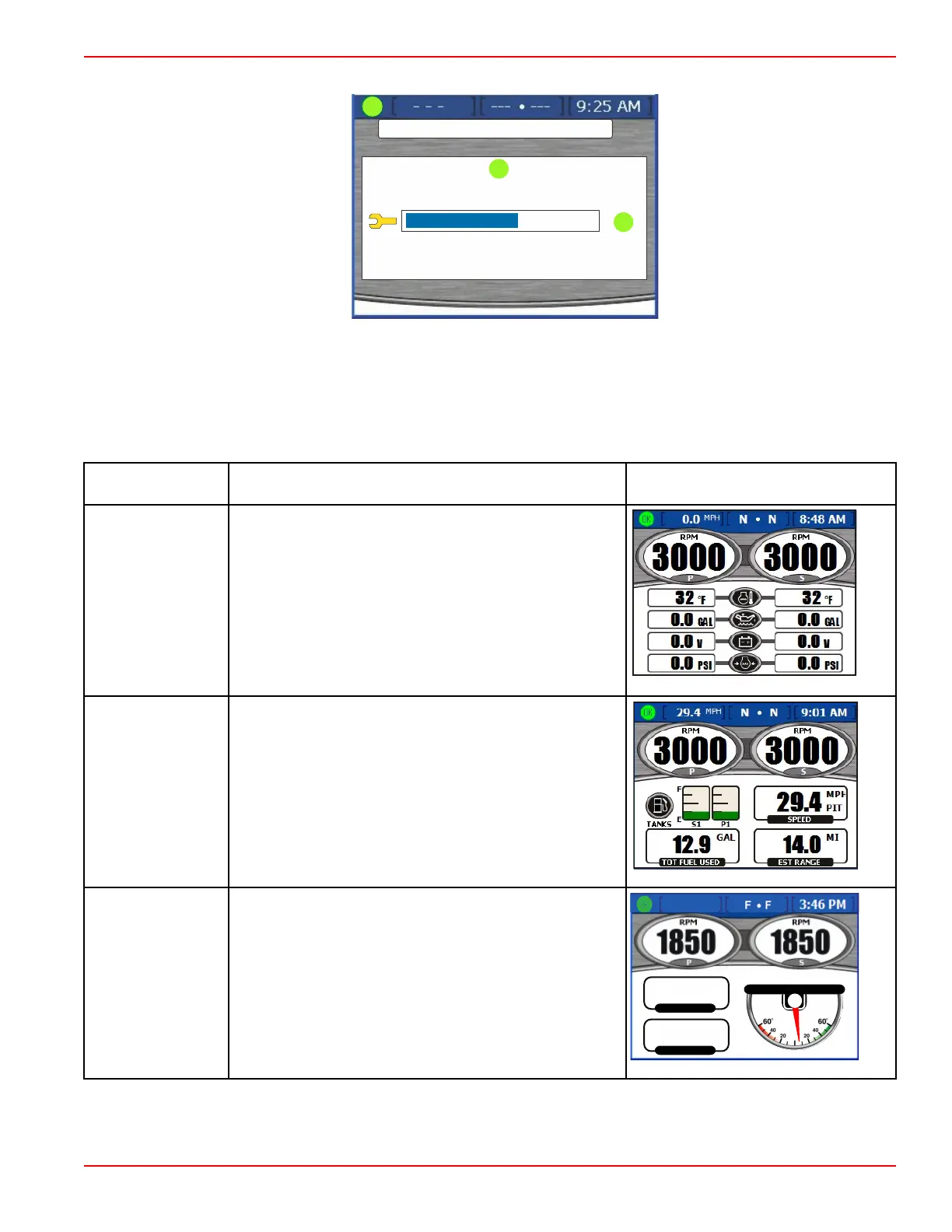

VesselView Display Screens
NOTE: The screens listed in the following charts may vary depending on engine type and number of engines. Refer to
Available VesselView Display Screens
.
Propulsion
Screen Display
Name
Description Screen
Engine Status
Displays engine RPM and shows various engine data
depending on the engine type.
Performance and
Fuel
Displays engine RPM, speed, fuel tank levels, total fuel used,
and estimated fuel range.
Steering Position
Displays steering position, gear position, speed over ground,
bearing to waypoint, water depth, and boat speed.
MPH
SOG
23.5
STEERING ANGLE
DEPTH
SPEED
22.9
MPH
GPS
10.4
45177
FT
To Next Page
