Mercury VesselView - Viewing Tab Position (Diesel Only)

Section 5 - Propulsion Menu
Page 76 90-8M0070299 eng MAY 2012
Using Propulsion Screens
Available Propulsion Screens
IMPORTANT: The available VesselView menu items and options are dependent on the engine type, and if screens have been
manually turned on or off.
The propulsion screens display information about boat propulsion systems such as fuel, speed, and trim. Screens available
from the propulsion menu vary according to the engine type, but may include the following:
• Engine Status
• Performance and Fuel
• Peak Performance
• Trim
• Tabs
• Boost
• Steering
• Troll
• Cruise Control
• Smart Tow
• Demand and Load
• Transmission
• Intake
Viewing Engine Status

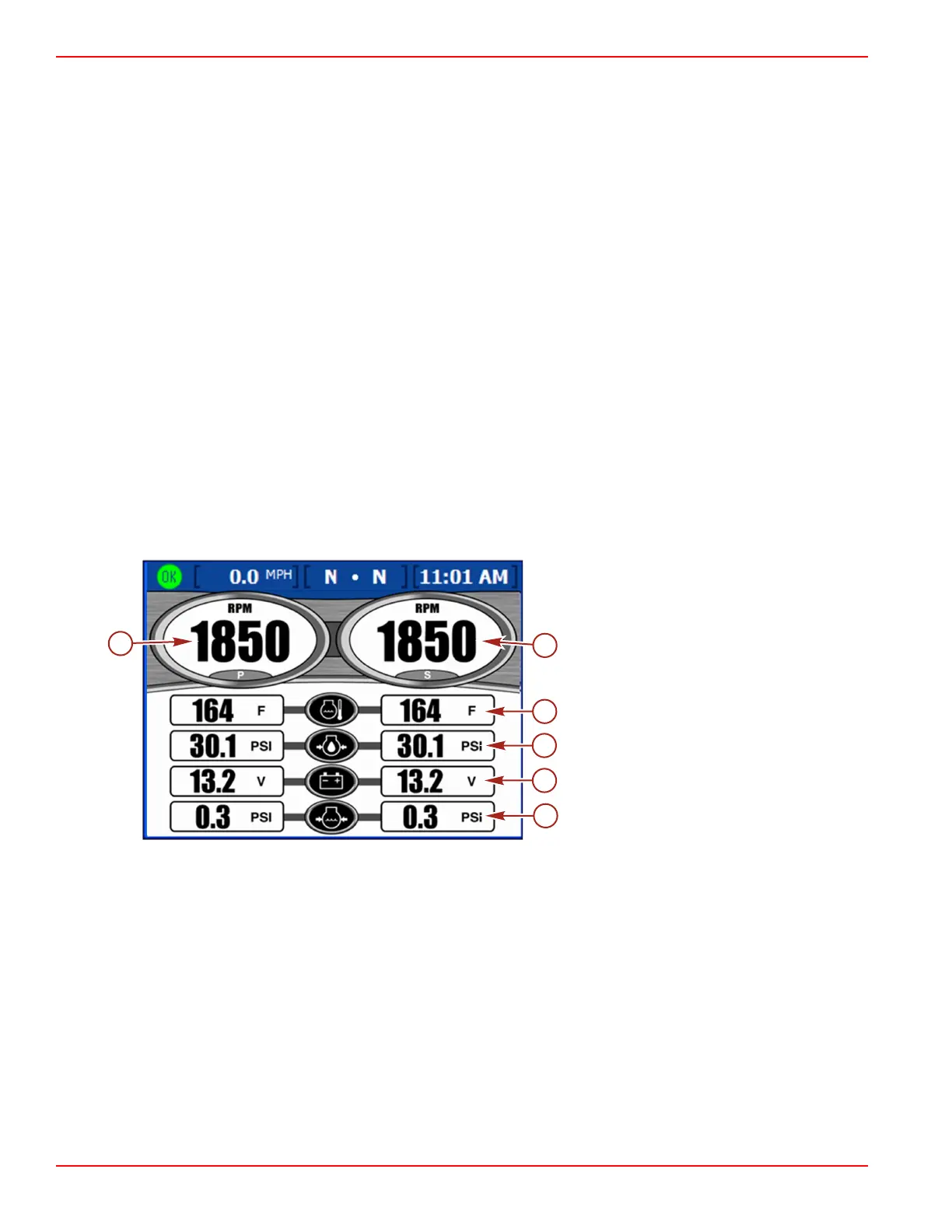

The engine status screen shows basic operating information for up to three engines. The information displayed differs for each
engine type.
a - Port engine RPM
b - Starboard engine RPM
c - Engine temperature
d - Oil pressure
e - Battery voltage
f - Water pressure
• RPM is displayed for up to three gas or diesel engines.
• Speed is displayed using pitot, paddle, or GPS sensor information.
• Diesel engines will display fuel flow instead of water pressure.
• Estimated range is determined using the total fuel flow for all engines and the current rate at which the engines are
consuming fuel.
• Total fuel used is the amount of fuel used from all fuel tanks and engines combined.
