Section 5 - Propulsion Menu
90-8M0070299 eng MAY 2012 Page 77
Viewing Performance and Fuel

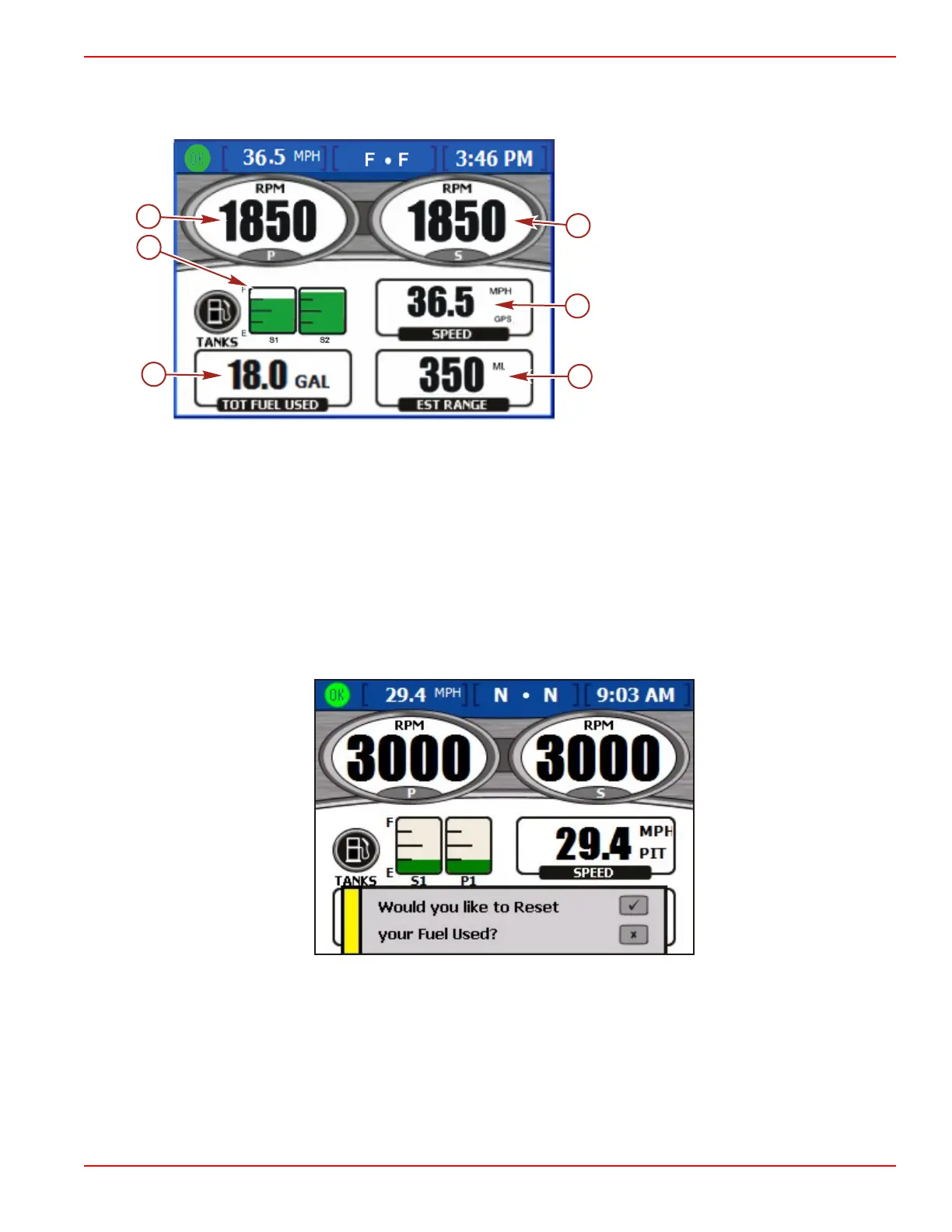

The performance and fuel screen shows basic operating information for up to four engines. The fourth engine allows for an
additional fuel tank display.
a - Port engine RPM
b - Starboard engine RPM
c - Boat speed
d - Estimated range
e - Total fuel used
f - Fuel tank status
RPM is displayed for up to three gas or diesel engines.
Speed is displayed using pitot, paddle, or GPS sensor information.
Estimated range is determined using the total fuel flow for all engines and the current rate at which the engines are
consuming fuel.
Total fuel used is the amount of fuel used from all fuel tanks and engines combined.
The fuel tank status icons display the amount and type of fuel in each tank, as well as the location of each tank.
The fuel tank color will change from green to red if the tank is below the critical level. Refer to Section 4 Warnings for
critical fuel level adjustment.
Resetting Total Fuel Used
1. Press the check button while on this screen to access the "Total Fuel Used" pop‑up screen. The pop‑up will ask you
"Would you like to Reset your Fuel Used?"
27265
Fuel used pop-up screen
2.
Press the check button to reset the total fuel used or the "X" button to cancel.
26885
a
b
c
d
e
f
