Mercury VesselView User Manual

Section 6 - Vessel Menu
Page 90 90-8M0070299 eng MAY 2012

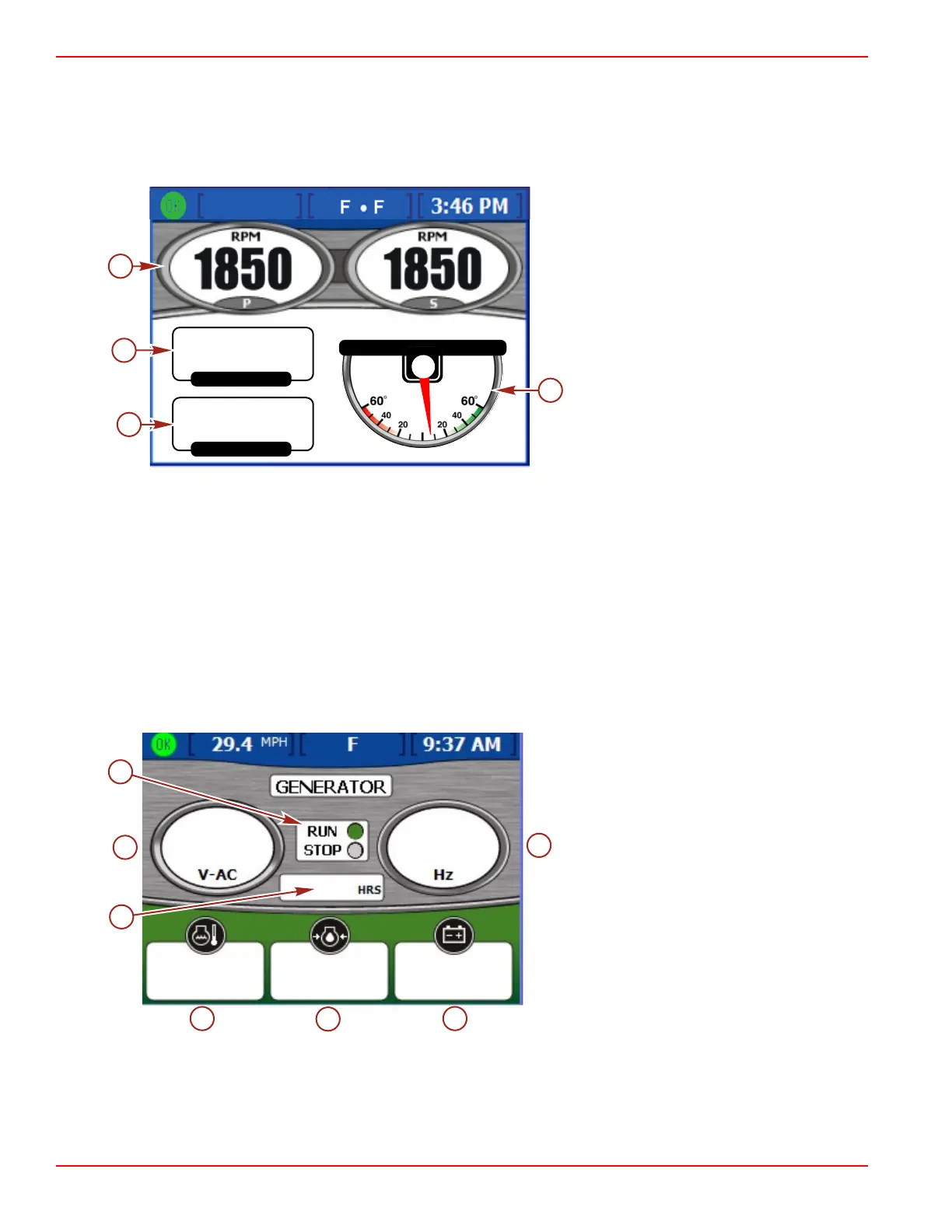

Viewing Steering Position (MerCruiser Only)
The "STEERING POSITION" screen displays the current steering position in degrees. The default steering position can be
adjusted 60 degrees in either direction by changing the offset. The data options on the bottom of the screen can be changed to
display different data. Refer to Section 4 ‑ Settings for more information.
NOTE: Zeus and Axius drive applications show the steering angle needle from the drive with the most angle.
a - RPM
b - Depth
c - Vessel speed
d - Steering angle
NOTE: To invert the steering position, use the "INVERT STEERING" option on the "Preferences" screen in the "Settings"
menu.
• The steering position is displayed in degrees.
• Water depth and boat speed are displayed below the steering position by default. You can choose to display boat speed,
water depth, gear position, speed over ground ("SOG"), or bearing to waypoint ("BTW"). Environment variables are only
available for display on vessels equipped with these SmartCraft sensors.
Viewing Generator Data
VesselView displays operating information for your SmartCraft‑enabled Onan or Kohler generator on the "GENERATOR"
screen.
NOTE: The generator must be capable of SmartCraft protocol language for this display to function. If the generator is not
SmartCraft supported, you can turn the generator display off . The menu path is: "Main" > "Settings" > "Screen Options" >
"Pages On/Off" > "Vessel."
a - Generator output voltage (120 V or 240 V)
b - Generator run hours
c - Output frequency (Hz)
d - Generator engine oil temperature
e - Oil pressure
f - Generator cranking battery voltage
g - Run indicator
• The generator manufacturer's name is automatically displayed at the top of the screen.
• If the generator is running, a green indicator appears next to "RUN." Otherwise, a red indicator appears next to "STOP."
• The run time displays the running time of the generator to the tenth of an hour up to 999.9 hours, then in whole hours to
99,999 hours.
MPH
SOG
23.5
STEERING ANGLE
DEPTH
SPEED
22.9
GPS
10.4
45176
a
b
c
d
FT
MPH
120
60
140
8.7
12.4
F PSI
V
o
a
b
c
d
e
f
5.0
27275
g

Mercury VesselView Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Supply	12V DC
Waterproof Rating	IPX7
Connectivity	NMEA 2000, Bluetooth
GPS	Yes
Alarms	Yes
Resolution	800 x 480 pixels
Mounting Type	Flush mount
Data Displayed	Engine data, fuel usage, GPS
