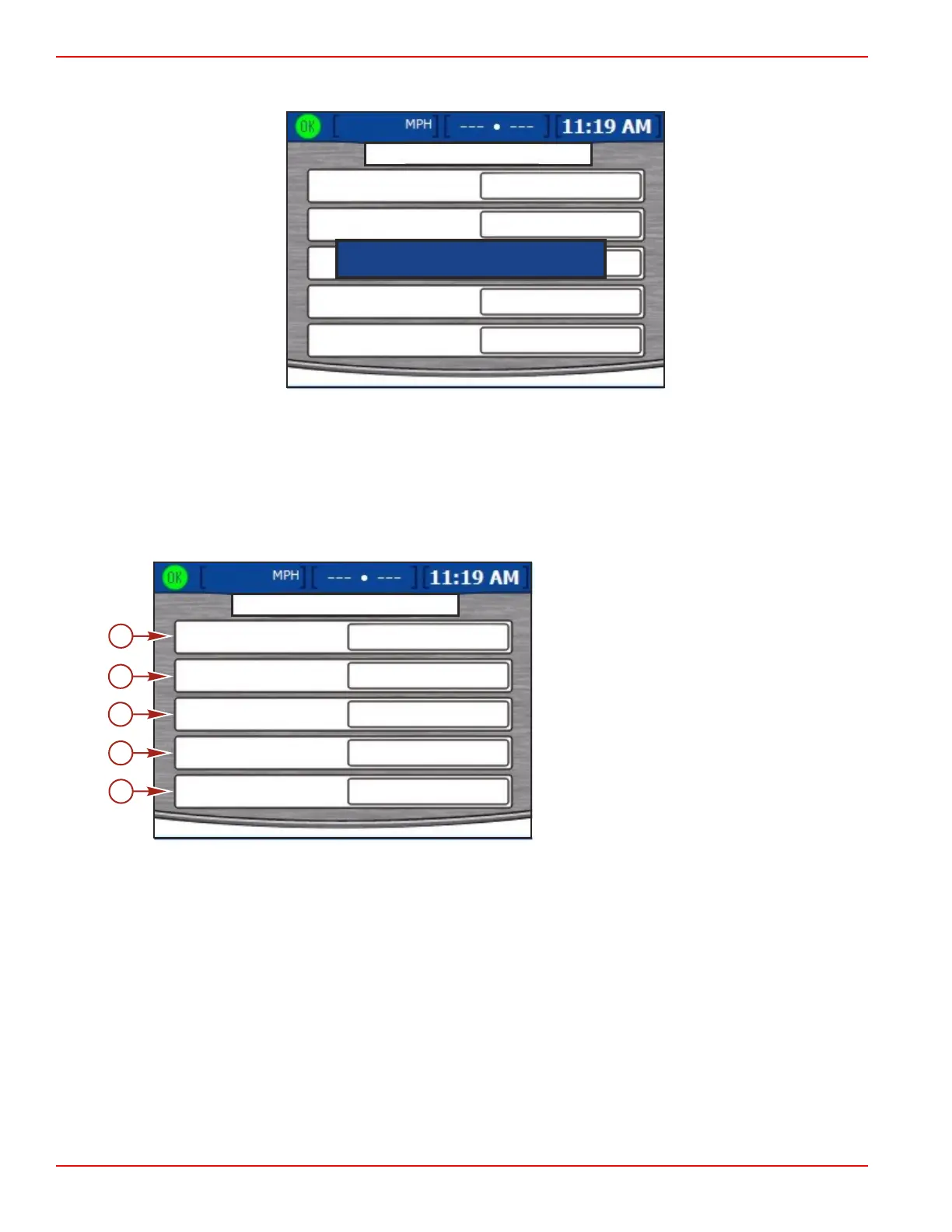

1. Once in the "SAVE CONFIGURATION" screen, a blue pop‑up screen displays the words "PLEASE INSERT USB
MEMORY STICK."
SAVE CONFIGURATION
TANK CONFIG
TRIM CONFIG
DEPTH CONFIGS
UNITS/APP PREF
STEERING
EXPORT
EXPORT
EXPORT
EXPORT
EXPORT
PLEASE INSERT USB MEMORY STICK
27230
2.
Insert a USB memory stick into the USB port on the back of the VesselView. Refer to Setup Wizard—Import
Configuration (Optional) for an illustration showing the USB port.
IMPORTANT: Do not remove the USB memory stick until the export process is complete.
3. When the VesselView detects the memory stick, the blue pop‑up screen will disappear; this may take several seconds.
4. The screen shows all the categories which will be exported. It is not possible to select only one or two specific
configurations when exporting information. All of the files in the list will always be exported. Press the check button to
initiate the export.
a - Tank configuration
b - Trim configuration
c - Steering
d - Depth configuration
e - Units and application preferences
SAVE CONFIGURATION
TANK CONFIG
TRIM CONFIG
DEPTH CONFIGS
UNITS/APP PREF
STEERING
EXPORT
EXPORT
EXPORT
EXPORT
EXPORT
a
b
c
d
e
27297
