50 Handling of Consumables
_________________________________________________________________________________________
_________________________________________________________________________________________
Microplex logiJET TC8 Edition 1.2
13. Fit the lower end of the supply mandrel to the gearwheel of
the ribbon drive mechanism.

Take care about the right winding direction for your ribbon roll.
14. Click the upper end of the supply mandrel into the
correspending mounting bracket of the printhead assembly.

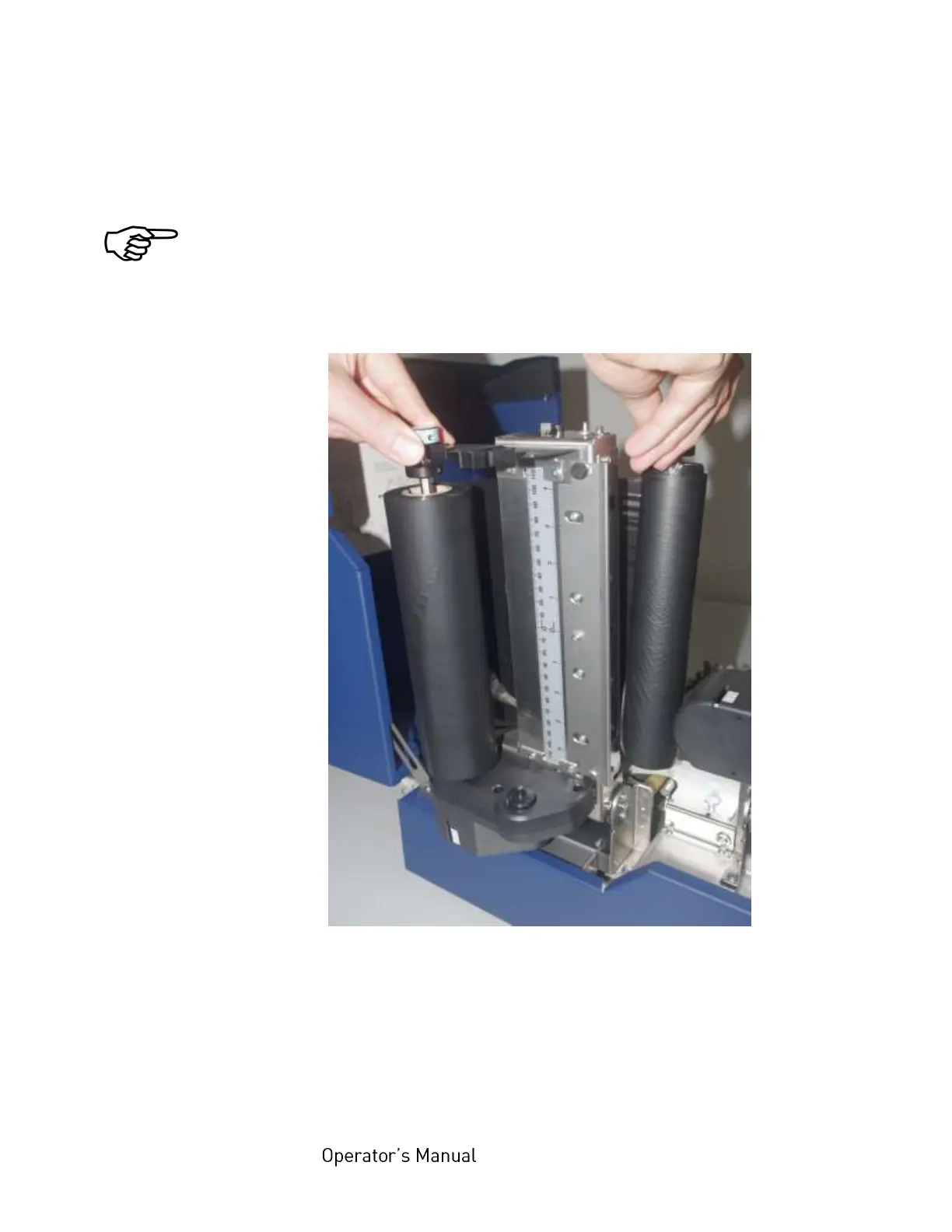

Fig. 5.2.2.h Clicking the supply mandrel onto the printhead assembly
15. Fit the lower end of the takeup mandrel to the gearwheel of
the ribbon drive mechanism.
16. Click the upper end of the takeup mandrel into the correspending
mounting bracket of the printhead assembly. (See following figure).






