QX-830 Compact Industrial Scanner User’s Manual 5-69
Scanner Parameters

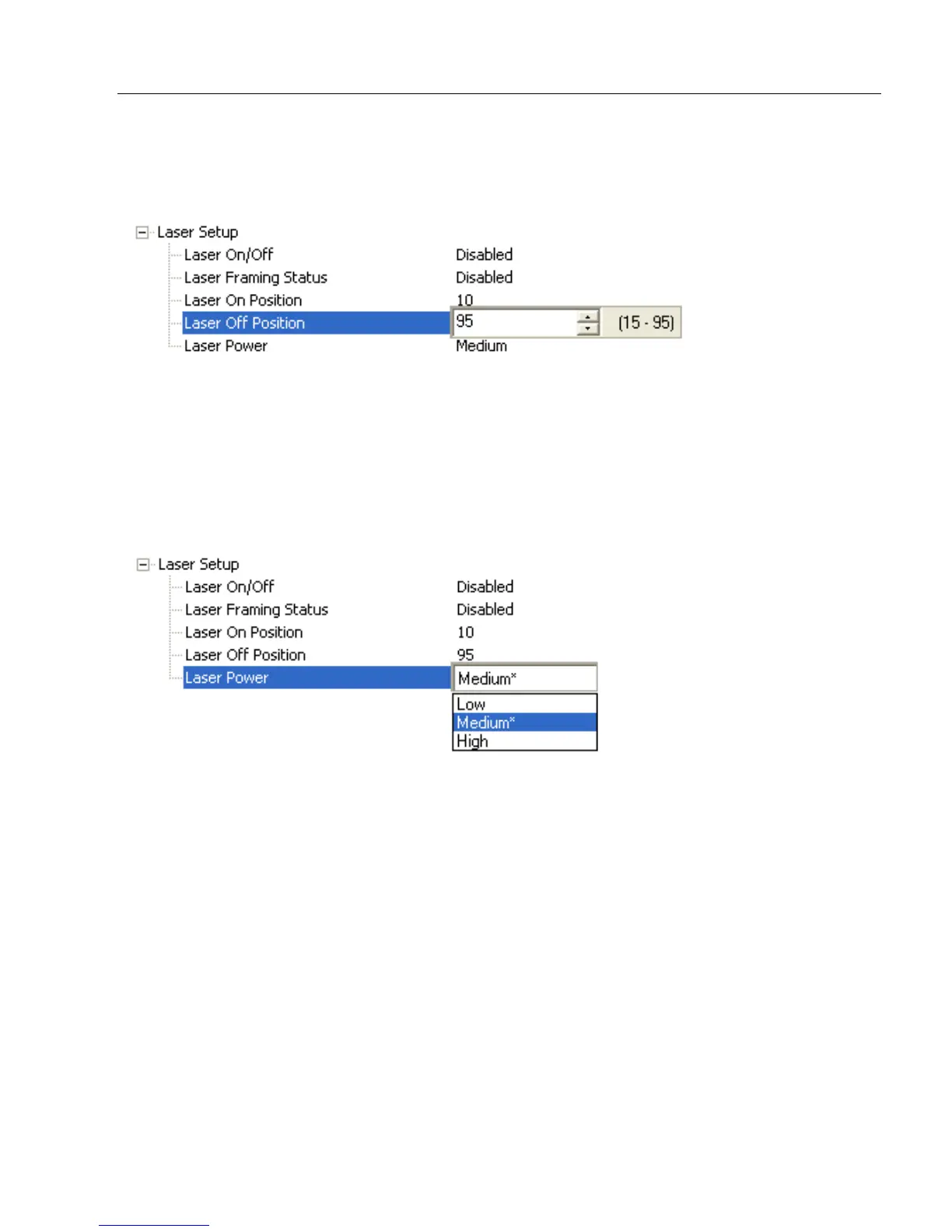

Laser Off Position
The duration of Laser On time. Laser Off Position is a ratio of the total scan width, with
increments equal to 1/100th of the total scan width.
Laser Power
Allows the user to select the Laser Power setting as follows:
Low: Laser Power = ~0.6mW. Typically only needed for decoding high density symbols
located close to the scanner.
Medium: Laser Power = ~1.0mW.
High: Laser Power = ~1.5mW. Typically used for decoding lower density symbols located
far from the scanner.
