A-2 QX-830 Compact Industrial Scanner User’s Manual
General Specifications
Appendix A — General Specifications
QX-830 Compact Industrial Scanner

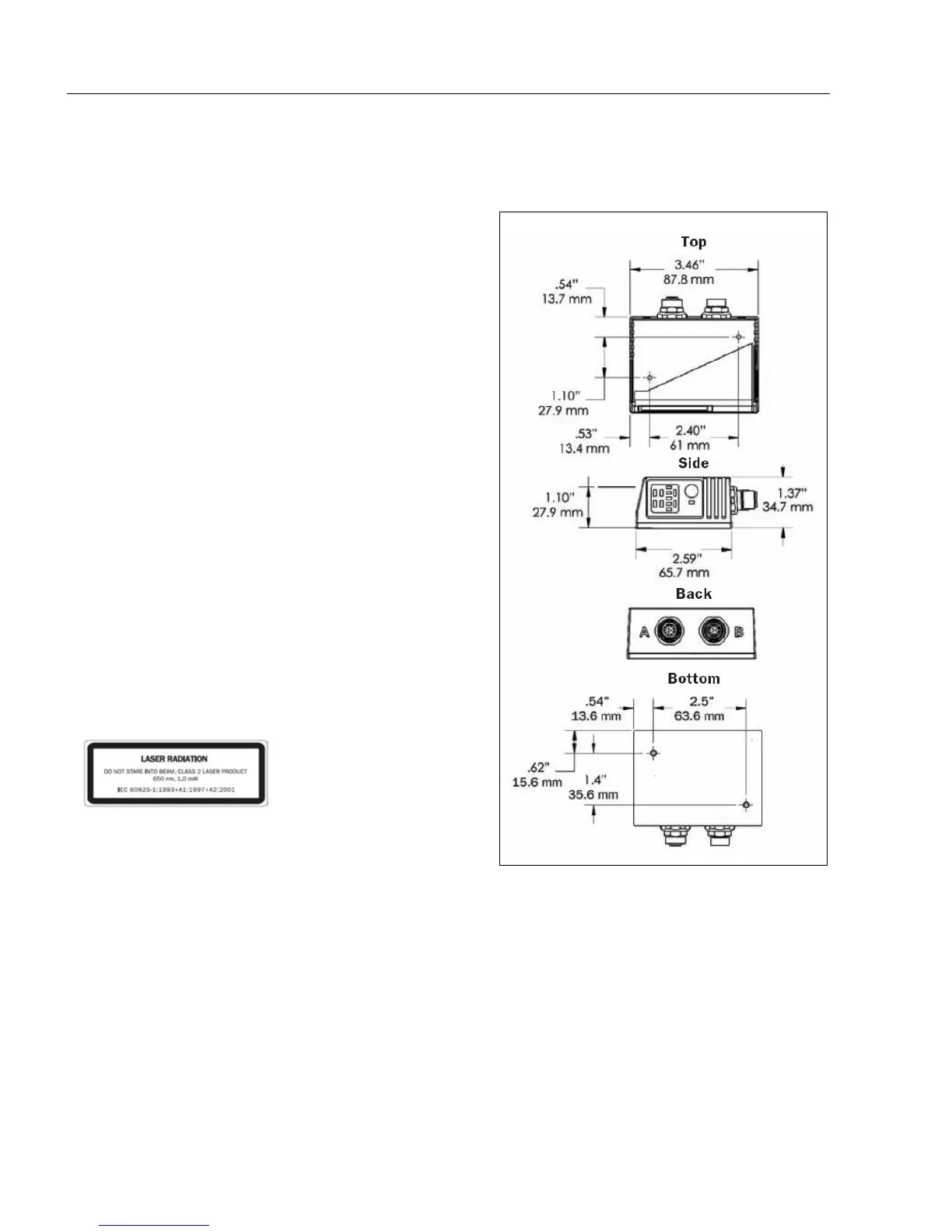

Mechanical
Height: 2.59" (66 mm)
Width: 3.47" (88 mm)
Depth: 1.38" (35 mm)
Weight: 7.5oz. (212 g)
Environmental
Enclosure: Die-cast aluminum, IP65 rated
Operating Temperature: 0° to 50° C (32° to 122° F)
Storage Temperature: –29° to 70° C (–20° to 158° F)
Humidity:
up to 90% (non-condensing)
Emissions
Heavy Industrial:
EN 61000-6-2:2005
Radiated Emissions
: EN 55022:2006 Class A 30-1000 MHz
Conducted Emissions
: EN 55022:2006 Class A .15-30 MHz
Communication Interface
Standard Interfaces: RS-232, RS-422, RS-485, Ethernet
Symbologies
Standard Offering: Code 39, Codabar, Code 93, Interleaved
2 of 5, Code 128, PDF417, MicroPDF417, Pharmacode,
UPC, GS1 DataBar
Applications Standards: EAN-128, AIAG
Laser Light
Type: Laser diode
Output Wavelength: 655 nm nominal
Operating Life: 50,000 hours @ 25° C
Safety Class: Visible laser: CDRH Class II, 655 nm
Scanning Parameters
Mirror Type: Rotating, 10-faceted
Optional Raster Mirror Image: 10 raster scan lines over a
2° arc, or 0.500” raster height at 8” (203 mm)
Scan Rate: Adjustable from 300 to 1,400 scans per second
Scan Width Angle: Typically 60°
Pitch: ±50° max.
Skew: ±40° max.
Symbol Contrast: 25% min. absolute dark-to-light differential at 655 nm wavelength
Protocols
Point-to-Point, Point-to-Point with RTS/CTS, Point-to-Point with XON/XOFF, Point-to-Point with RTS/CTS and
XON/XOFF, Multidrop, Daisy Chain, User-Defined Multidrop, Ethernet TCP/IP, EtherNet/IP
Discrete I/O
Input 1 (Trigger / New Master):
Optoisolated, 4.5–28V rated (13 mA at 24VDC); New Master is (–) to signal ground
Outputs (1, 2, 3): Optoisolated, 1–28V rated (I
CE
< 100 mA at 24VDC, current limited by user)
