I/O Parameters

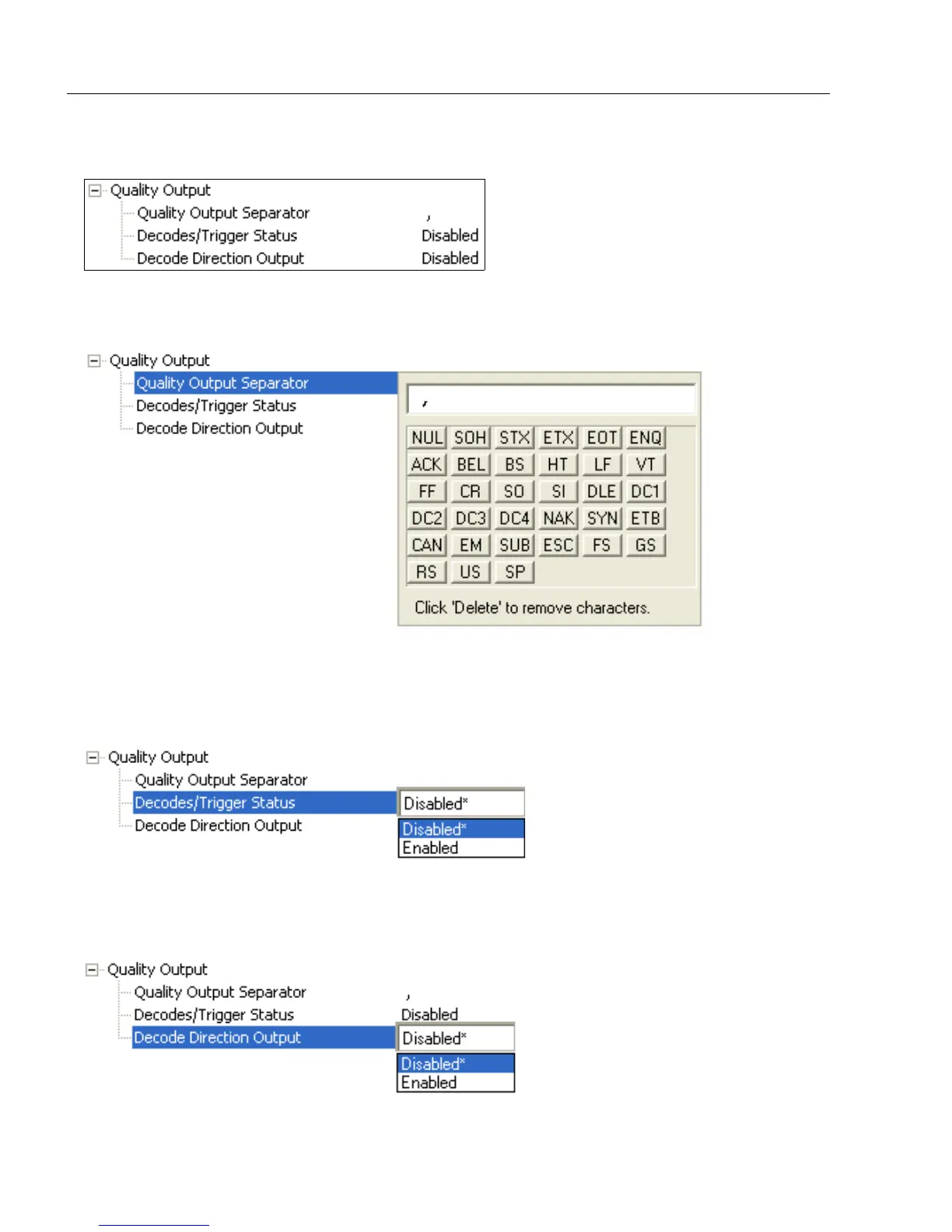

Quality Output
Quality Output Separator
The separator character separates quality output data from symbol data.
Decodes per Trigger Status
When Enabled, the scanner enters a state where it processes frames as configured until
the end of a read cycle, with or without a successful
symbol decode. When the read cycle
ends, the scanner outputs any decoded symbol data along with the decodes per trigger count.
Decode Direction Output
When Enabled, compares the symbol decode direction to the direction specified in Output
Filter Configuration.
