5-130 QX-830 Compact Industrial Scanner User’s Manual
I/O Parameters
Database Identifier Output
Useful in tracking which database entries read which symbols.

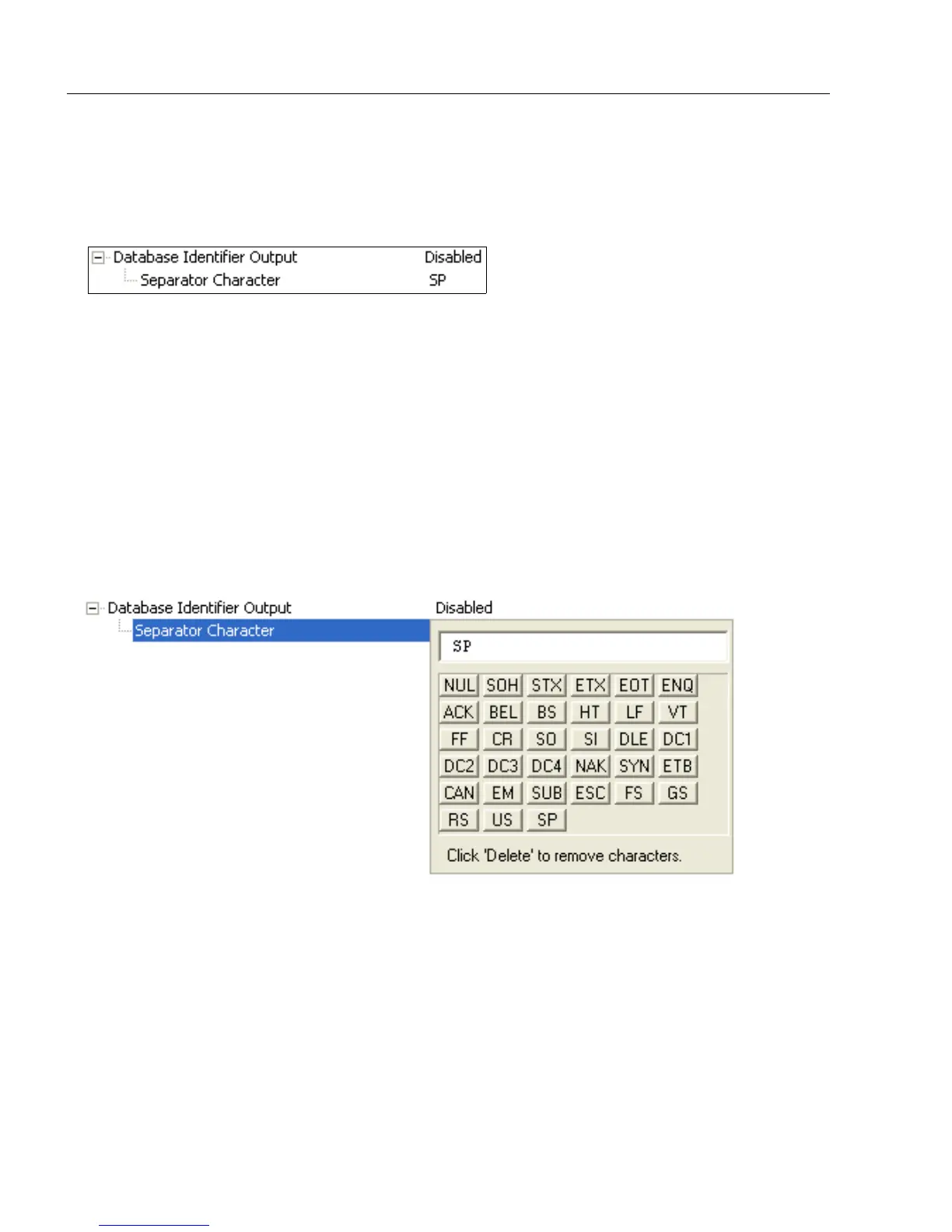

Database Identifier Output Status
Disabled
When this command is disabled, no database identifier information will be output.
Enabled
When this command is enabled, the scanner will append a two-digit number and the
characters “DB” to the data output following the separator for each symbol decoded using
Configuration Database. For example, if the separator is an underscore character and
the second database entry reads a symbol encoded with “data capture” during the read
cycle, the symbol data output will be “data capture_DB02”. If the database is not active,
no identifiers will be attached to output.
Separator Character
The separator character separates the symbol data from the database identifier.
