QX-830 Compact Industrial Scanner User’s Manual 5-127
Scanner Parameters

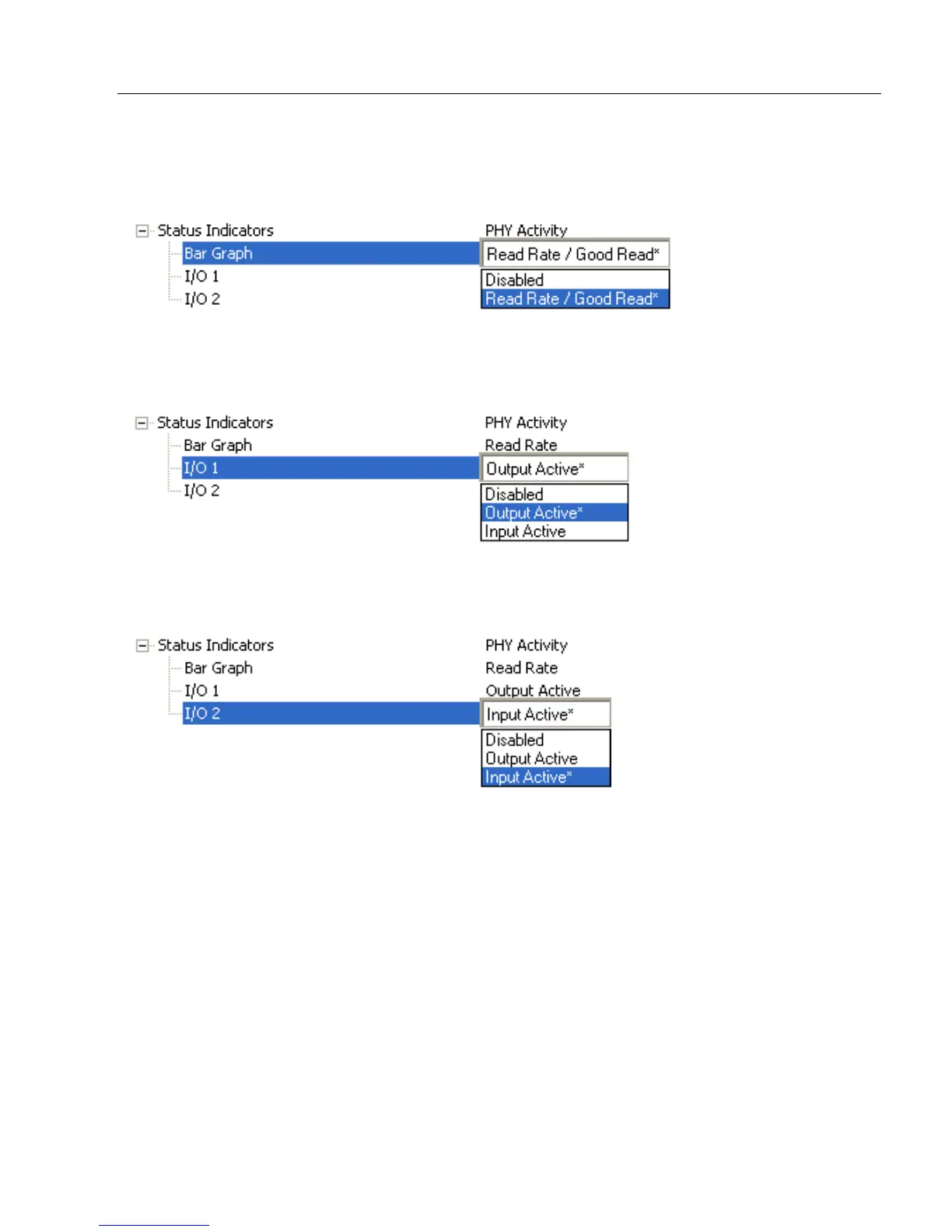

Bar Graph
Read Rate, Auto Calibration, Bar Code Configuration, and Read Cycle Result all share the
Bar Graph (20% – 100%) LEDs.
I/O 1
I/O 1 always shows the combined state of the discrete outputs. If any output is active,
the I/O 1 LED will be on.
I/O 2
I/O 2 always shows the state of the hardware input trigger. If the trigger is active, I/O 2 will
be on.
To Next Page
