MIMAKI JV3-160SP User Manual

– 5.9 –

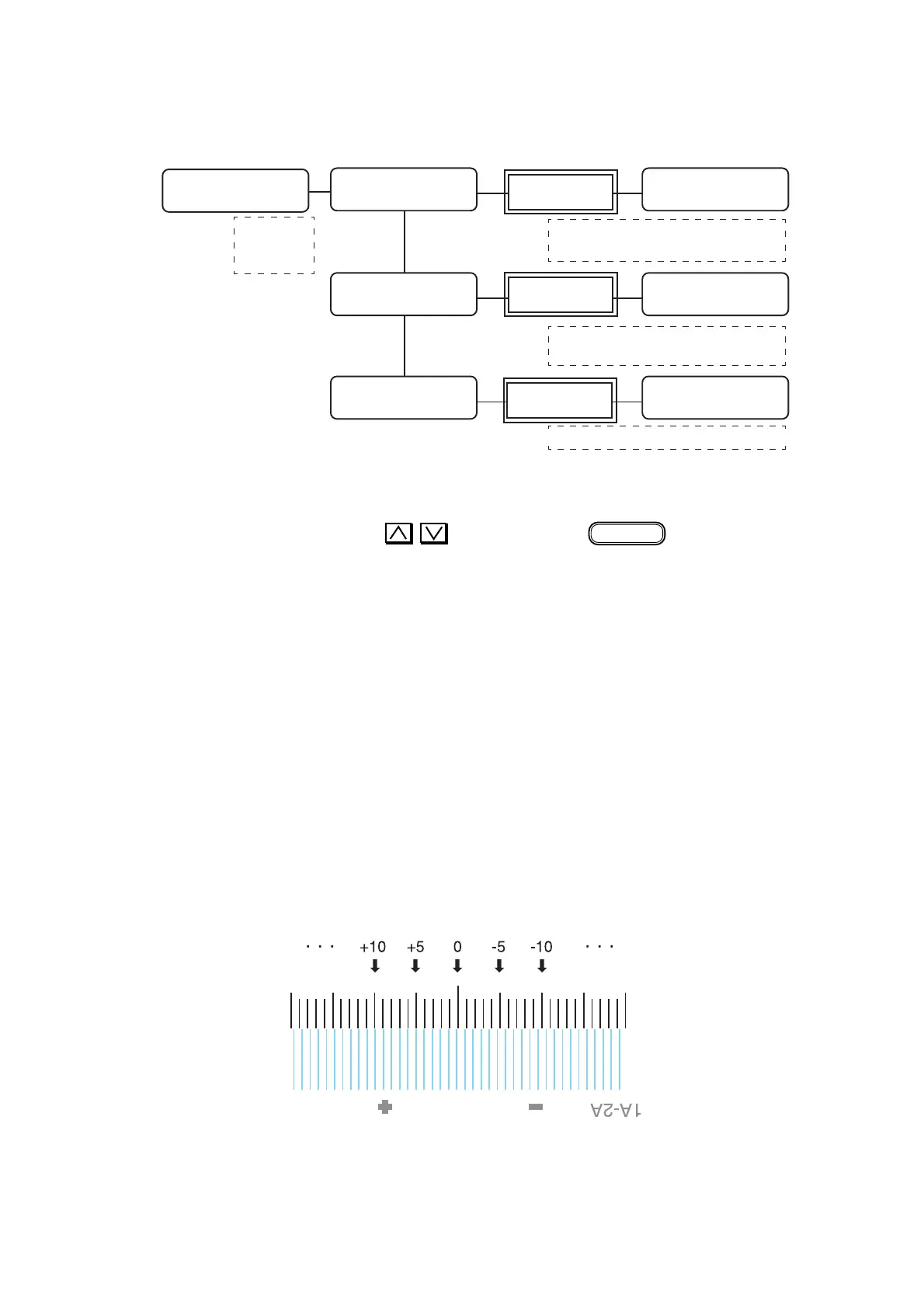

2. Y Single (Y Repeat, Y Bi-Directional)
1. Input the value with key, and set it with
ENTER
key.
Input the value matched the end of the upper section and the lower section of
plotted drawing.
Set all adjustment value from between 1-2 and 1-4.
* Only adjust each head of "a" line (left nozzle line) for "Y Single" and "Y Bi".
* This adjust is only for "a" line. "b" line (right nozzle line) is also added for new
adjust.
* The fine adjust for all the nozzles is implemented with "FINE Y Si.", "FINE
Y Re.", and "FINE Y Bi.".
2. Set the adjust value same as Step1 for "Y Re" and "Y Bi".
(Adjust only black for "Y Bi.")
Print sample
Variable-2
Normal-1
Normal-2
#PRN.adjust2 LH
SEL : Variable-1
Adjustment
Pattern Print
Adjustment
Pattern Print
Adjustment
Pattern Print
#PRN.adjust2 LHV1
Adjust : Y Si.
#PRN.adjust2 LHV1
Adjust : Y Re.
#PRN.adjust2 LHV1
Adjust : Y Bi.
H1-2, H1-3, (H1-4)
Input value : -50 to 50 (1 dot unit)
H1-2, H1-3, (H1-4)
Input value : -50 to 50 (1 dot unit)
Input value : -50 to 50 (1 dot unit)
#PRN.adjust2 LHV1
Y Si H1-2 : 0.0
#PRN.adjust2 LHV1
Y Re H1-2 : 0.0
#PRN.adjust2 LHV1
Y Bi H1-1 : 0.0
