– 5.32 –

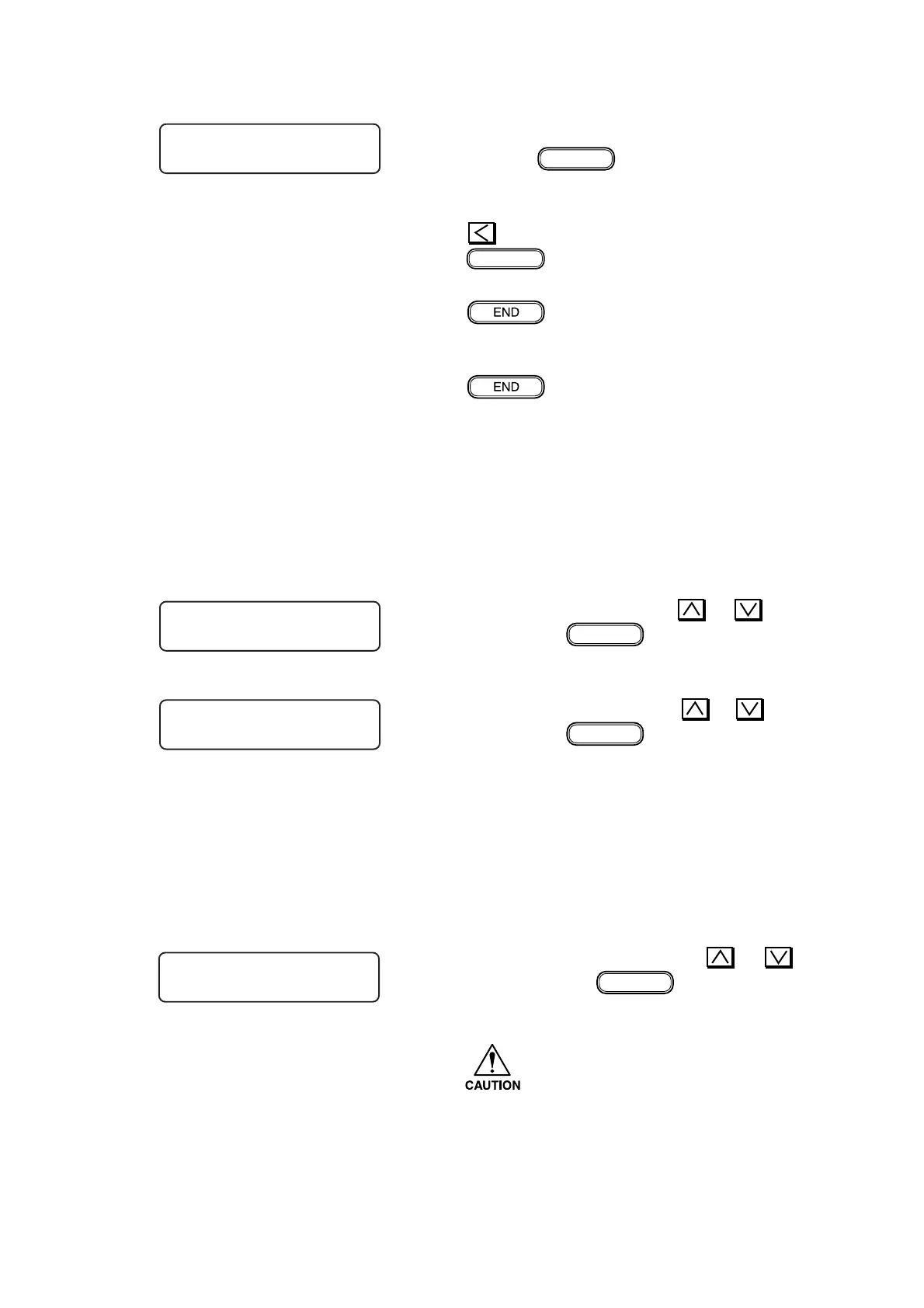

6) At this time it is now ready for the drawing.
Press the
ENTER
key to start drawing.
When the device is ready for plotting, the
followings can be setted.
: shift the origin.
REMOTE/LOCAL
: select the high-speed scan.
Plotting can be aborted by pressing the
key.
7) After the completion of the plotting, press the
key in repetition to return the
layers of screens one by one to permit the
conditions to be changed.
# CHK PATTERN
PATTERN : PLOT
b. Plotting a nozzle checking pattern
1) Select “NOZZLE” using the or key
and press the
ENTER
key.
2) Select the resolution using the
or key
and press the
ENTER
key.
Resolution : 360 x 360- N1, 360 x 360- V1,
360 x 540- N1, 360 x 540- V1,
720 x 720- N2, 720 x 720- V2,
1440 x 1440 -V2, 180 x 180- N1,
180 x 180- V1, 360 x 720- V1,
360 x 720- N1, 720 x 1440- V2,
720 x 1440- N2
3) Select the print mode using the
or
key and press the
ENTER
key.
Drawing way : BI-D 1,2,3,4,6,8,12,16,32 pass
UNI-D 1,2,3,4,6,8,12,16,32 pass
• Some items cannot be selected and
other combinations may apply
depending on the ink set (4 colors,
6 colors) or the resolution.
# CHK PATTERN
DPI : 360X360-N1
# CHK PATTERN
PLOT : UNI–D 2 pass
# CHK PATTERN
PATTERN : NOZZLE
