8-2 TM80 Telemetry Monitor Service Manual
8.2 Disassembling the TM80
1. Remove the label on the rear housing of the TM80 and remove the battery.
Unscrew the screws on the front and rear housing by using a Phillips
screwdriver.
2. Hold the display and let it face your left palm, open the front and rear housings,
and remove the connector of the Wi-Fi cable.
CAUTION
 Do not pull apart the Wi-Fi cable of the TM80.

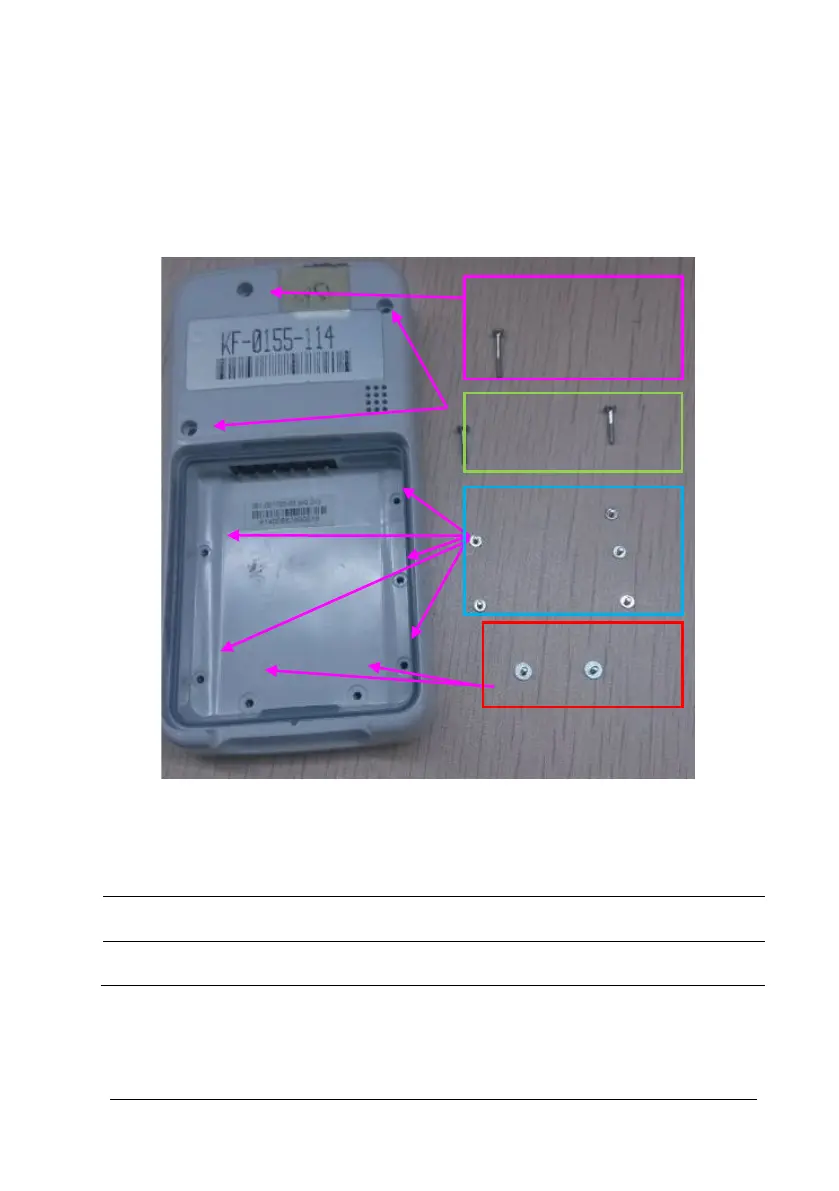

One M1.6×13.3 screw
Two M1.6×3.5 screws
Five M1.6×2.4 screws
Two M1.6×3.5 screws
