2-4 TM80 Telemetry Monitor Service Manual

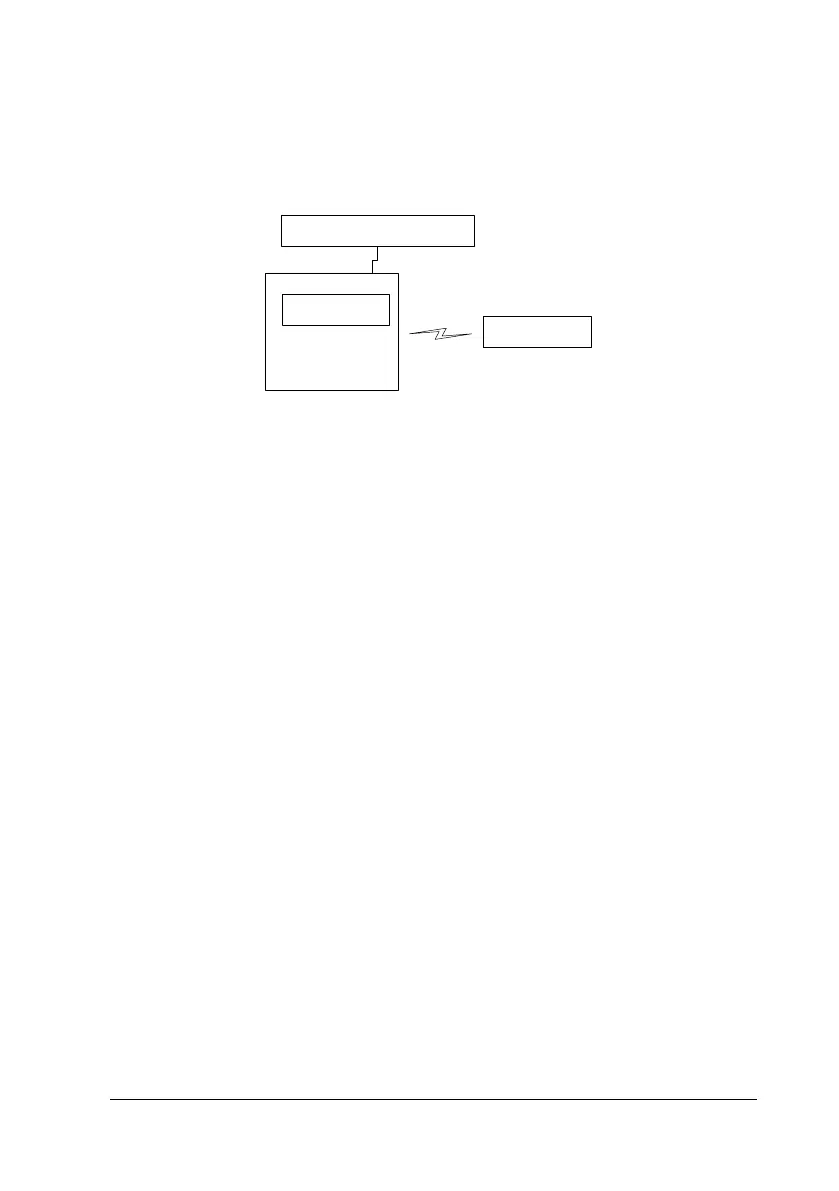

2.3.2 Connection Diagram of the TM80 Telemetry Monitor
The following figures illustrates how the ECG, SpO
2
, and NIBP modules are
connected to the TM80 Telemetry Monitor.
ECG/RESP
collection
TM80
Telemetry
Monitor
SpO2 module
NIBP
measurement
Wired connection
Wireless
connection
The ECG and Resp collection circuit is designed inside the TM80 Telemetry Monitor.
The SpO
2
module and sensor constitute a SpO
2
cable. The SpO
2
module is connected
to the TM80 Telemetry Monitor via the SpO
2
cable.
Hard connection is used between the cable and the monitor. The NIBP module is a
standalone module and performs short-range wireless communication with TM80
Telemetry Monitor.
