Mindray BeneVision TM80 Service Manual

TM80 Telemetry Monitor Service Manual 8-9

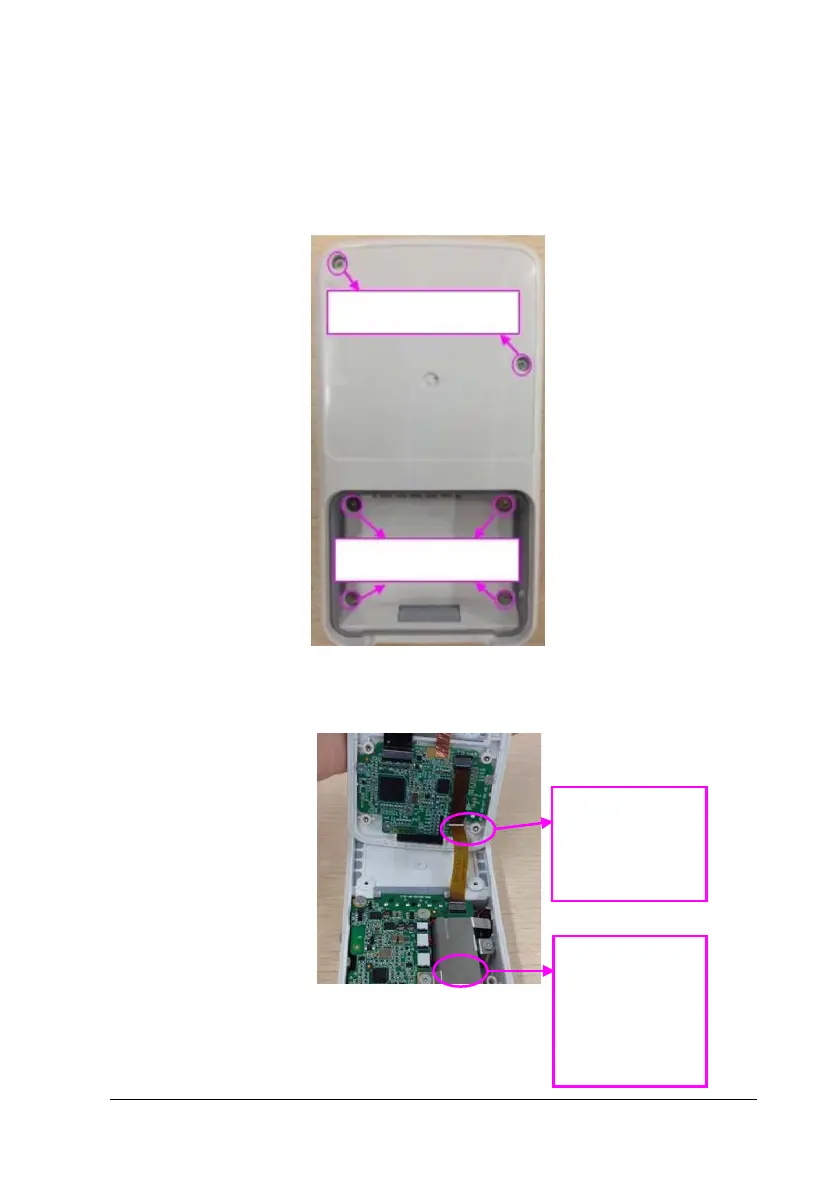

8.3 Disassembling the BP10
1. Remove the label on the rear housing of the BP10 and remove the battery.
Remove screws on the front and rear housings by using a Phillips screwdriver.
2 M1.6x13.3 screws
4 M1.6x3.5 screws
2. Open the front and rear housings and remove the FPCs that connect the front
and rear housings.
R
R
Remove the
FPC from the
parameter
board socket
Remove the FPC
from the main
control board
