TM80 Telemetry Monitor Service Manual 5-7
5.4.4 NIBP Tests
Perform NIBP accuracy test and leakage test at the BP10.
5.4.4.9 NIBP Accuracy Test
Tools required:
T-shape connector
Appropriate tubing
Balloon pump
Rigid Vessel with volume 500 ± 25 ml
Reference manometer (calibrated with accuracyequal to or greater than 1
mmHg)
Follow this procedure to perform the test:

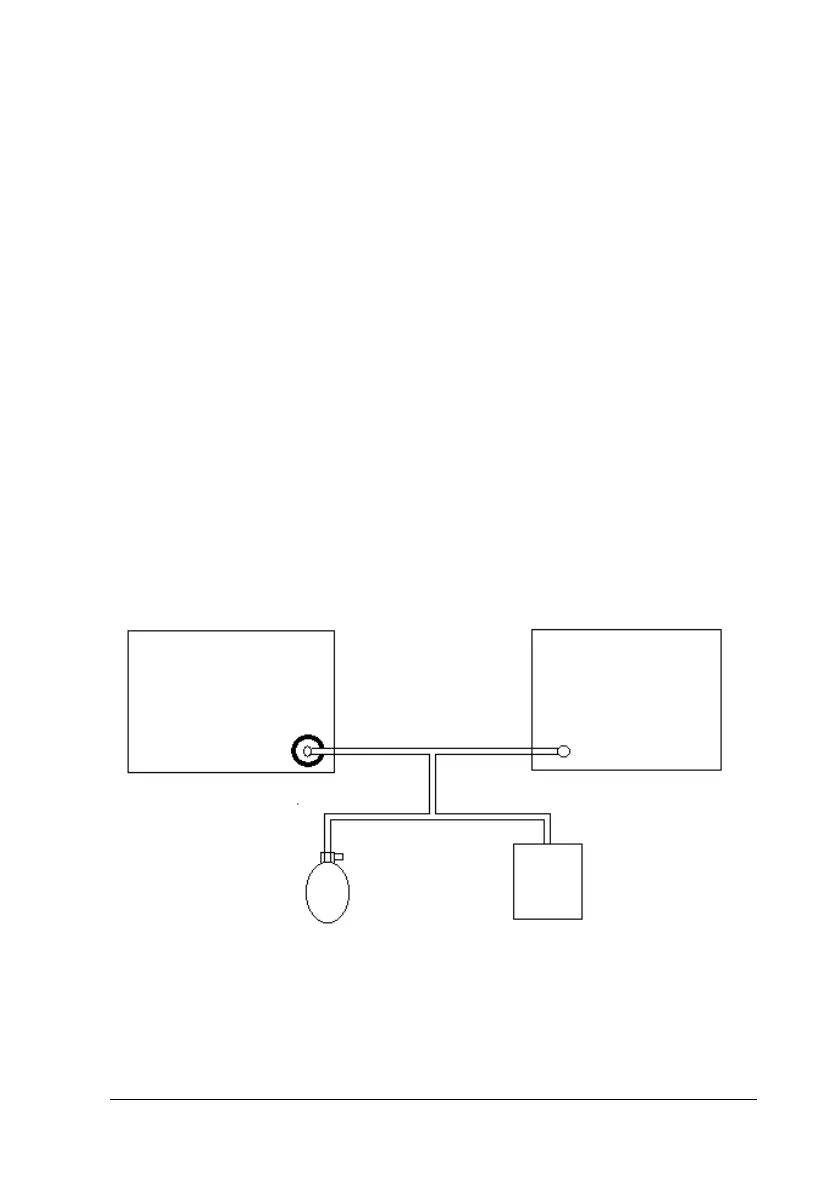

1. Connect the equipment as shown below.
4. Before inflation, the reading of the manometer should be 0. If not, turn off
the balloon pump to let the whole airway open to the atmosphere. Turn
on the balloon pump after the reading is 0.
BP10
Tubing
Balloon
Rigid vessel
Connector for NIBP cuff
Manometer
