TM80 Telemetry Monitor Service M
anual
3-57
3.5.4.2
Impor
t
ing a
Configuration F
ile
1.
C
hoose
Configuration
→
Maintenanc
e
→
Upgrade
→
Restore Settings
.
2.

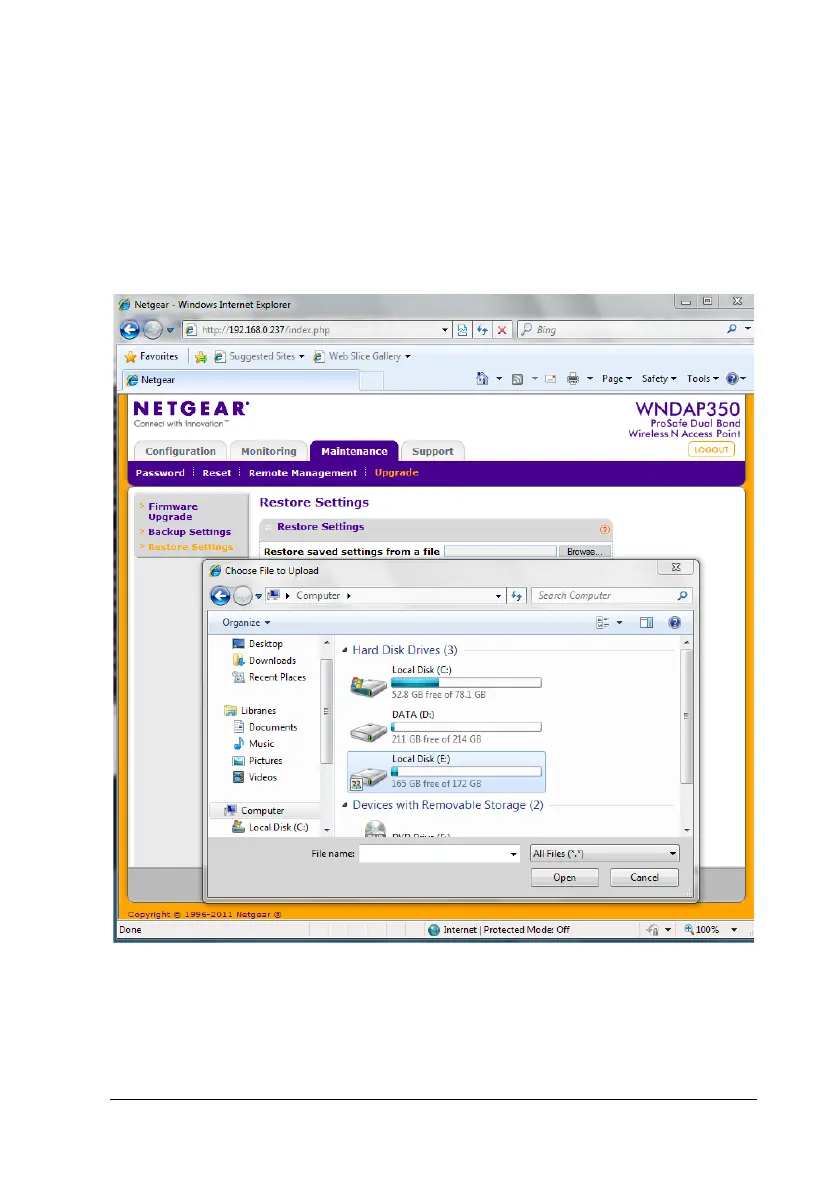

On t
he page for impor
ting configuration file
s, c
lick
Browse
, select a
local
configuration file, and impor
t it to the A
Ps to be c
onfigured, a
s shown
below
.
3.
C
lick
A
P
P
LY
.
80
82
Table of Contents
Default Chapter
9
Table of Contents
9
1 Safety
15
Safety Information
15
Warnings
16
Cautions
17
Notes
18
Equipment Symbols
18
2 Overview
19
Product Overview
19
Key Features
20
Introduction to TM80 Telemetry Monitoring System
20
Module Configurations for the TM80 Telemetry Monitor
21
Connection Diagram of the TM80 Telemetry Monitor
22
Architecture of the TM80 Telemetry Monitoring System
23
3 Installation
25
Overview
25
Introduction
25
Business Types
26
Installation Process
28
Network Requirements of the TM80
32
Requirements for Network Feasibility
33
Configuration Requirements for WLAN of TM80
42
Configuration of Cisco Network Devices
45
Recommended Devices
45
Configuration Description
46
WLAN Settings
47
CONTROLLER Settings
52
WIRELESS Settings
54
Configuration of Aruba Network Devices
59
Recommended Devices
59
Login
60
Wireless Setting
61
Network Setting
67
Configuration of Netgear Network Devices
68
Preparation
69
Setting Single AP
70
Wireless Settings (5G)
76
Setting Multiple Aps
79
Network Deployment Planning
82
Tools and Resources
82
Environmental Survey
82
Network Deployment Implementation
87
Preparations before Equipment Installation
87
Roaming Consideration
88
Services Provided During and after Installation
88
Network Verification
89
Tools and Resources
89
Wi-Fi Signal Calibration
89
Confirm Network Feasibility
90
Network Verification Process
91
Configuring WLAN Settings of TM80
92
WLAN Setup
93
EAP Setup
94
EAP Certificate Management
95
Wlan Test
103
Band Channels
106
Network Verification with TM80
106
Test Preparation
106
Connecting a TM80 to the Central Station
107
Test Preparation
108
Coverage Confirmation
108
Tm80Acceptance Confirmation
110
Appendices
111
TM80 Wi-Fi Network Requirement Table
111
Environmental Survey Table
115
Network Acceptance Table
120
TM80 Verification Confirmation Table
126
4 Product Principles
127
System Composition
127
System Signal Flow
130
5 Testing and Maintenance
133
Recommended Maintenance and Test Frequency
134
Inspection before Daily Use
134
Preventative Maintenance Procedures
135
Parameter Test
135
ECG Test
135
Resp Test
137
Spo Test
138
NIBP Tests
139
Miscellaneous Tests
142
Visual Inspection
142
Power-On Test
143
Nurse Call Test
143
Electric Safety Test
143
Network Print Test
144
Battery Check
144
6 Hardware Upgrade
145
Adding the Spo Function
145
Adding the NIBP Module (BP10)
145
Adding the Number of the TM80 Telemetry Monitors
146
Extending Coverage
147
7 Troubleshooting
149
Common Faults
149
The TM80 Failed to Connect to the Central Station
149
The TM80 Are Offline Frequently
150
The TM80 Cannot be Powered on
150
The Working Duration of Battery Becomes Short
151
Technical Alarms
151
Other Faults
160
Error Codes
165
8 Disassembly
167
Overview
167
Disassembling the TM80
168
Disassembling the BP10
175
9 Maintenance Materials
183
Overview of Maintenance Materials
183
TM80 Front Housing Assembly (Wi-Fi)
184
TM80 Rear Housing Assembly(Wi-Fi)
185
TM80 Main Unit (Wi-Fi)
187
BP10 Front Housing Assembly
188
BP10 Rear Housing Assembly
189
BP10 Main Unit
190
Exploded View of Central Charger
191
A Electrical Safety Inspection
193
Electrical Safety Tests for the TM80, BP10, and Central Charger
193
Power Cord Plug
194
Device Enclosure and Accessories
195
Device Labeling
196
Earth Leakage Test
196
Patient Leakage Current
198
Mains on Applied Part Leakage
201
Patient Auxiliary Current
204
Scheduled Electrical Safety Inspection
206
Electrical Safety Inspection after Repair
206
Electrical Safety Inspection Form
207
