b. Separate the residual part of the needle-guide bracket and the probe from the needle.
5. Remove the needle-guided bracket:
a. Screw the pinch nut to release the needle-guided bracket
b. Separate the bracket and the probe.
NGB-021
Perform the following procedure:

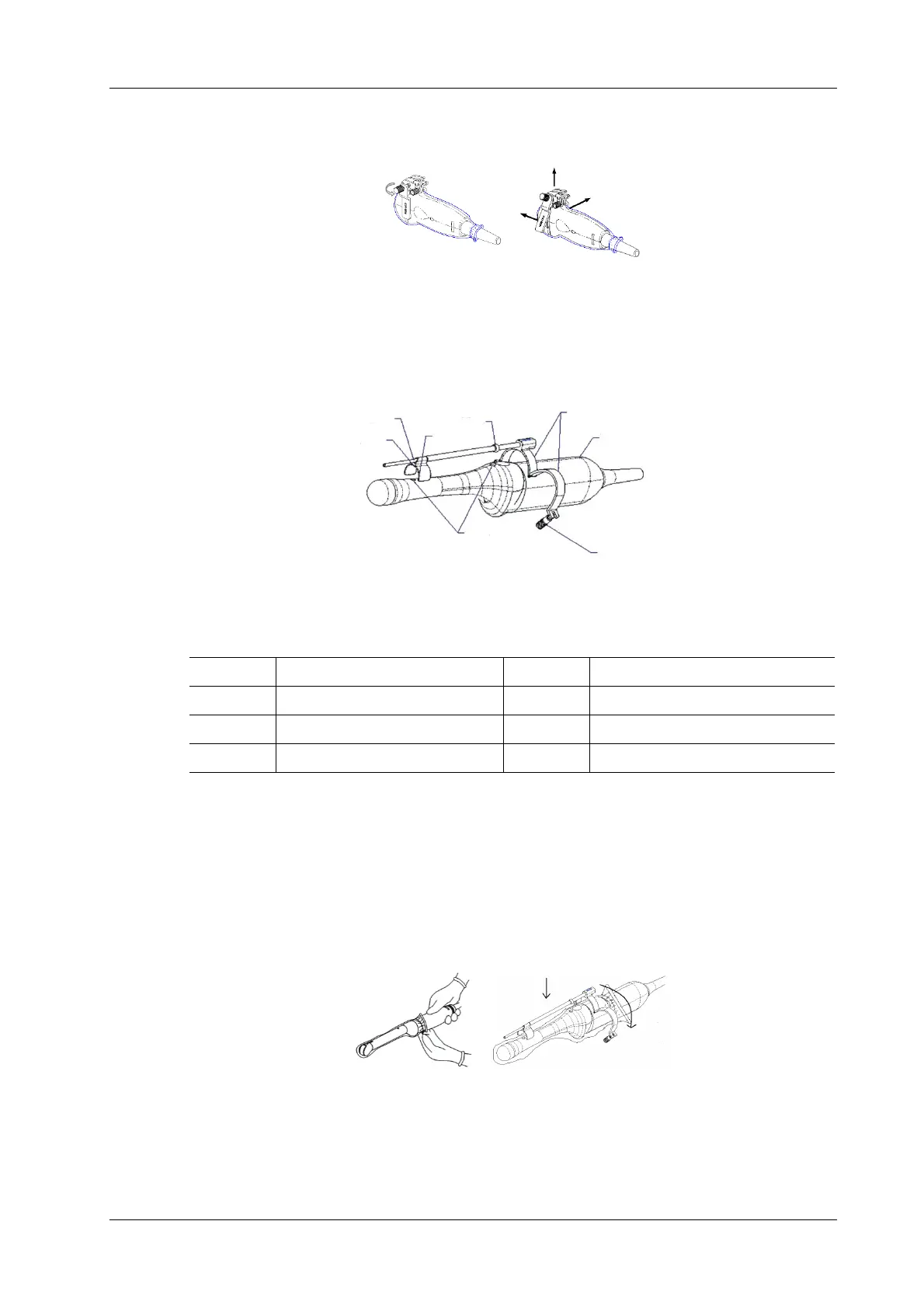

1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
b. Loose the retaining clamp, align the needle-guided bracket with the transducer to locate
the locating clamp on the needle guide to the locating grooves on the transducer, and then
press the retaining clamp (front) to match the locating clamp and the locating bulge on the
front retaining clamp to the corresponding groove.
c. Screw the retaining clamp to match with the transducer structure. When the clamp is
turned to the right position, the locking nut will lock the retaining clamp and the needle-
guided bracket is then mounted to the right position.
1 Locating bulge 2 Needle guide
3 Retaining clamp (front) 4 Locating clamp
5 Retaining clamp (back) 6 Probe
7 Locking nut 8 Locating groove
