A - 4 Operator’s Manual
A Barcode Reader

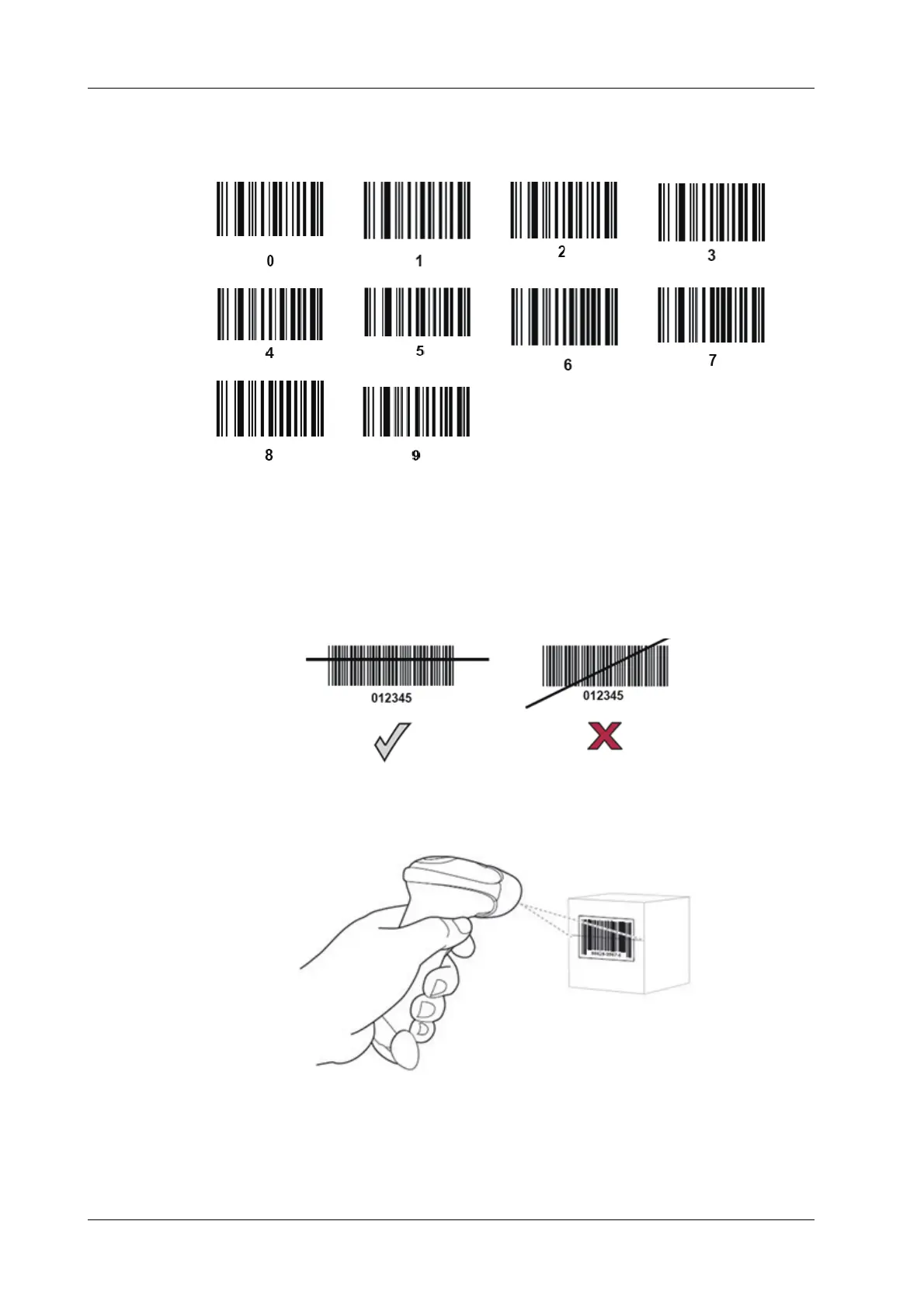

Select this option to decode only I 2 of 5 symbols containing a selected length. Select the length
using the numeric barcodes below. For example, to decode only I 2 of 5 symbols with 8 characters,
scan I 2 of 5 - One Discrete Length, then scan 0 followed by 8.
A.1.3 Scanning in Hand-Held Mode
Perform the following procedure:
1. Ensure all connections are secure.
2. Aim the reader at the barcode. Press the trigger.
Ensure the scan line crosses every bar and space of the symbol, see the figure below.
3. Upon successful decode, the reader beeps and the LED turns green.
Do not hold the reader directly over the barcode. Laser light reflecting directly back into the
reader from the barcode is known as specular reflection. This specular reflection can make
