Operator’s Manual H - 1
H Ultrasound Gel Heater
Ultrasound gel heater is a system option used for heating the ultrasound gel.

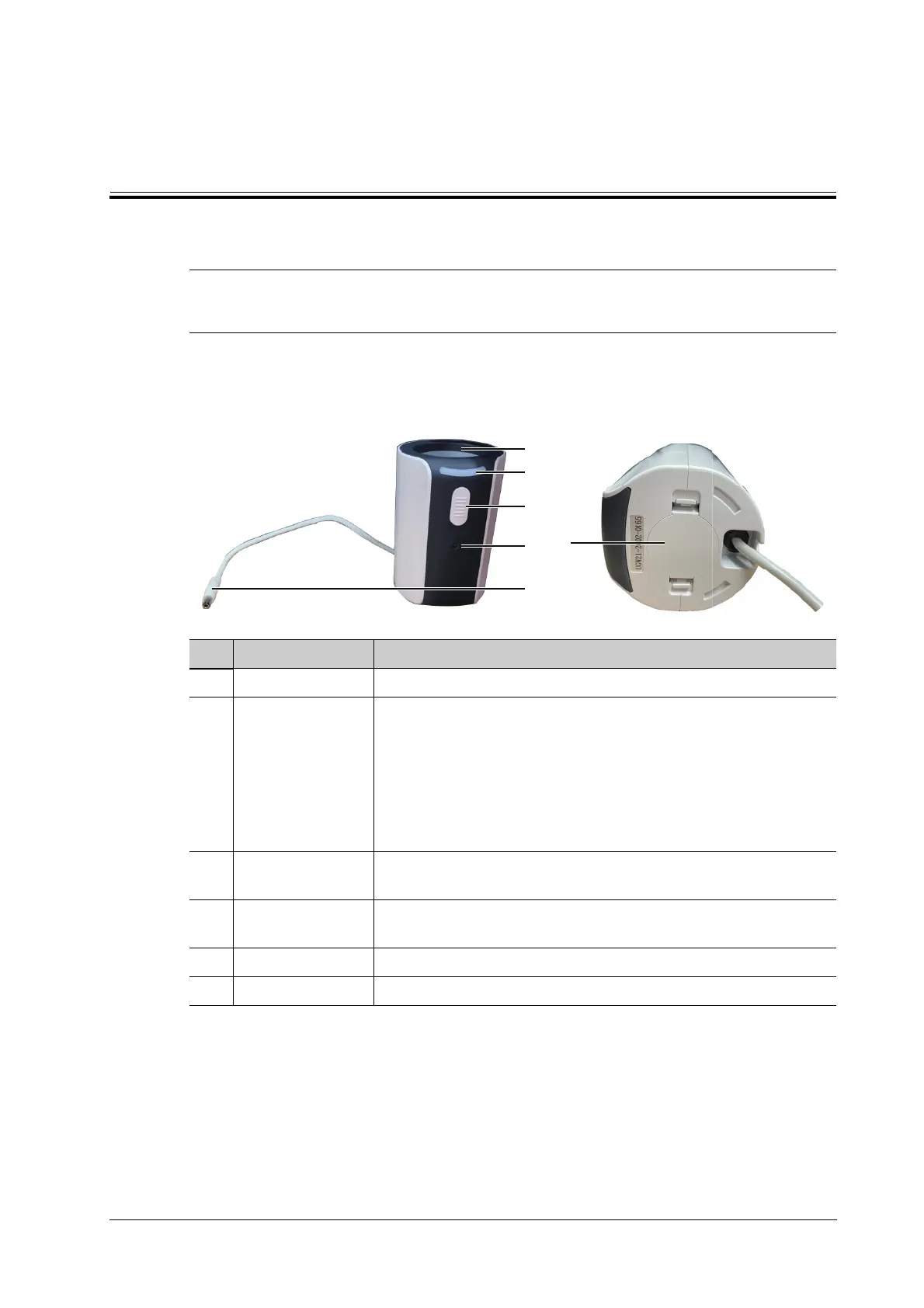

H.1 Structure
H.2 Specifications
• Power supply
– Voltage: 10-20V (±5%)
– Power consumption: 12W±10%W
• Operating conditions
No. Name Description
1. Ultrasound gel box Used for placing the gel.
2. Indicator • The indicator is off when switching off the heater.
• Set the heater temperature to low; one indicator on the right
becomes white.
• Set the heater temperature to med; two indicators on the right
become white.
• Set the heater temperature to high; three indicators on the right
become white.
3. Warming control
switch
Open the switch to get gel heater worked. Set the temperature of the
heater.
4. Power supply
indicator
The power supply indicator becomes green after the power supply
accessing.
5. Power supply cable Connect to the power socket under the control panel.
6. Bottom cover /
