17 - 40 Operator’s Manual
17 Probes and Biopsy

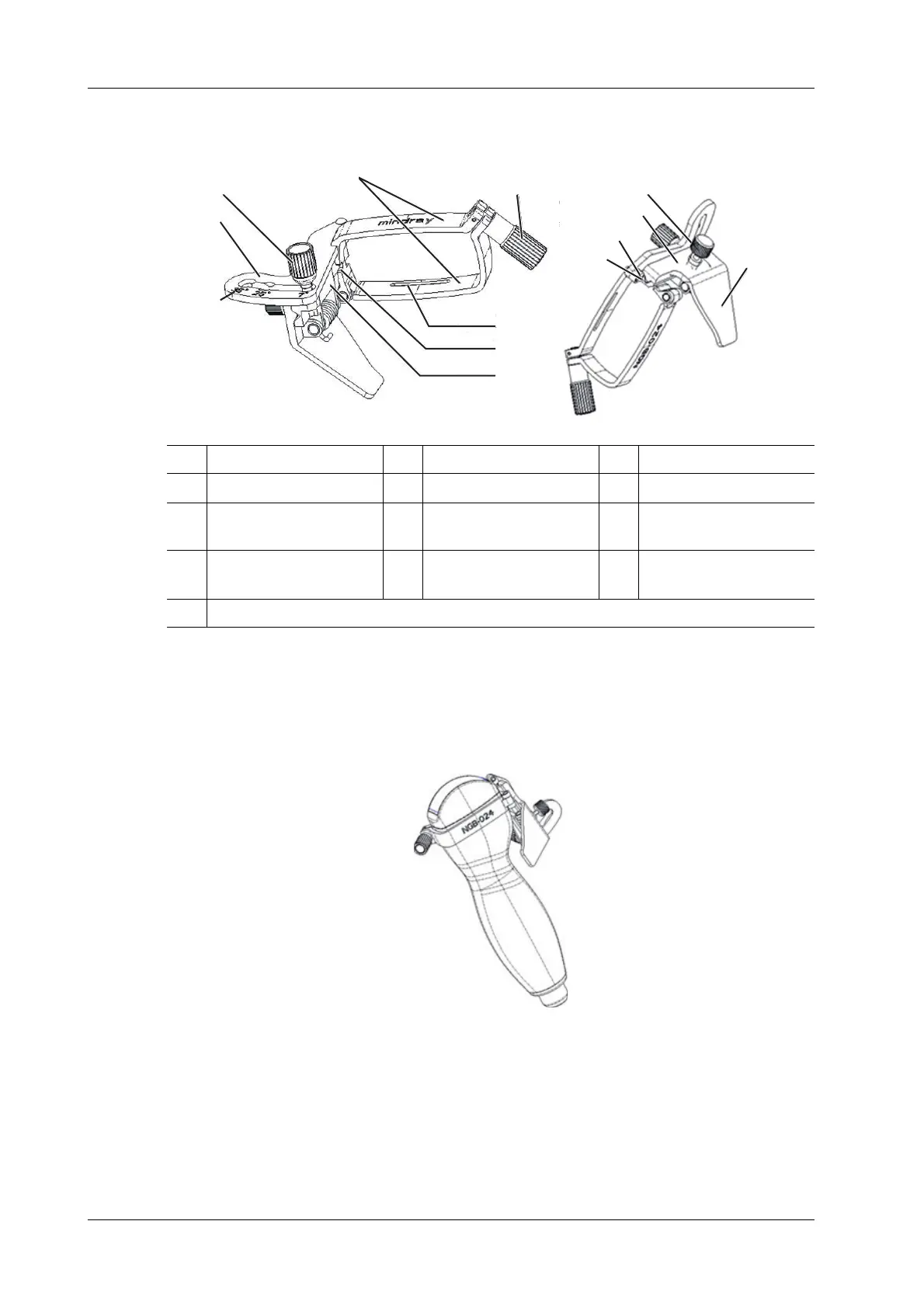

NGB-024
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile transducer sheath.
b. Select a proper needle-guided bracket, and match the groove with the tab of the
transducer. Mount the bracket onto the transducer.
1 Angle locking nut 2 Angle adjusting block 3 Angle marker
4 Angle adjusting base 5 Slot 6 Groove
7 Right, left retaining nut 8 Right, left clamp 9 Needle shape adjusting
nut
10 Needle clamping cover 11 Needle guided V-shaped
block
12 Guiding hole of the
needle
13 Needle separate pressure position
1
2
3
4
5
6
7
8
9
10
11
12
13
