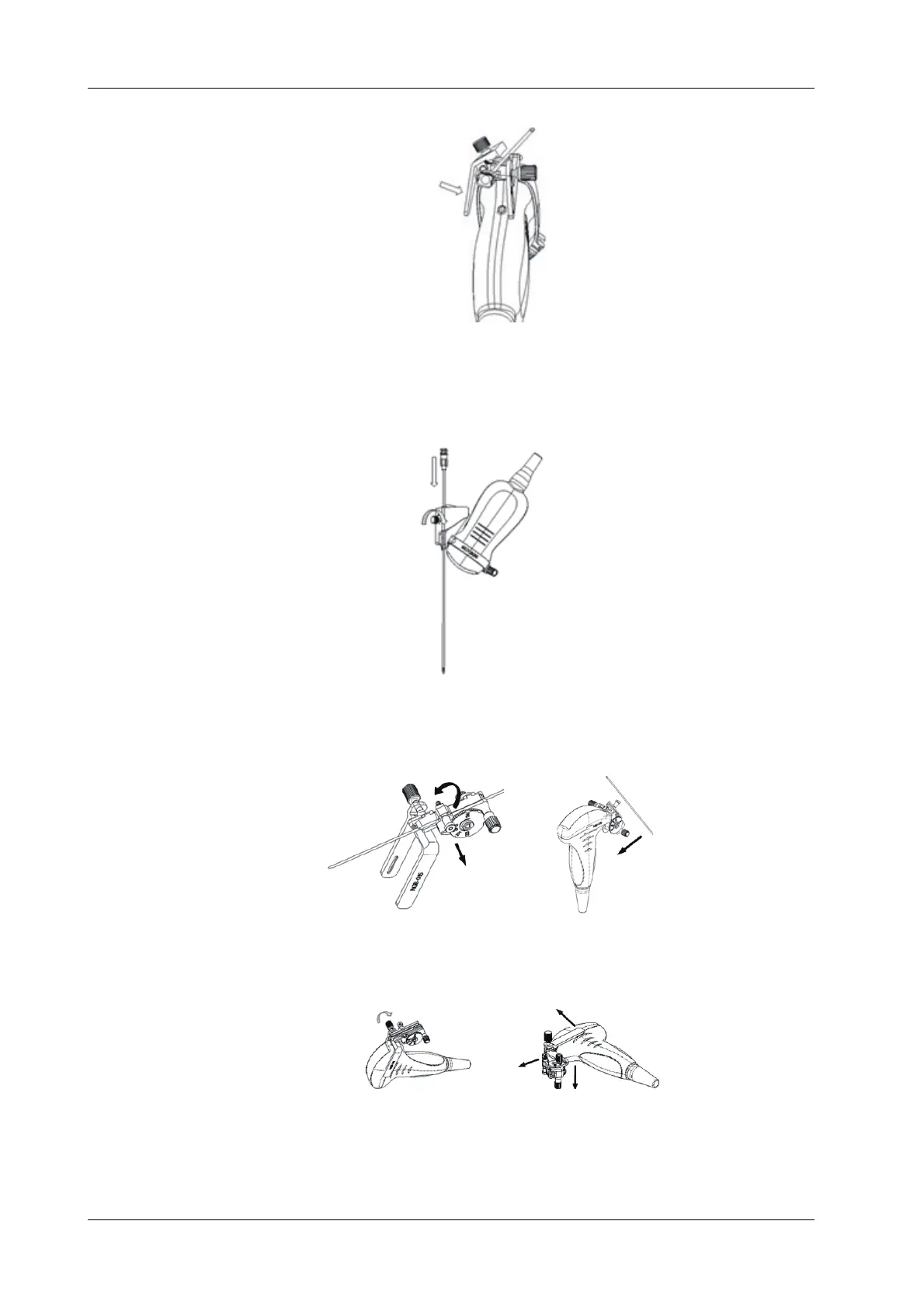

f. Hold the transducer, and release the pressure position of the needle. Adjust the needle-
type adjusting nut manually (following the direction of the arrow). The needle moves
smoothly at the vertical direction due to its gravity.
2. Remove the needle-guided bracket:
a. Pull the lock pin and open up the V-shaped cover to expose the needle.
b. Separate the bracket and the transducer from the needle.
c. Screw the pinch nut to release the needle-guided bracket.
d. Separate the bracket and the transducer.
To Next Page
