Mindray TE9 User Manual

12 Probes and Biopsy
Operator’s Manual 12 - 29

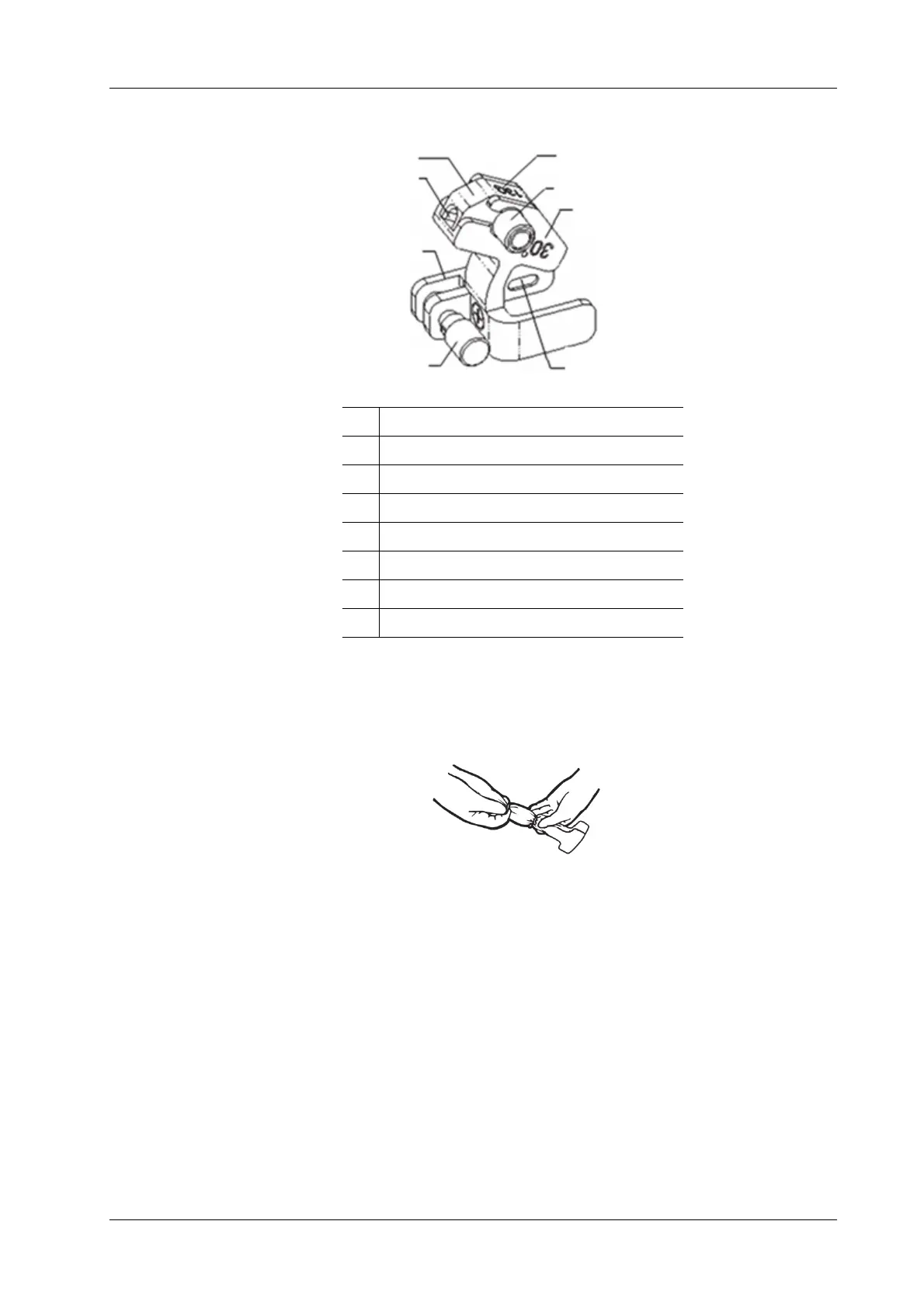

NGB-010 Metal-needle detachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
b. Hold the probe by one hand, select the proper needle-guided bracket, and hold it with the
other hand. Match the groove of the bracket with the tab of the probe. Amount the bracket
onto the probe.
c. Hold the probe by one hand, select proper needle-guided bracket, and hold it with the
other hand, and align the grooves of the needle-guided bracket with the tabs of the probe,
then push the needle-guided bracket forward, making the grooves of the needle-guided
bracket to match with the tabs of the probe. Set the needle-guided bracket at the desired
position, turn tightly the knob of fixing needle-guided bracket to fix the needle-guided
bracket.
1 Guiding block
2 Guiding hole of the biopsy needle
3 Support of needle-guided bracket
4 Knob of fixing needle-guided bracket
5 Grooves of the needle-guided bracket
6 Needle guide angle
7 Knob of fixing the guiding block
8 Specification of guiding block
1
2
3
4
5
6
7
8
