12 - 30 Operator’s Manual
12 Probes and Biopsy

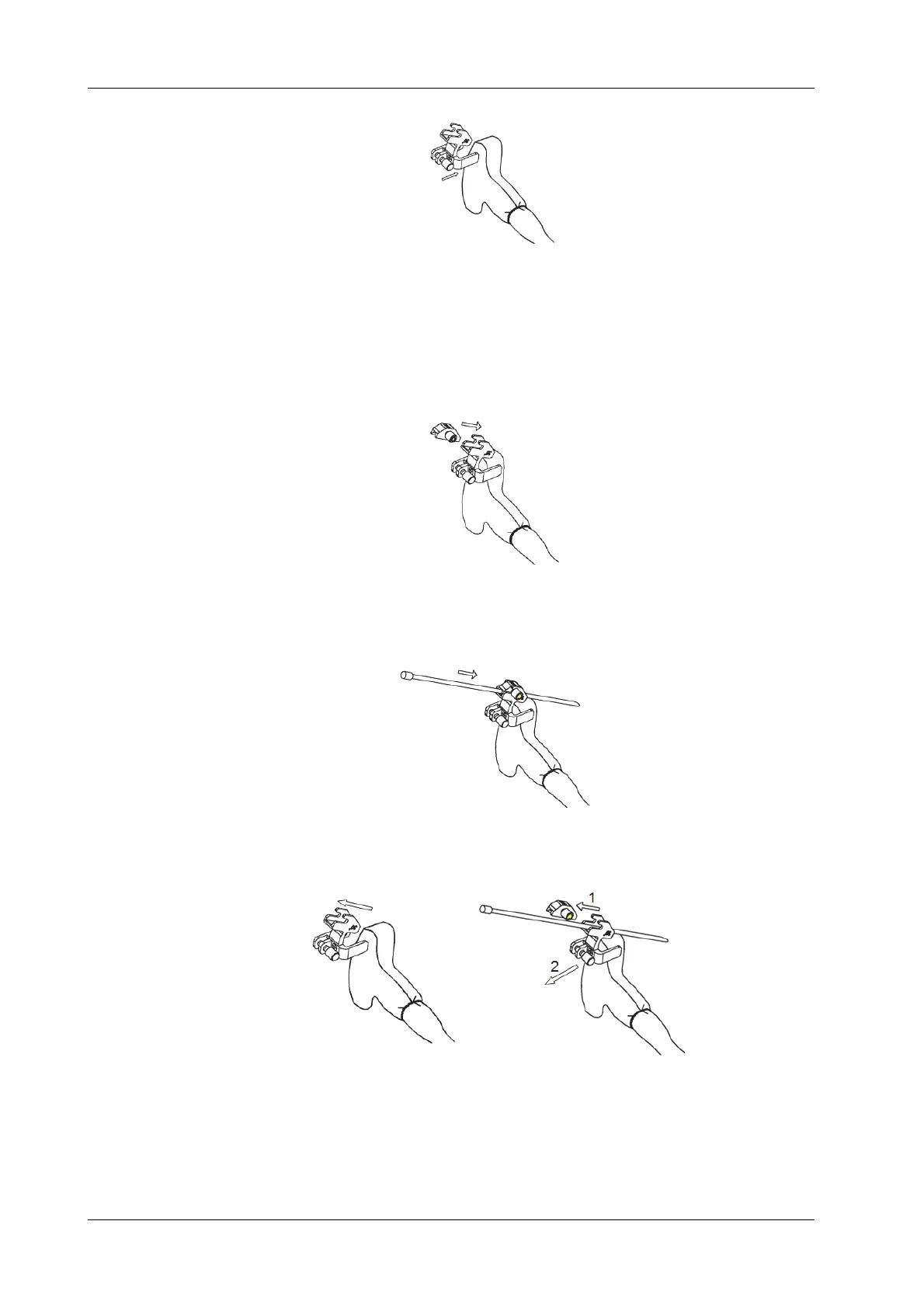

d. Check manually to confirm the needle-guided bracket is securely installed on the probe.
2. Install the guiding block:
a. Select a proper guiding block and push it into the groove above the support of needle-
guided bracket, then turn tightly the knob of fixing the guiding block to fix the guiding
block on the support of needle-guided bracket.
b. Insert a biopsy needle with the same specification as that of the guiding block into the
hole of the guiding block
3. Remove the needle-guided bracket:
a. Remove the guiding block slightly along the direction of the needle’s tail, and separate the
residual part of the needle-guide bracket and the probe from the needle.
b. Remove the support of needle-guided bracket from the probe.
