12 Probes and Biopsy
Operator’s Manual 12 - 31

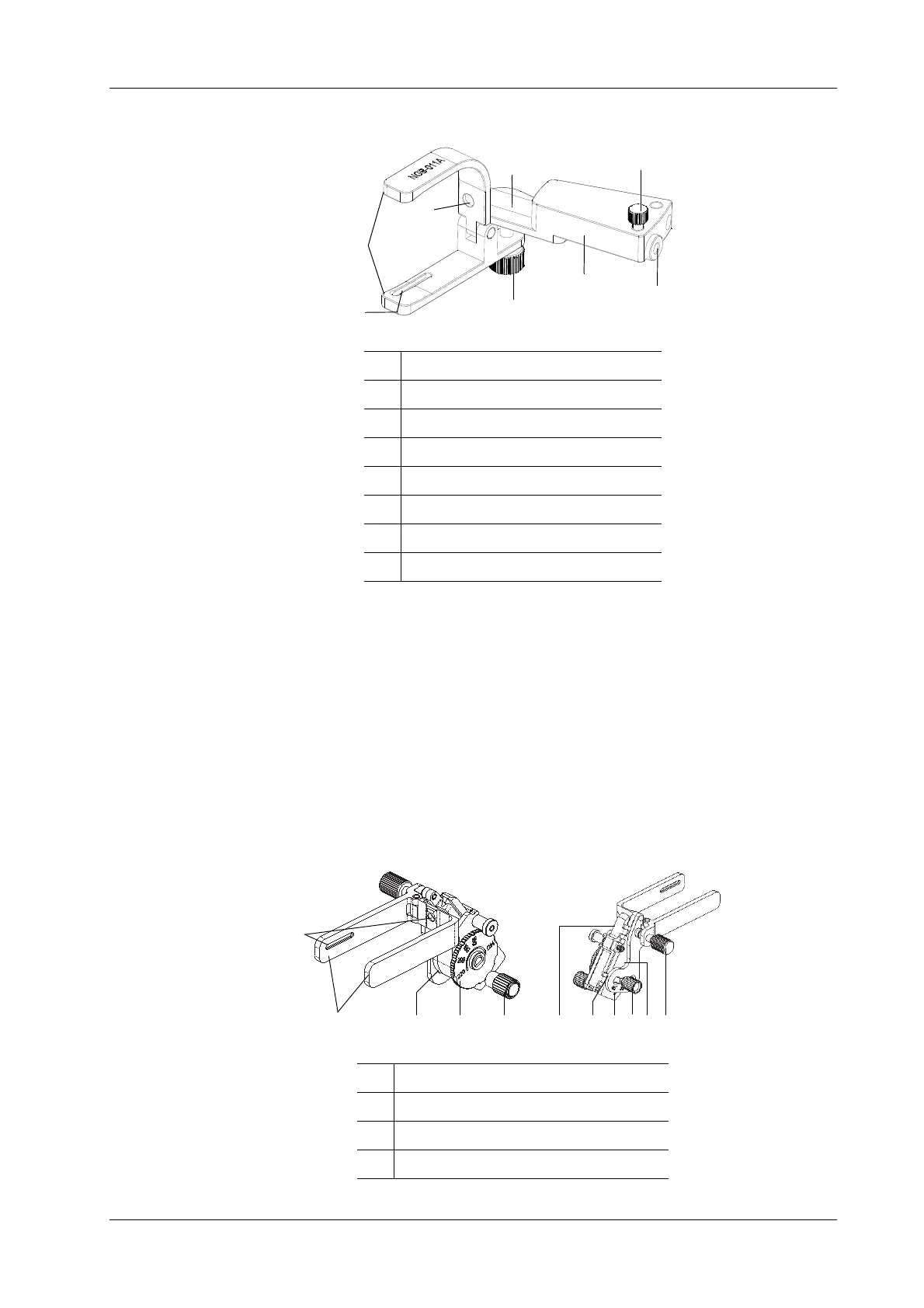

NGB-011 Metal-needle undetachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
b. Connect the locating groove on the clamp with the two raised edges on the probe head and
align the locating pit of the clamp with the convex point on the probe head.
c. Turn the grip knob at the tail of the needle-guided bracket tightly.
2. Remove the needle-guided bracket:
Hold the probe and the needle-guided bracket, then open the grip knob of the needle-guided
bracket.
NGB-015 Metal-needle detachable needle-guided bracket
1Clamp
2 Locating groove
3 Grip knob
4 Needle guide rack
5 Needle guide hole
6 Needle guide clamping knob
7 Needle guide
8 Locating pit
1
2
8
3
4
5
6
7
1Groove
2Clamp
3 Needle type adjusting base
4 Needle type dial scale
1
234567891011
