NGB-034 Metal-needle detachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
b. Select a proper needle-guided bracket, and match the locating groove with the tab of the
probe. Mount the bracket onto the probe.
c. Tighten the pinch nut of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the probe.

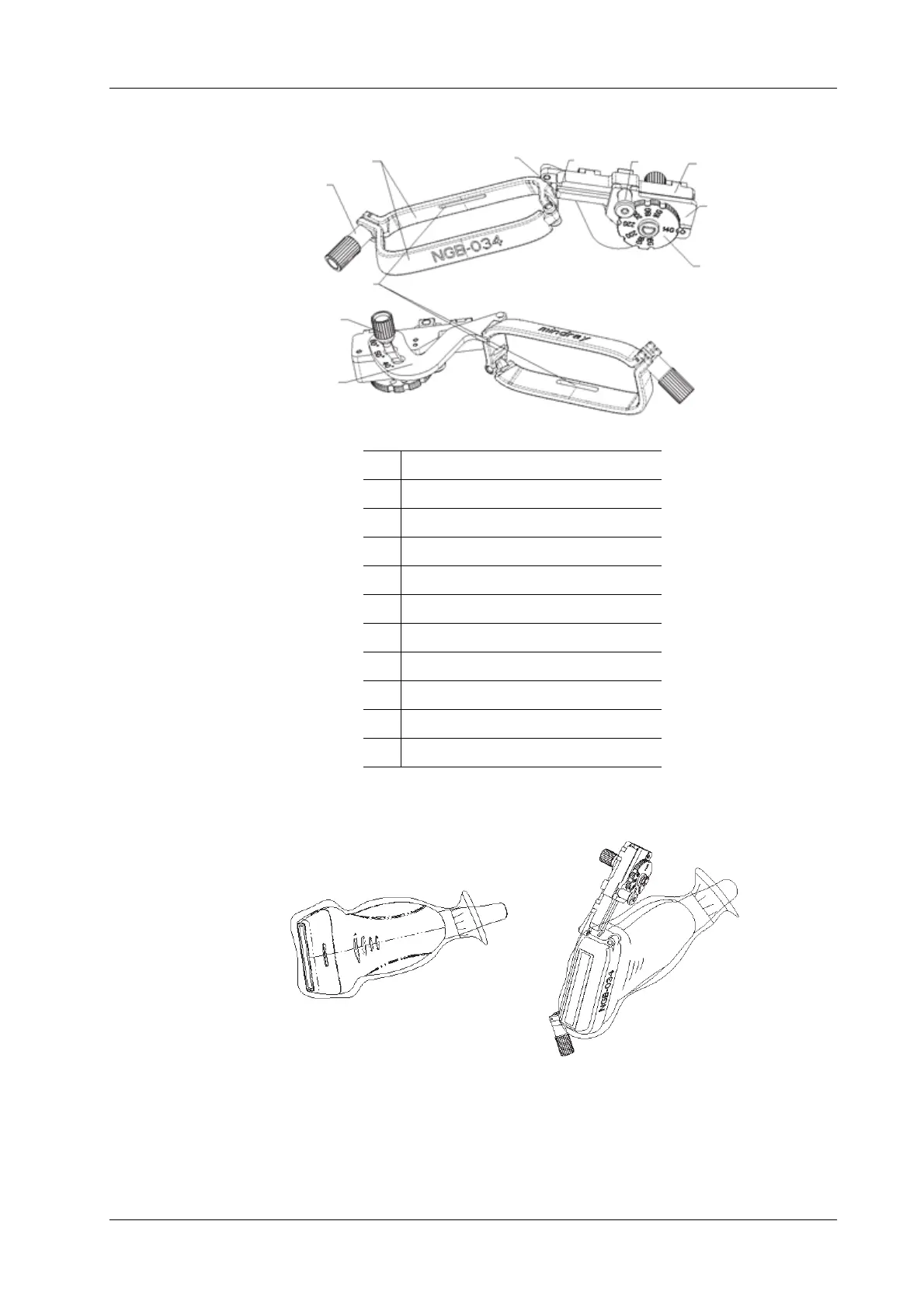

1 Needle fixing nut
2 Guiding groove
3 Angle fixing nut
4 Angle adjusting base
5 Needle type dial scale
6 Needle adjusting base
7 V-shape cover
8 Lock pin
9 Needle guide hole
10 V-shaped guiding block
11 Clamp
1
3
4
2
5
6
7891011
