12 - 38 Operator’s Manual
12 Probes and Biopsy

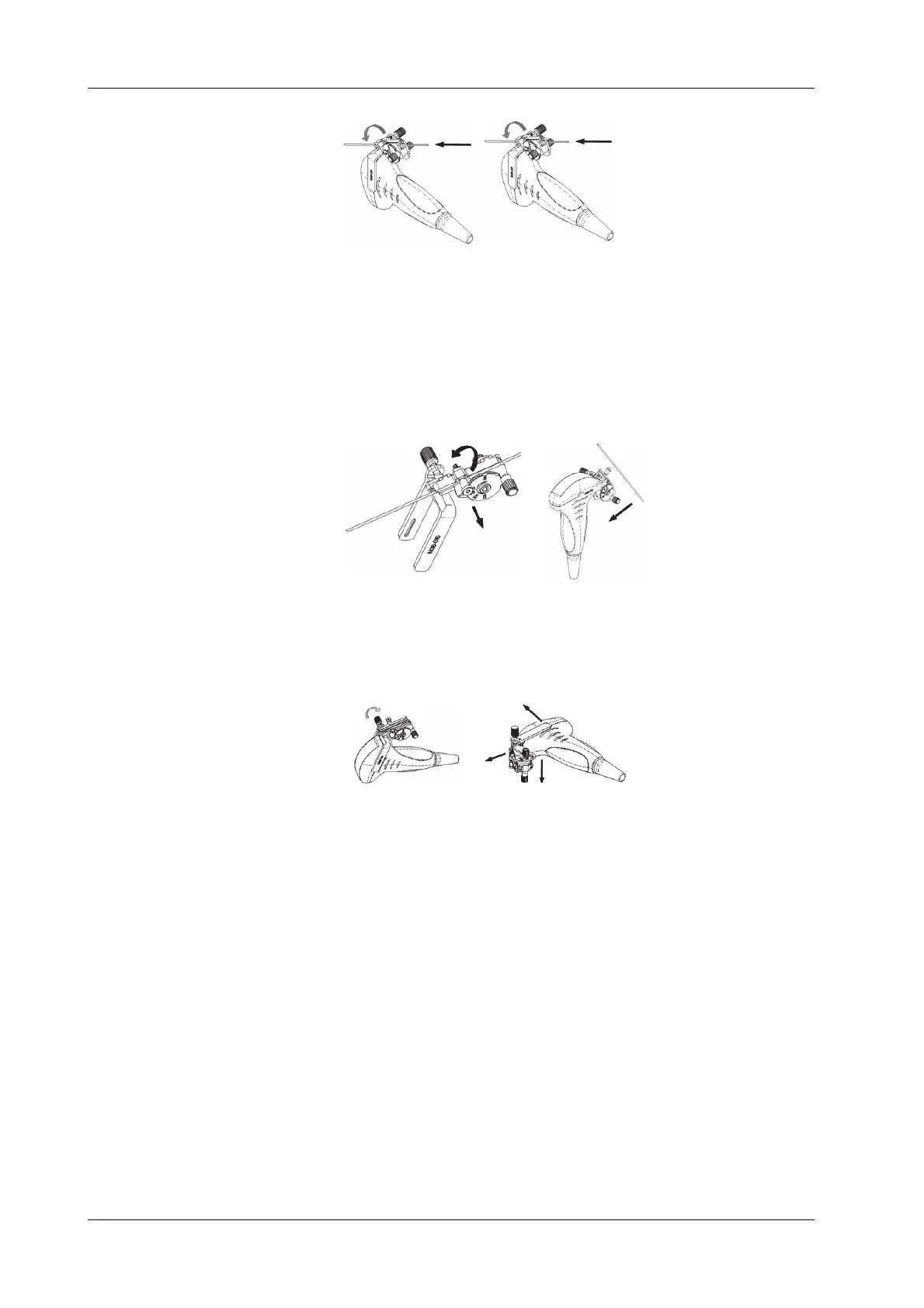

a. Adjust the dial scale to the required needle type shift, and then screw the needle fixing nut
to lock the dial scale. (To adjust the dial scale you have to loosen the needle fixing nut
first.)
b. Pull the lock pin and close the V-shaped cover to fix the lock pin in the groove of the
needle type adjusting base, so as to install the needle into the guiding hole.
4. Release the needle from the bracket:
a. Pull the lock pin and open up the V-shaped cover to expose the needle.
b. Separate the bracket and the probe from the needle.
5. Remove the needle-guided bracket:
a. Screw the pinch nut to release the needle-guided bracket.
b. Separate the bracket and the probe.
