12 Probes and Biopsy
Operator’s Manual 12 - 37

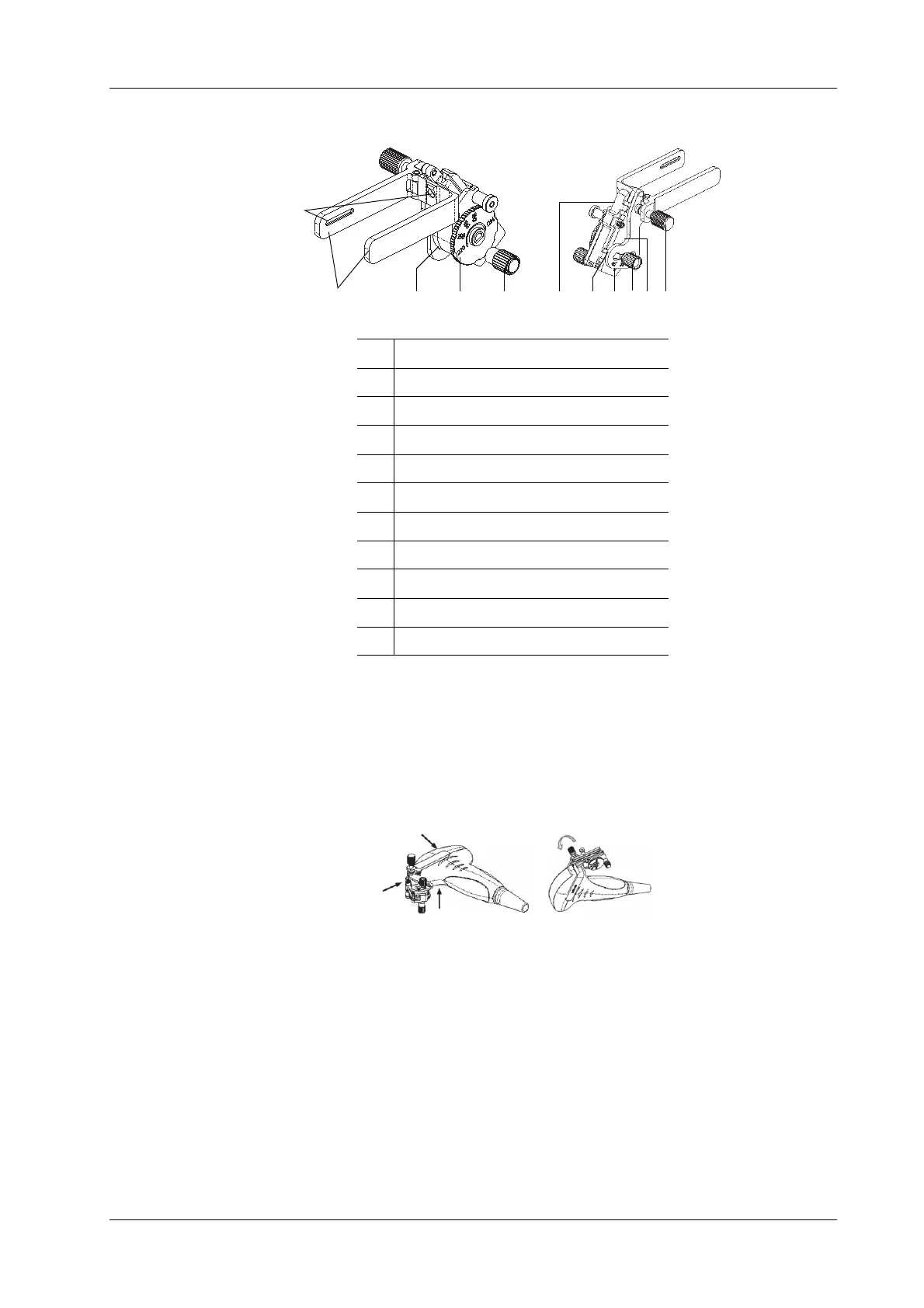

NGB-022 Metal-needle detachable needle-guided bracket
Perform the following procedure:
1. Install the needle-guided bracket:
a. Put on the sterile probe sheath.
b. Hold the probe by one hand, select the proper needle-guided bracket, and hold it with the
other hand. Match the groove of the bracket with the tab of the probe. Amount the bracket
onto the probe.
c. Screw the pinch nut of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the probe.
2. Adjust the needle angle to the proper shift as required:
a. Loosen the angle pinch nut.
b. Adjust the angle block to the desired level.
c. Tighten the angle pinch nut.
3. Insert the biopsy needle:
1Groove
2Clamp
3 Needle type adjusting base
4 Needle type dial scale
5 Needle fixing nut
6 V-shaped cover
7 Angle adjusting base
8 Angle shift sign
9 Angle pinch nut
10 Angle block
11 Pinch nut
1
234567891011
