11 USE
11.1 CONNECTING/DISCONNECTING A PROBE
The probe is connected by aligning the color mark of the connector with the white point of the interface
1 or interface 2 socket.

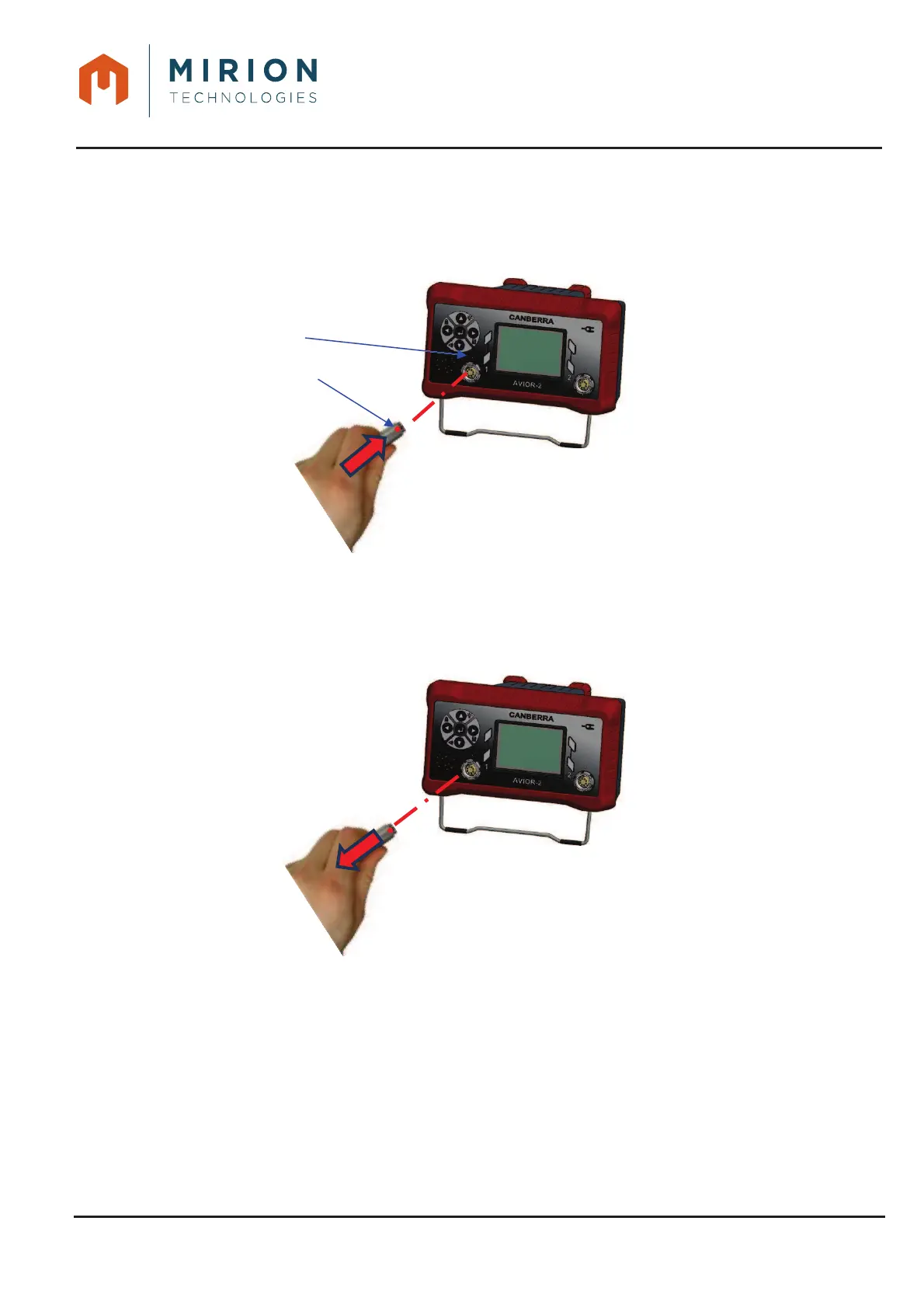

Connection of a probeFigure 5 :
The disconnection of a CSP probes is accomplished by pinching the cable connector between thumb
and forefinger and then pulling to unlock and disconnect.
Note: Nardeux probes do not have connector locks.
Disconnection of a probeFigure 6 :
White point
Color tag
