About SMB Controller
•
With interface cards that have more than 8 ports it is advisable to route the cabling via a fan-
out panel (FOP) (1 height unit).

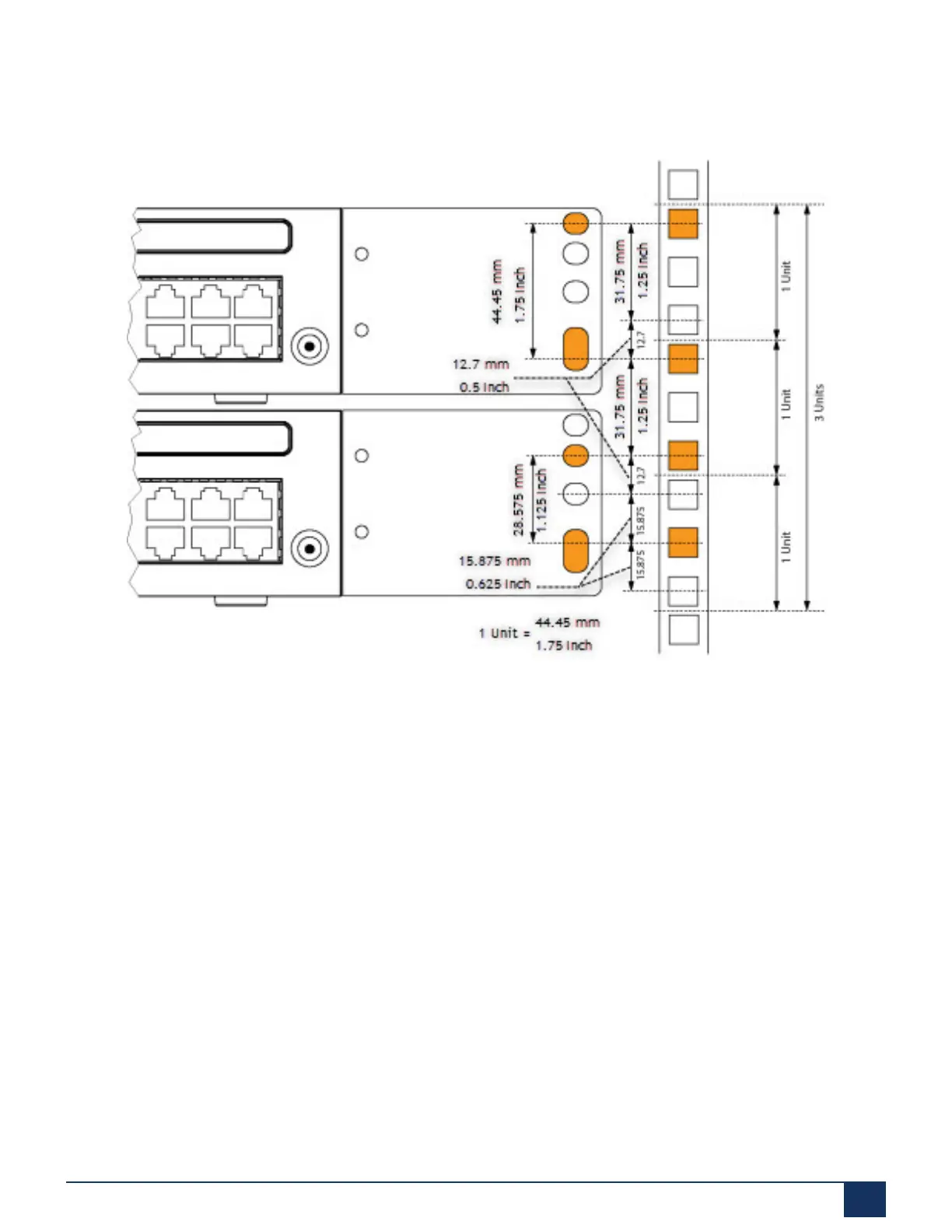

Figure 16: Placing two SMB Controllers above each other inside a 19" rack
2.4.4.6.1 Rack-mounting procedure
Materials required:
•
Rack-mounting kit
•
Screw set for wall/desktop installation
•
Screwdriver
To rack-mount a SMB Controller, proceed as follows:
1.
Pull off the screw covers on the left and right of the front panel.
2.
Secure the mounting plates to the SMB Controller using the M4 screws. Make sure the front
panel and the mounting plate are aligned.
3.
Shut down the SMB Controller (see Shut-down mode) and disconnect it from the power
supply.
Document Version 1.0
System Manual for Mitel SMB Controller 50
