MKS MF1 - Figure 3 Front View - Dimensions (4 VCR); Figure 4 Top View - Dimensions; Table 1 Total Length for Different Fittings

Chapter 3: Installation
20
25,4
12,7
Ø
1
4
,
3

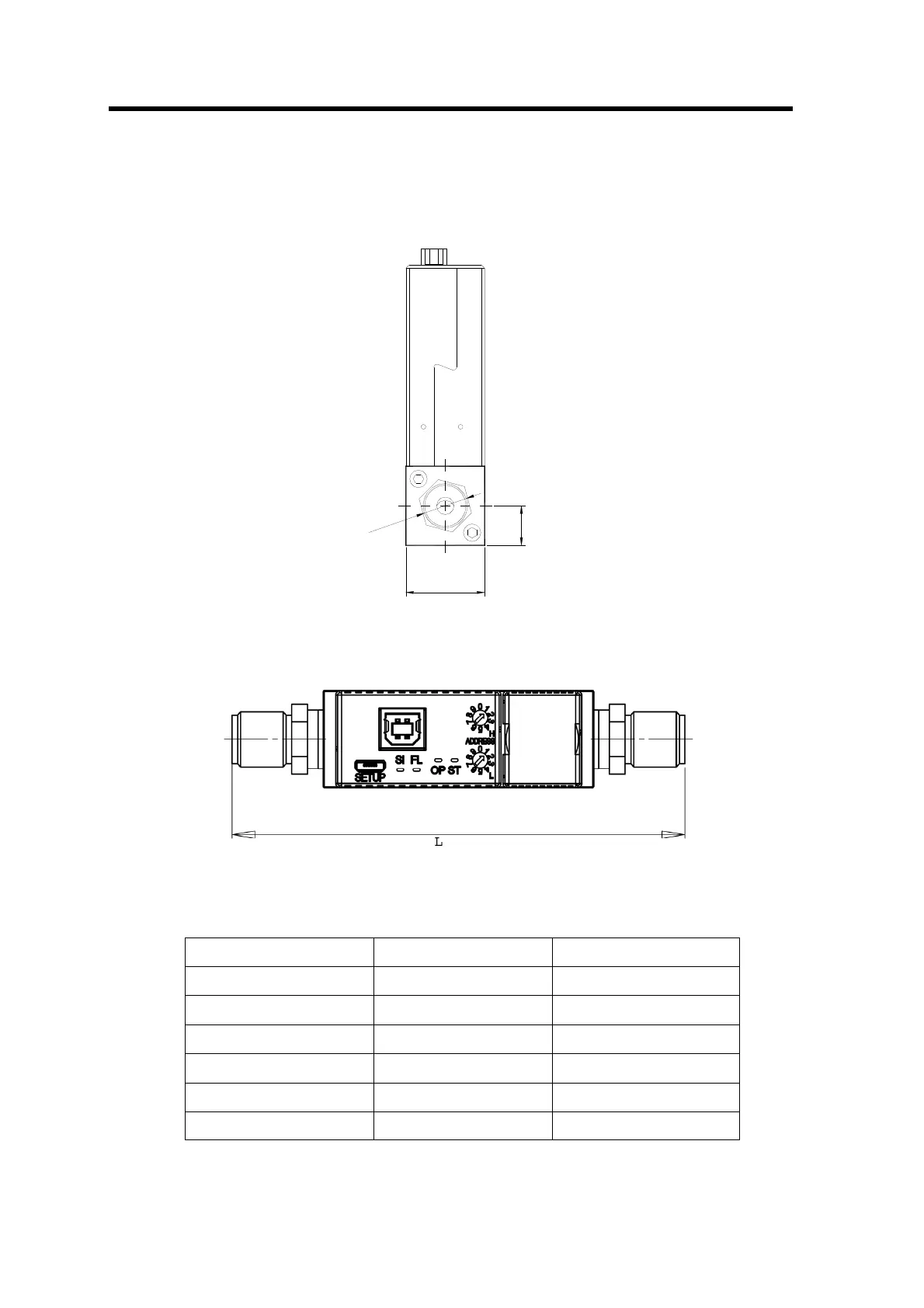

Figure 3 Front View – Dimensions (4 VCR)
Figure 4 Top View – Dimensions (flow from left to right)
Order Code Fittings (compatible) L in mm
MF1 _ ___ ___ R _ _ 0 4 VCR male
118.74 ± 1
MF1 _ ___ ___ S _ _ 0 1/4 “ Swagelok*
107.6 ± 1
MF1 _ ___ ___ G _ _ 0 4 VCO male
110.6 ± 1
MF1 _ ___ ___ D _ _ 0 DN 16 KF
118.73 ± 1
MF1 _ ___ ___ S _ _ 0 6 mm Swagelok*
107.6 ± 1
*) without nuts and ferrules
Table 1 Total length for different fittings
