MKS MF1 - Rs485 and Usb Interfaces; Installation; Pinout; Power Supply

Chapter 5: Process Interface
66

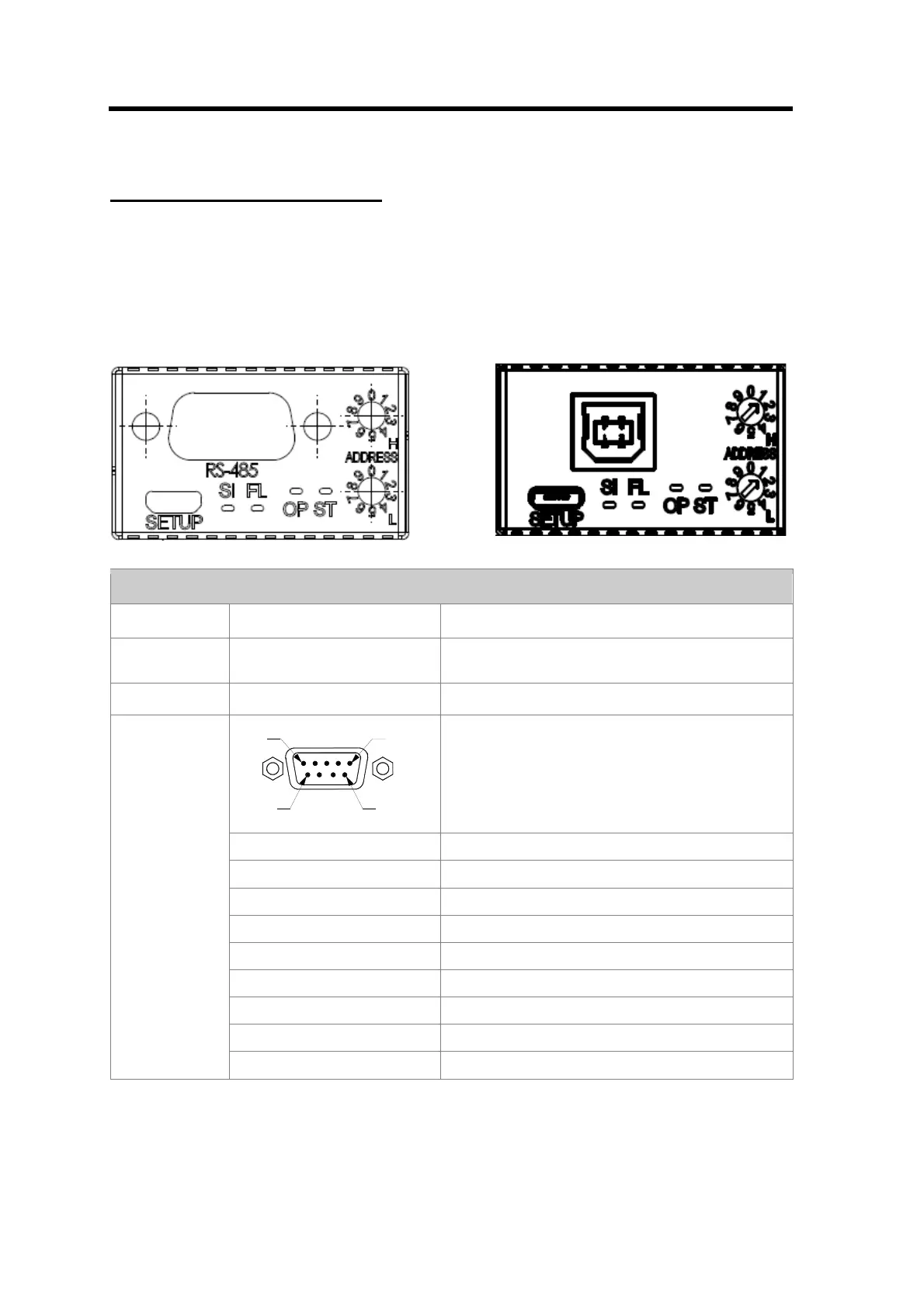

RS485 and USB Interfaces
Installation
Pinout
RS485 and USB Interface
Item Detail Description
SETUP - Mini USB connector, present for every interface
variant. Operates as MSD or CDC.
USB - USB Connector B
PIN 5
PIN 9
PIN 1
PIN 6
Sub D 9-poles, socket
Pin-1
Pin-2
Pin-3 A
Pin-4 RTS
Pin-5 GND
Pin-6
Pin-7
Pin-8 B
RS 485
Pin-9
Power supply
The MF1 has to be powered via the Phönix MC-Series connector below the Zero switch. Therefore
a mating connector is included in the delivery. For the correct power supply specification see the
technical specification in Appendix A.
