Motortech MIC5 User Manual

8 Settings via the MICT
Rev. 03/2019 79
Pickup trace

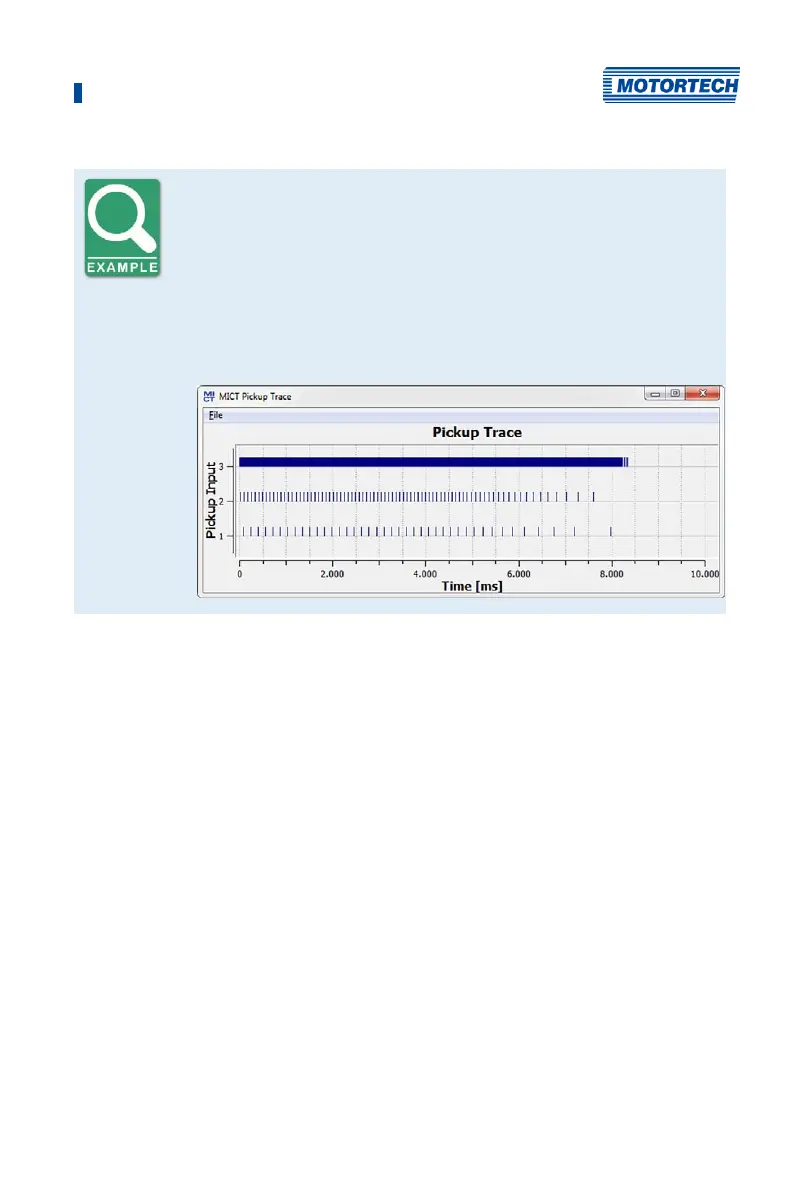

Example of a pickup trace for a configuration with three pickups:
– Pickup input 1 (cam):
Single event from the camshaft
– Pickup input 2 (reset):
Single event from the crankshaft
– Pickup input 3 (trigger):
Trigger disc of type N with 160 events from the crankshaft
Operation
The following options are available via the menu in the window:
– Open
Opens a previously saved pickup trace.
– Save as
Saves a pickup trace as a .putrace file.
– Close
Closes the pickup trace.
