8 Settings via the MICT
80 Rev. 03/2019

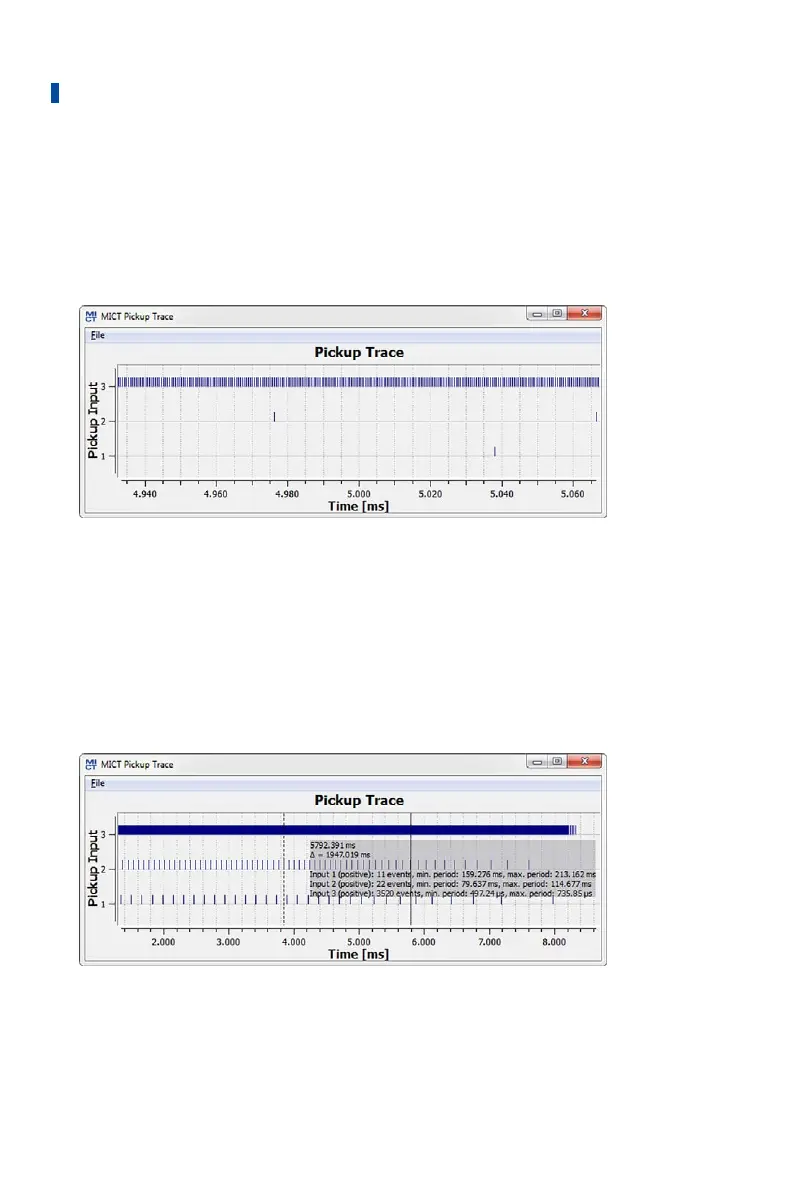

There are the following options for the display of the pickup signals:
– Zoom In/Out
Using the mouse scroll wheel you can zoom in and out of the displayed record range.
Alternatively you can also use the plus and minus keys on the keyboard. With the zoom
function, you can e.g. analyze the trigger signal more precisely (pickup input 3 in the
drawing).
– Move displayed range
With the right mouse button pressed you can move the displayed range along the time axis.
– Measuring
You can measure distances and the number of events in the displayed range by holding
down the left mouse button to highlight a section. You can find the following information in
the window:
– Position on the time axis
– Time difference () between the two selected points
– Number of events counted in the selected period
