13 Technical data
Maschinenfabrik Reinhausen 2014 163222/08 EN TAPCON® 240
AC-115 AC-230
Power consumption 0.16 A 0.08 A
Internal fuse 250 V; 3 A; 6.3 x 32 mm, "fast-acting" character-
istics
Table 55: Control voltage supply

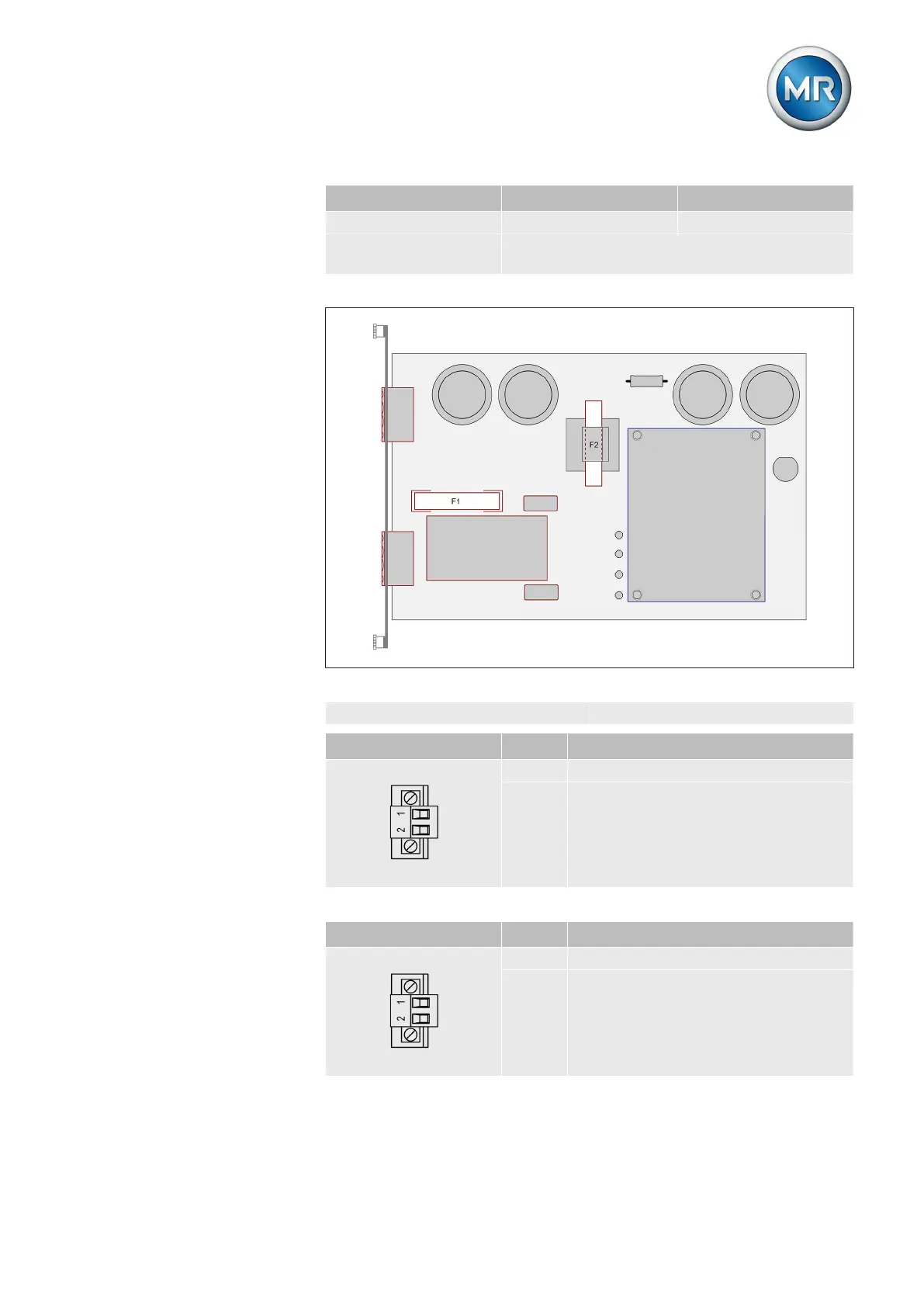

Figure 110: Internal fuses of AC-115 card and AC-230 card
F1 Fuse F2 Spare fuse
Interface Pin Description
1 L1
2 N
Table 56: Terminal X1
Interface Pin Description
1 +DC
2 -DC
Table 57: Terminal X2
