Displaying measured value memory
As an option, the device can be equipped with a long-term memory module.
You can display information about the memory in this window.
To display the measured value memory, proceed as follows:
► Press > Info > until the desired measurement parameter
is displayed.
ð MEASURED VALUE MEMORY
Displaying peak memory
This display shows the minimum and maximum voltage measured since the
last reset and the minimum and maximum on-load tap-changer tap positions.
All values recorded are stored with a time and date.
The minimum and maximum values continue to be stored in an internal
fixed value memory even in the event of power failure.

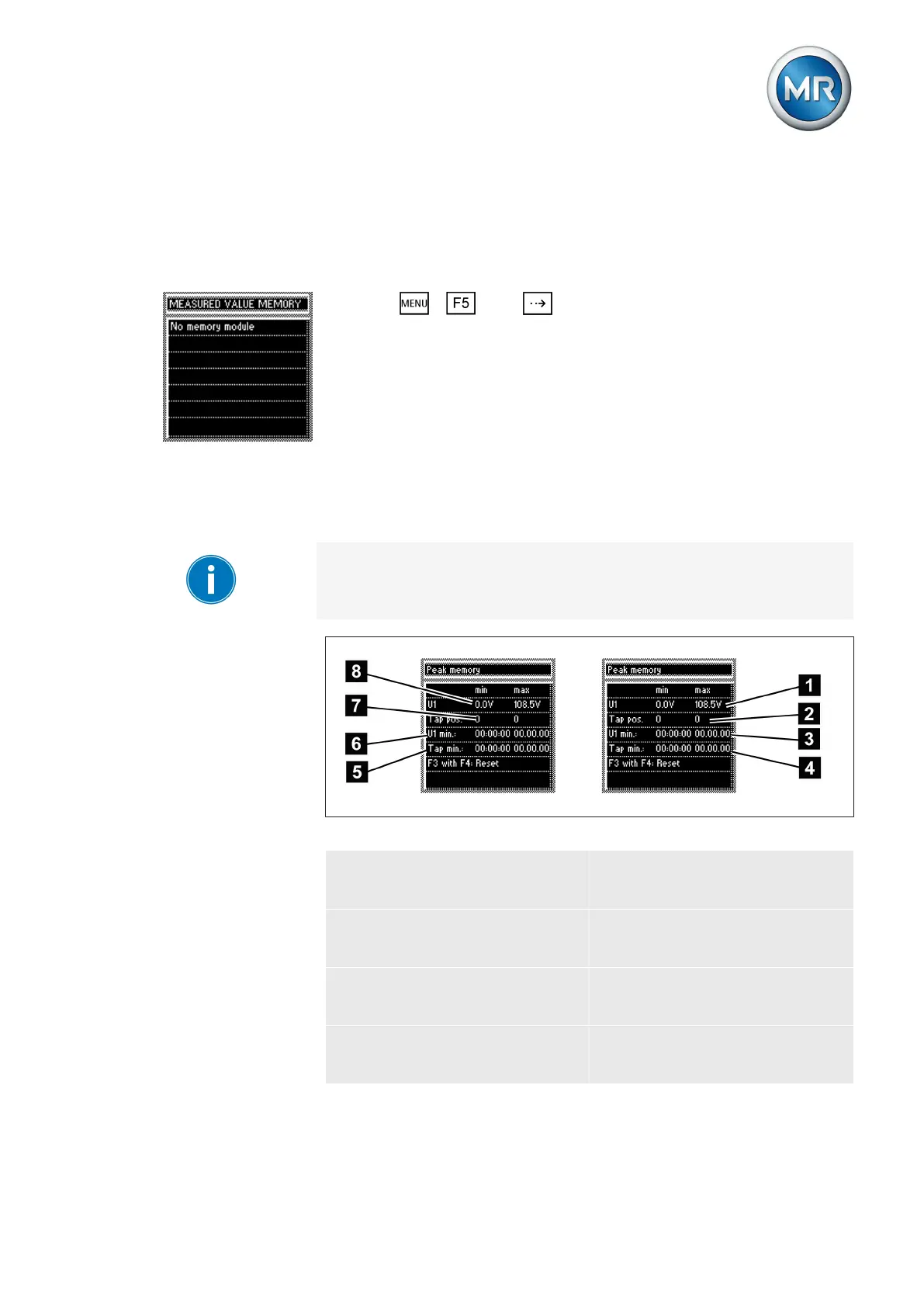

Figure 106: Peak memory
1 Maximum measured voltage
U1
5 Time (HH:MM:SS) and date
(DD.MM.YY) of minimum re-
corded tap position
2 Maximum on-load tap-chang-
er tap position
6 Time (HH:MM:SS) and date
(DD.MM.YY) of minimum
measured voltage U1
3 Time (HH:MM:SS) and date
(DD.MM.YY) of maximum
measured voltage U1
7 Minimum on-load tap-changer
tap position
4 Time (HH:MM:SS) and date
(DD.MM.YY) of maximum re-
corded tap position
8 Minimum measured voltage
U1
To display the peak memory, proceed as follows:
