MR tapcon 240 - Analog inputs and outputs; Control voltage supply (optional)

13 Technical data
Maschinenfabrik Reinhausen 2014162 222/08 ENTAPCON® 240

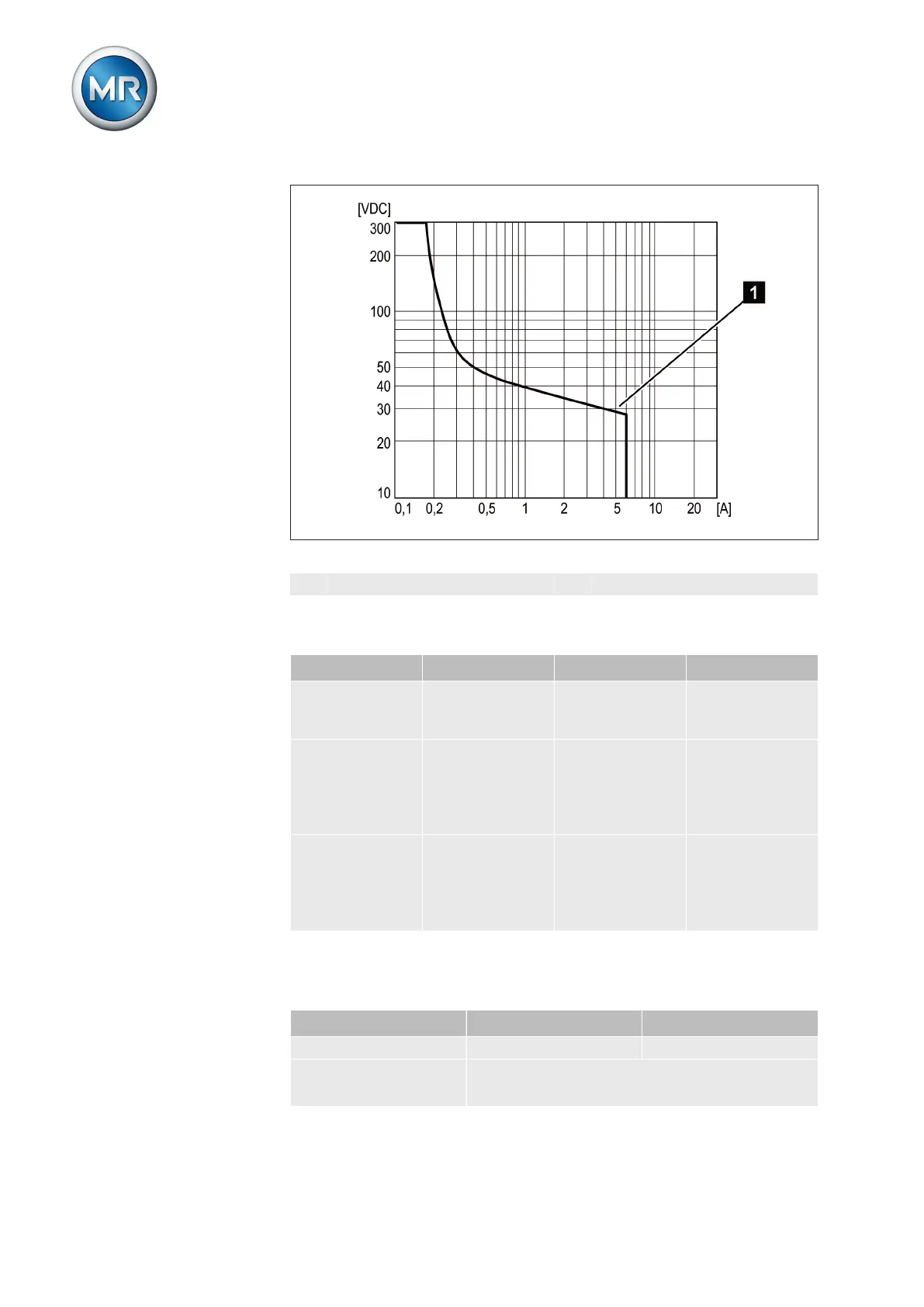

Figure 109: Maximum contact loadability of outputs with direct current
1 Ohmic load
Analog inputs and outputs
AD AD8 AN
Channels 2 inputs 8 inputs 2 outputs or 4
outputs (AN +
AN1)
Input signals
(depending on
configuration)
0...±20mA
0...±10mA
0...±10V
50...2000 ohms
4...20 mA -
Output signals
(depending on
configuration)
- - 0...±20mA
0...±10mA
0...±1mA
0...±10V
Table 54: Analog inputs and outputs (optional)
Control voltage supply (optional)
AC-115 AC-230
Input 115 V AC, 50/60 Hz 230 V AC, 50/60 Hz
Output 60 V DC
max. 0.2 A
13.5
13.6
