13 Technical data
Maschinenfabrik Reinhausen 2014 165222/08 EN TAPCON® 240

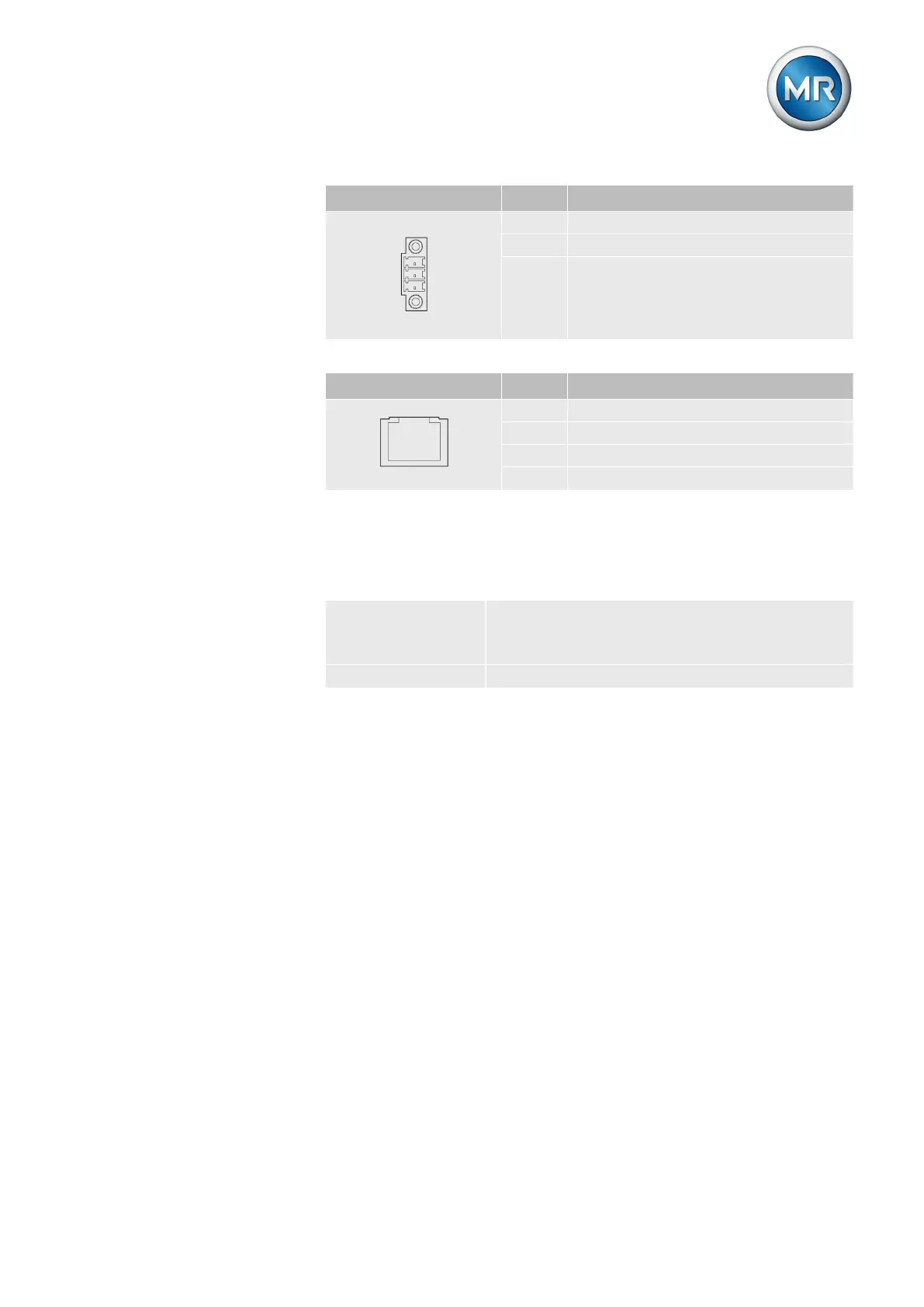

Interface Pin Description
1 GND (100 Ω ground resistance)
2 B (inverted)
3 A (non-inverted)
Table 61: Terminal X9 (RS485)
Interface Pin Description
1 TxD+
2 TxD-
3 RxD+
6 RxD-
Table 62: Terminal X7 (RJ45)
Dimensions and weight
Housing
(W x H x D)
19-inch plug-in housing in accordance with DIN
41494 Part 5
483 x 133 x 178 mm (19 x 5.2 x 7 in)
Weight 5.0 kg (11 lb)
Table 63: Dimensions and weight
