MR tapcon 240 - R&X compensation

7 Functions and settings
Maschinenfabrik Reinhausen 2014 89222/08 EN TAPCON® 240
R&X compensation
R&X compensation (LDC) requires exact cable data. Line voltage drops can
be compensated very accurately using LDC.
To set R&X compensation correctly, you need to calculate the ohmic and in-
ductive voltage drop in V with reference to the secondary side of the voltage
transformer. You also need to correctly set the transformer circuit used.

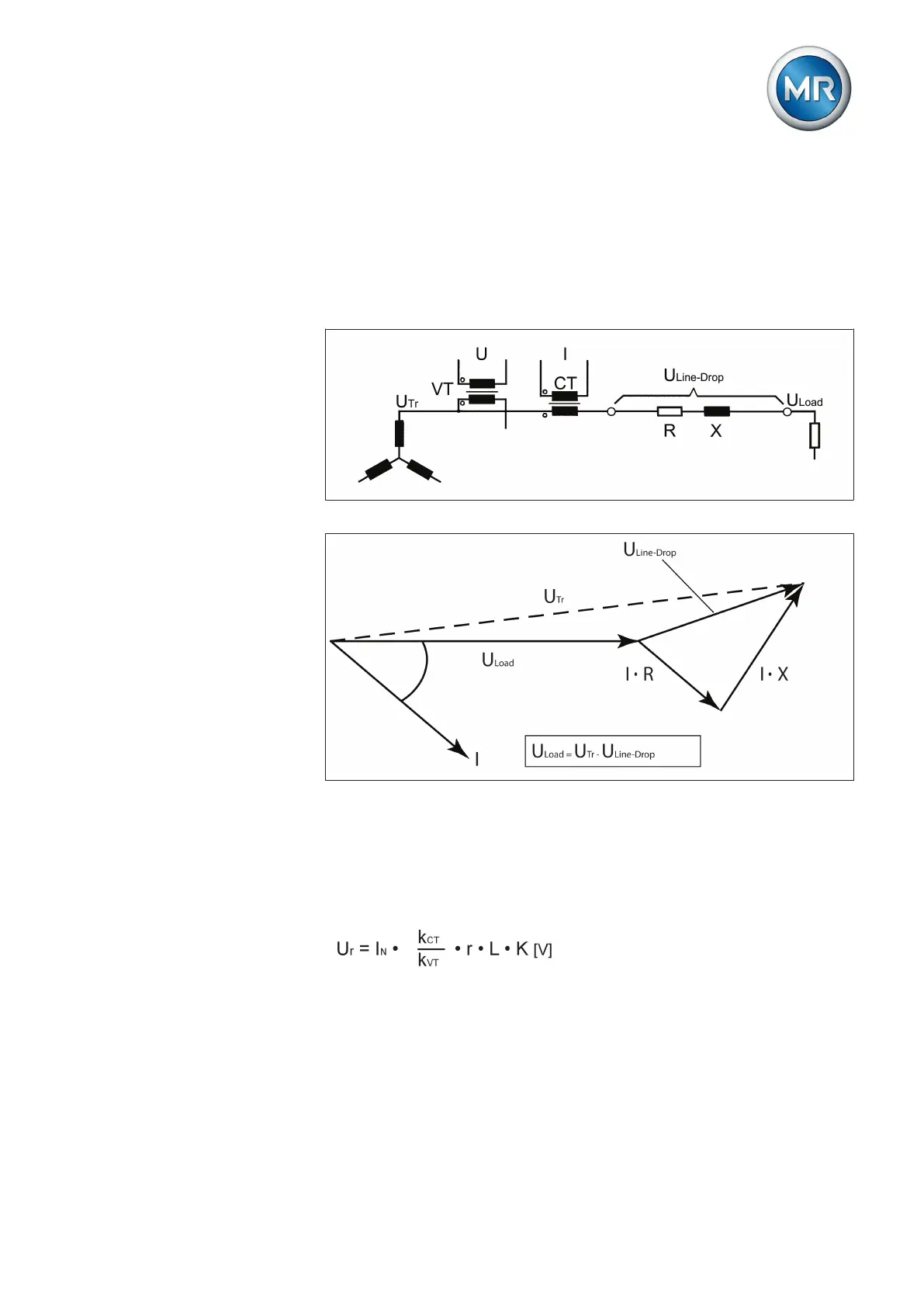

Figure 55: Equivalent circuit
Figure 56: Phasor diagram
You can calculate the ohmic and inductive voltage drop using the following
formulas. This voltage drop calculation relates to the relativized voltage on
the secondary side of the voltage transformer.
Formula for calculating the ohmic voltage drop:
7.6.1
