User’s Guide – Ultima cutting plotter
14 AP-75032, Rev 2.2, 20/04/07
2.3.2. Mounting cutter body to the stand.
Notes
Assemble the stand as described in the procedure enclosed in the stand box.

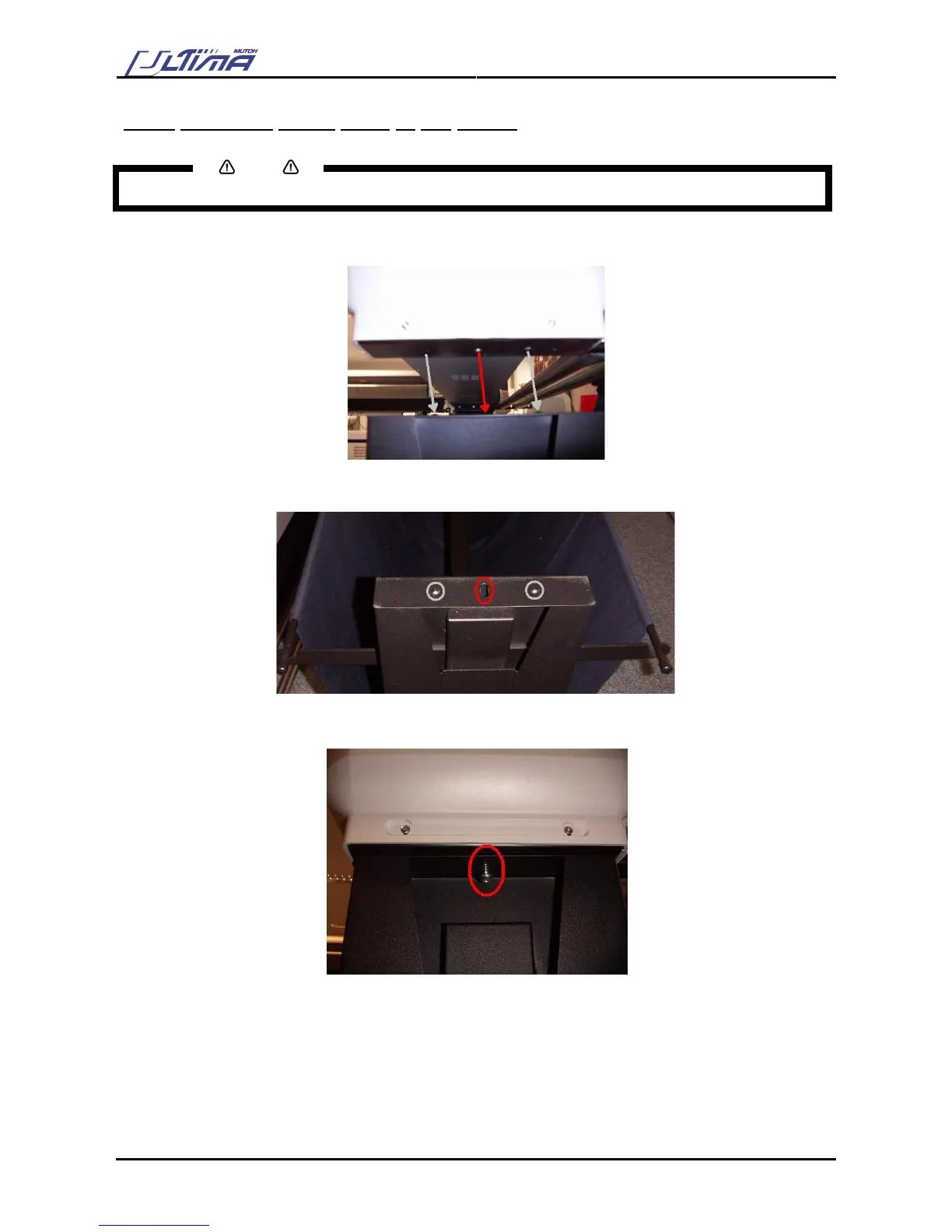

Step 1 : Position the body above the stand.
There are two positioning points on the stand and one screw hole.
Step 2 : Place the body on the stand and tighten with one screw at both sides.
