3.5. SPECIAL FUNCTIONS FOR QUALITY
3.5.1. EPOS offset fine-tune
This function is made to fine-tune the EPOS offset.
Please follow the steps below to perform a fine-tune
Step 1 : Install a knife.
Step 2 : Press the [TOOL] key and select ‘knife’.
Step 3 : Load media
Step 4 : Activate the “EPOS offset fine-tune” function by pressing the [TEST] + [CONTOURCUTTING]
button simultaneously. This function is only accurate for 1 job.
EPOS fine-tune
selected for
next job
press any key
Step 5 : Send contour job to the plotter.

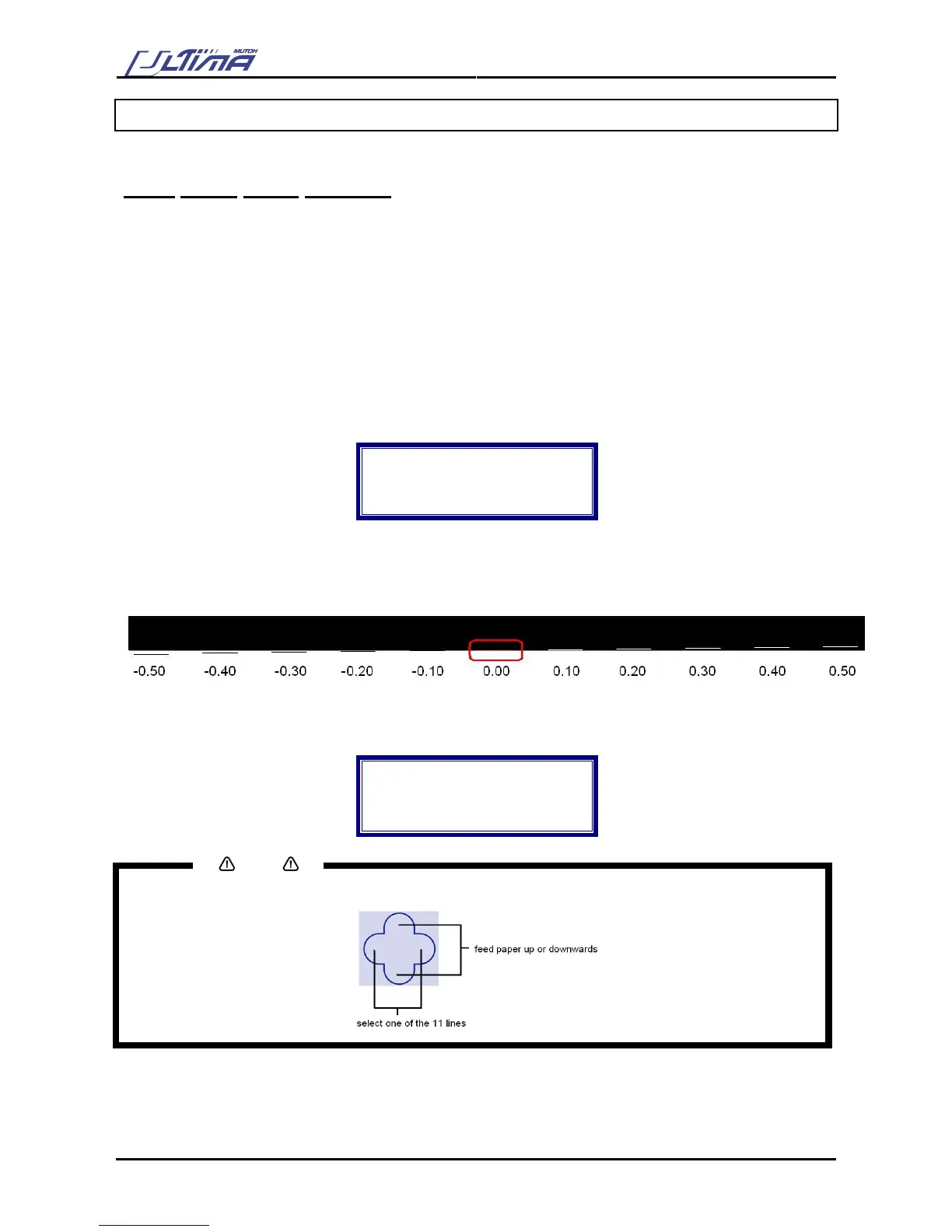

Step 6 : The cutter will start cutting 11 lines on the bottom of the box.
Step 7 : When pressing the [UP] or [DOWN] key, the laser goes to the next line. Following message is
displayed
Offset: 0.00
Enter = Select
▲ = Up
▼ = Down
Notes
You can also use the [ARROW] keys
Step 8 : Press the [ENTER] key when laser is above the line which lies on the bottom side of the box.
