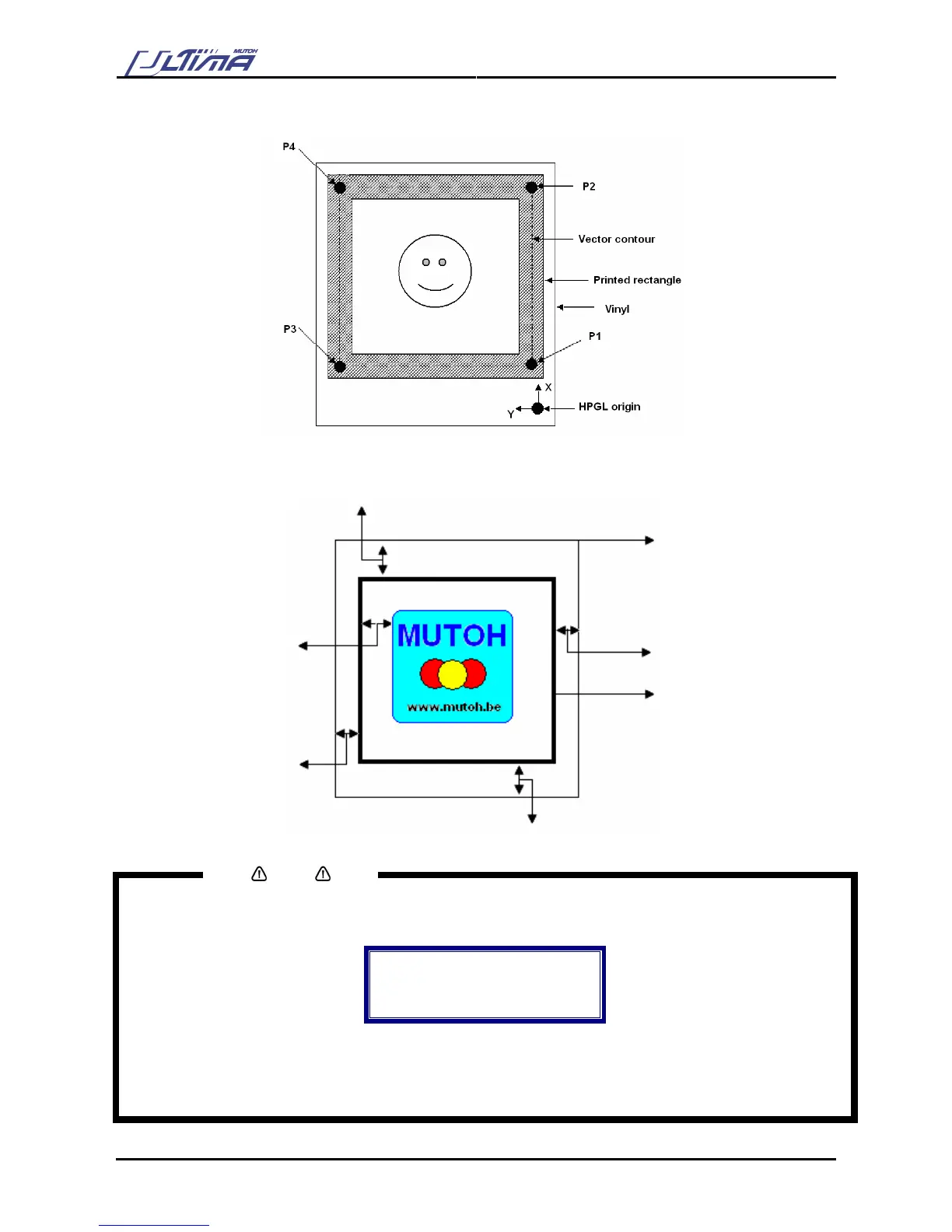

The square will be detected on the following points.
110 mm or more for a cut-sheet or for the roll end.
Between consecutive boxes: 30 mm – 250 mm
(recommended 65 mm)
5 mm white space
between bounding box
and drawing
Min. side margin of 10
mm.
VINYL
Min. side margin of 10
mm
Black bounding box:
Line thickness of 3
mm-30mm
Default value 5 mm
Minimum size of A4
(Portrait)
Maximum colour
contrast with media.
Min. front margin of 10 mm / max. 250 mm
Notes
When measuring the four points of the box and the cutter establishes a distortion (this means the box is not a
perfect rectangle due to print deformation, or not between the margins), the cutter will beep and shows
following message:
EPOS-warning
********************
Much print
distortion
The cutter will cut a little cross in the lower right corner to remind you and us to its bad print quality in case of
bad contour cutting; however it will continue its workflow after two seconds.
Please refer to next chapter “Print Deformation” for more details.
