User’s Guide – Ultima cutting plotter
86 AP-75032, Rev 2.2, 20/04/07

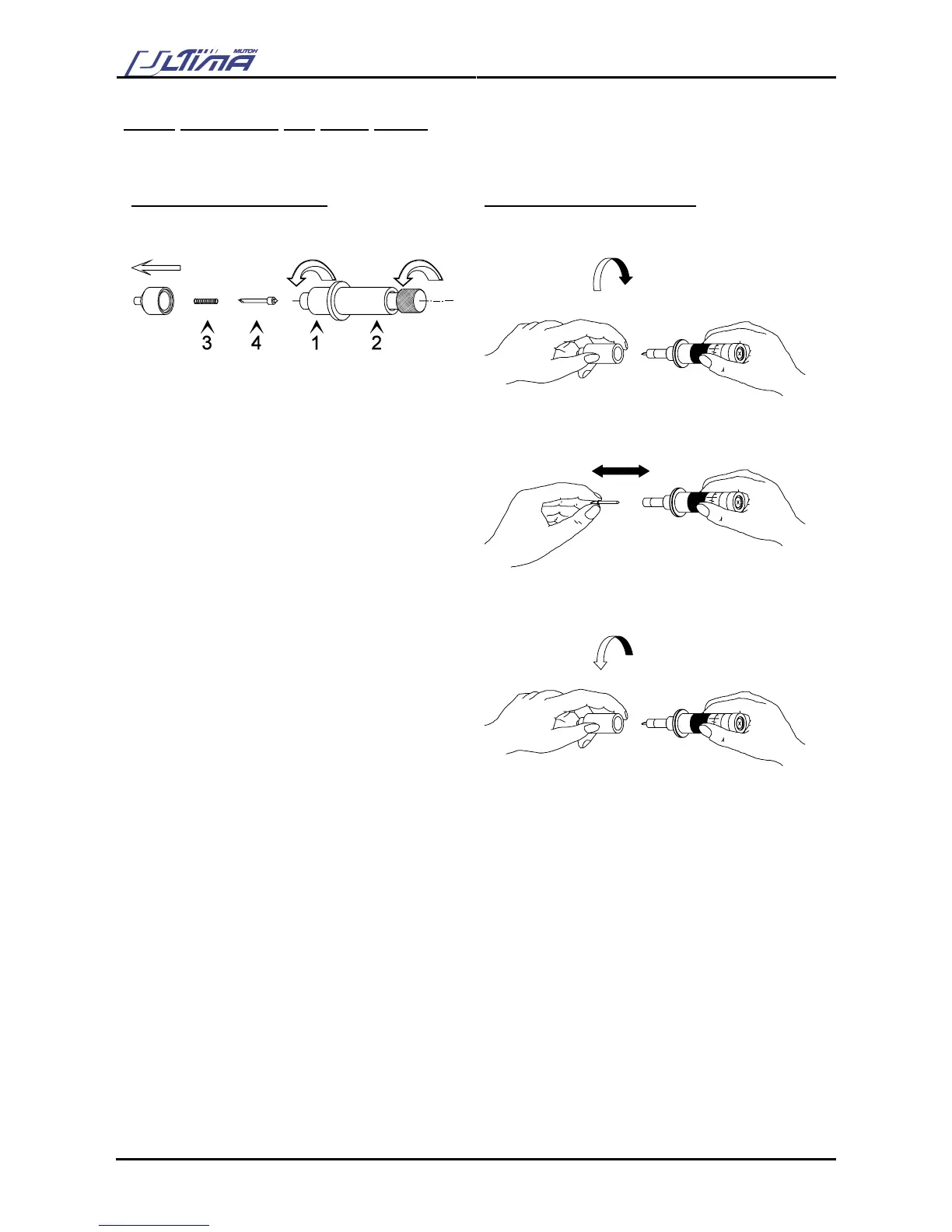

6.2.2. Replacing the knife blade
To replace a blade, please proceed as follows:
STANDARD KNIFE HOLDER
KNIFE HOLDER WITH NONIUS
Step 1: Hold the body (2) into one hand and
unscrew the base part (1)
Step 1: Take the body into one hand and remove the
base part
Step 2: Remove the spring (3) and the cutting
blade (4).
Step 2: Pull the old blade out of the holder and insert
a new one
Step 3: Slide the spring over the new cutting blade
Step 3: Place the base part on top of the holder
assembly and twist it tightly.
Step 4: Place the new blade with its spring into the
base part and screw the whole assembly onto the
body.
