User’s Guide ValueJet 1608 HS
Product overview
AP-75810 - Revision 2.0 21
2

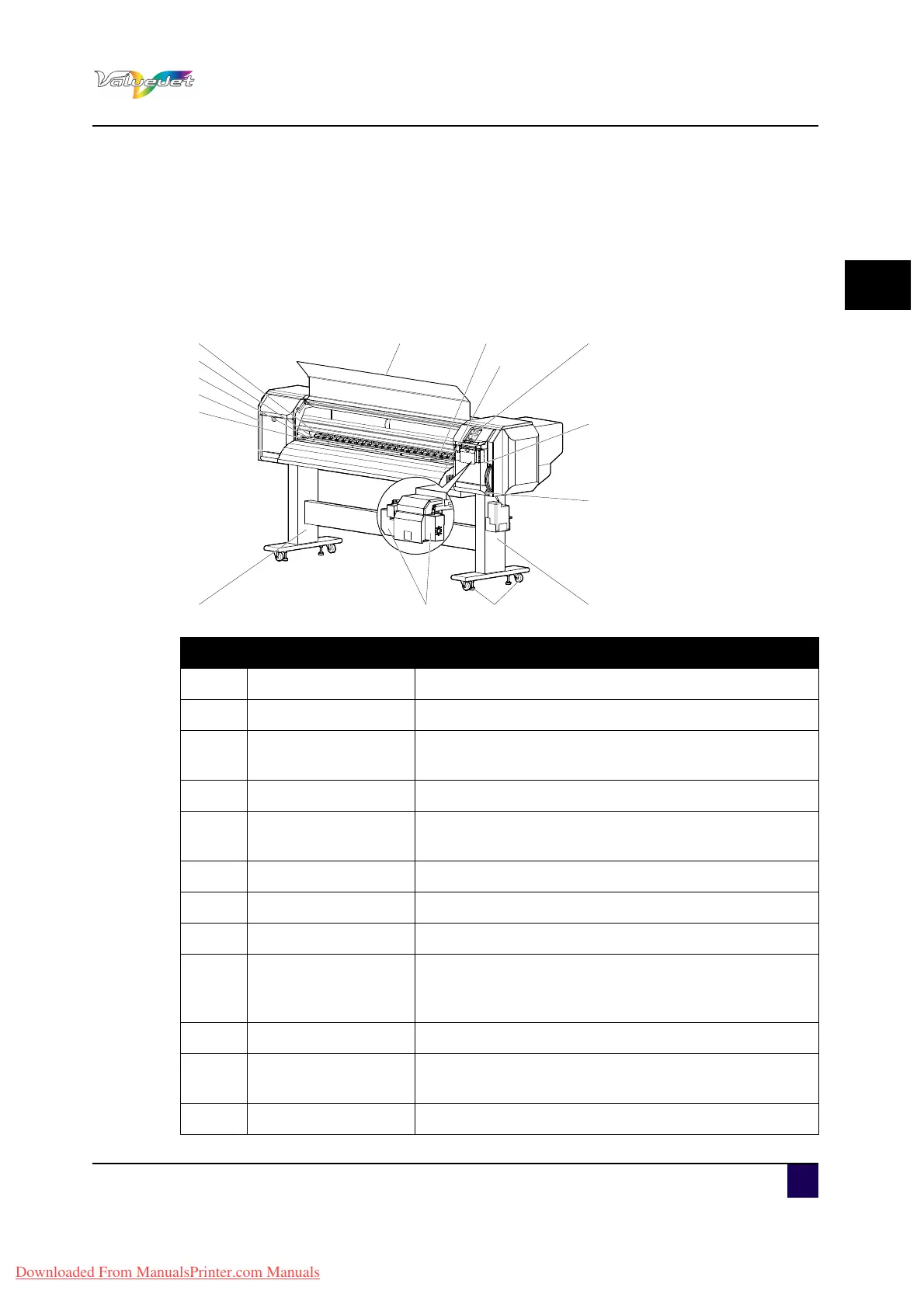

2.2 Names of parts and functions
This section explains the names and functions of each part.
2.2.1 Front section
11
1
10
2
113
9
4
7
8
12
4
9
6
5
N° Description Function
1 Media loading lever Used to release or fix the media
2 Operation panel Various functions are performed via the panel.
3 Front cover
Used to prevent that a user comes in contact with the
driving mechanism.
4 Stand To install the printer on a level floor.
5 Media guide
Used to feed media smoothly through the printer. The
media guide incorporates the heaters to dry ink.
6 Platen The heater is installed inside of the front cover.
7 Pressure rollers Used to hold the media down while printing.
8 Media cut groove Use this groove to manually cut the media.
9 Maintenance cover
Only open and close when cleaning the cleaning wiper
unit or when cleaning around the print head.
In all other cases, leave this cover closed.
10 Adjuster Used to install the printer horizontally
11 Media retainers
Attach media retainers to both sides of the media to
prevent warpage.
12 Air heater Blows hot air to accelerate the drying of the ink.
